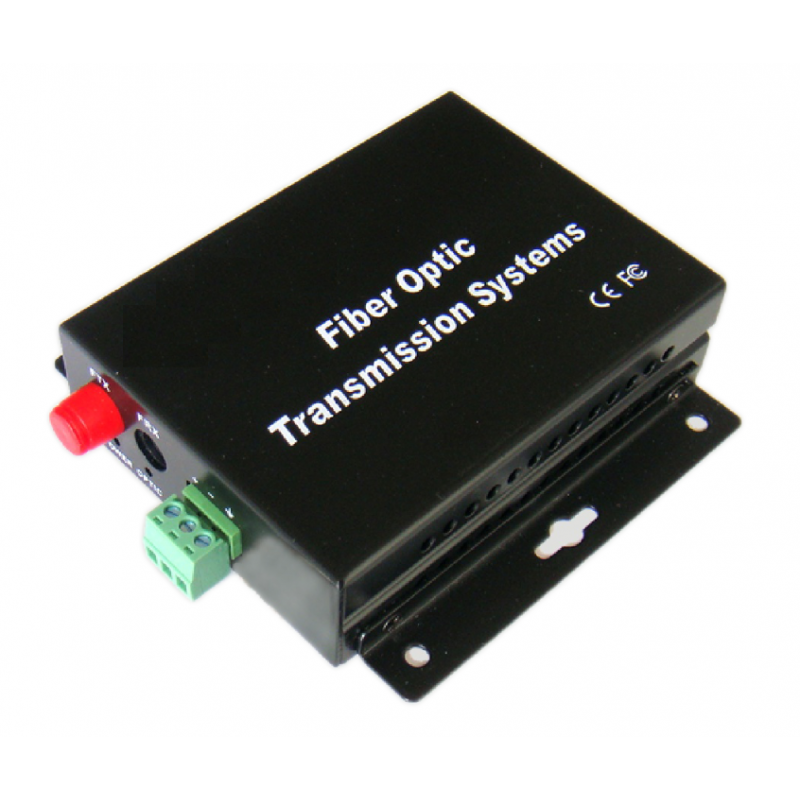

RS485 til Single Mode fiber sender modul, 1-Channel Duplex, op til 20km

Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485

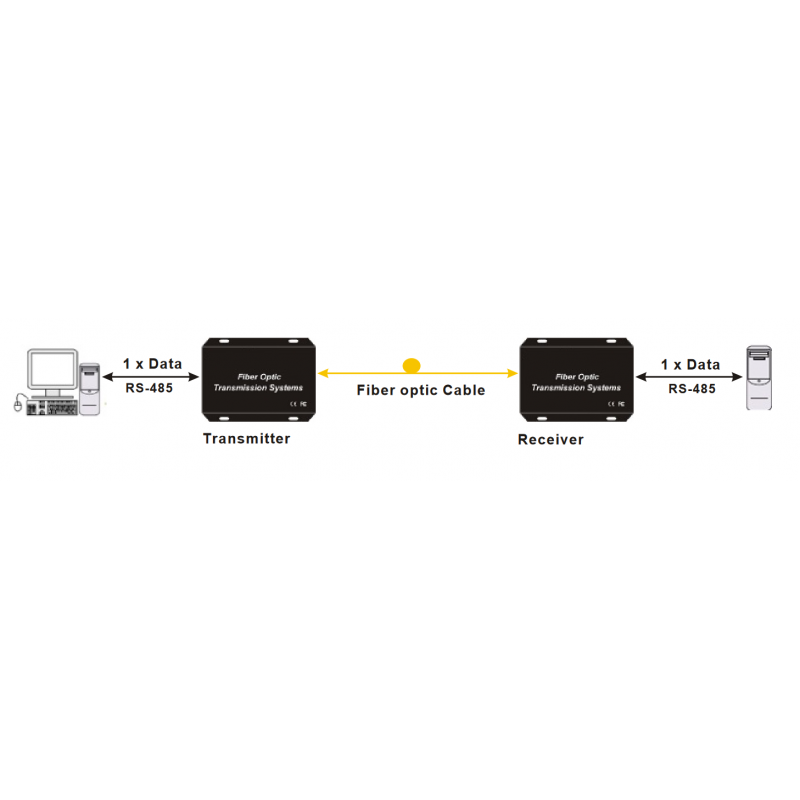

Point-to-Point or Daisy-Chain (M485-FIBER-SR is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate

M485-FIBER-ST
1,750.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Andet
Bit Error Rate: < 10E-9
Dimensioner

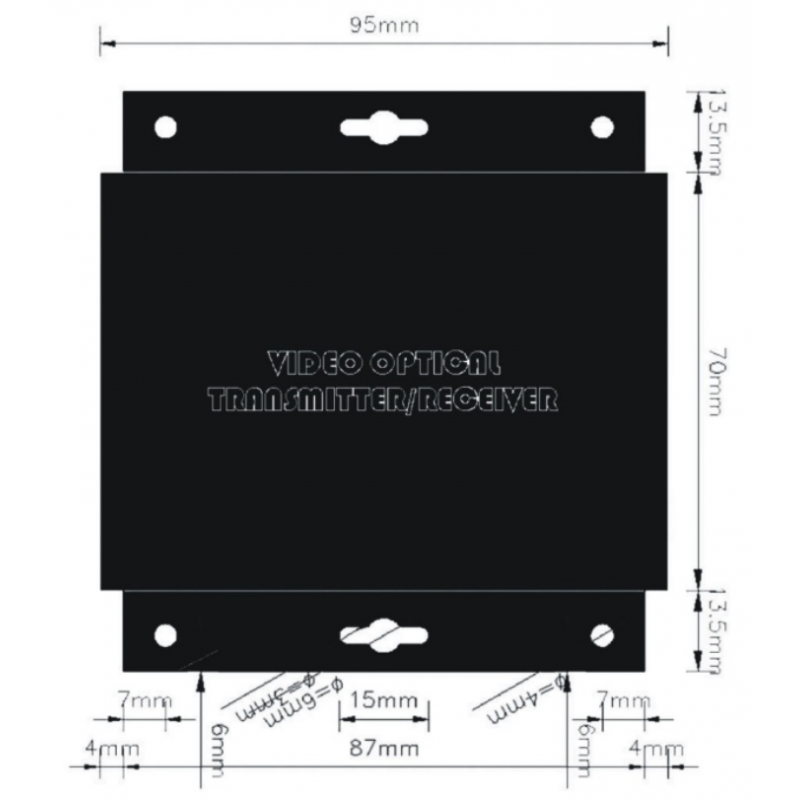

95mmx70mmx25mm
Driftstemperatur
-45 C~+75 C
Fiber
Single-Mode 1-Channel Duplex
Forsyning
DC 5V@2A
Hastighed
DC to 115.2Kbps
Montering
Stand alone or rack-mount
Rækkevidde
Up to 20km (40km and 60km is optional)
Serial Porte
RS485 Terminal Block
