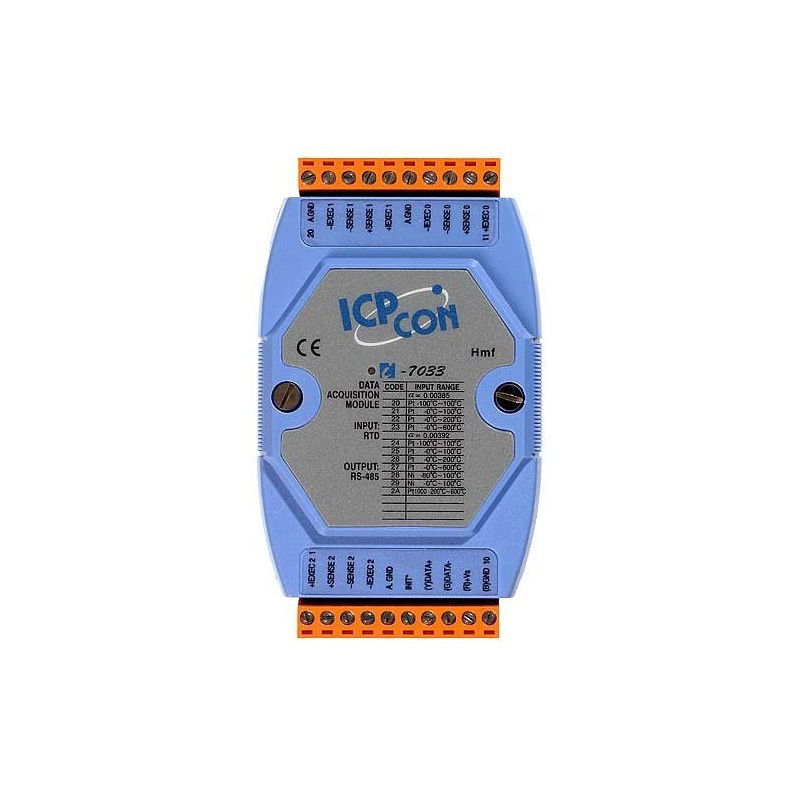

3 x temperature measurement with PT100, PT1000 sensor and nine RTD elements, 16bit resolution, RS485 bus. 10 - 30vdc.

Module for PT100 or PT1000 sensor with 4-, 3- or 2-wire
for nickel temperature sensor (Ni RTD)
16 bit resolution
15 Measurements per second (Total)
Supply voltage: 10 - 30vdc / 1 Watt
Master RS485 must establish bias voltage
Dim: 123 x 72 x 35 mm

M485-ADRTD3-I
2,828.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

3-channel RTD input module used for measuring temperatures via an RTD sensor and supports the PT100, NI120 and PT1000 sensors. The module allows 2/3 / 4 leader RTD connections and has open wire detection. In addition, the device also includes 3000 VDC intramodul insulation and supports the elimination of cable resistance for 3/4 conductor connections.

Forsyning
10 - 30 VDC, 0,7 W via klemrække
Indgang
3 kanaks PT100 eller Ni RTD til 2-, 3- eller 4-tråds følere
Indgangsimpedans
2 MΩ
Isolation
3000 VDC
Maks. hastighed
15 målinger pr. sek. totalt på alle 3 indgange
Måleområde
PT100: -100 ° – +100 ° C 0 ° – +100 Ni RTD: -80 ° – +100 ° C 0 ° – +100 ° C° C 0 ° – +200 ° C 0 ° – +600 ° C
Opløsning
16 bit, ±0,05 % præcision
Stabilitet
Nulpunktsdrift:…… Drift af følsomhed:… ±0,3 µV / °C ≈ ±0.01 °C / °C ±25 ppm / °C ≈ ±0.01 °C / °C
