125 Ohm resistance to current measurement. Convert 0-20mA loop to voltage for measuring module
125 Ω Shunt resistance, 1 pc. pr. Channel

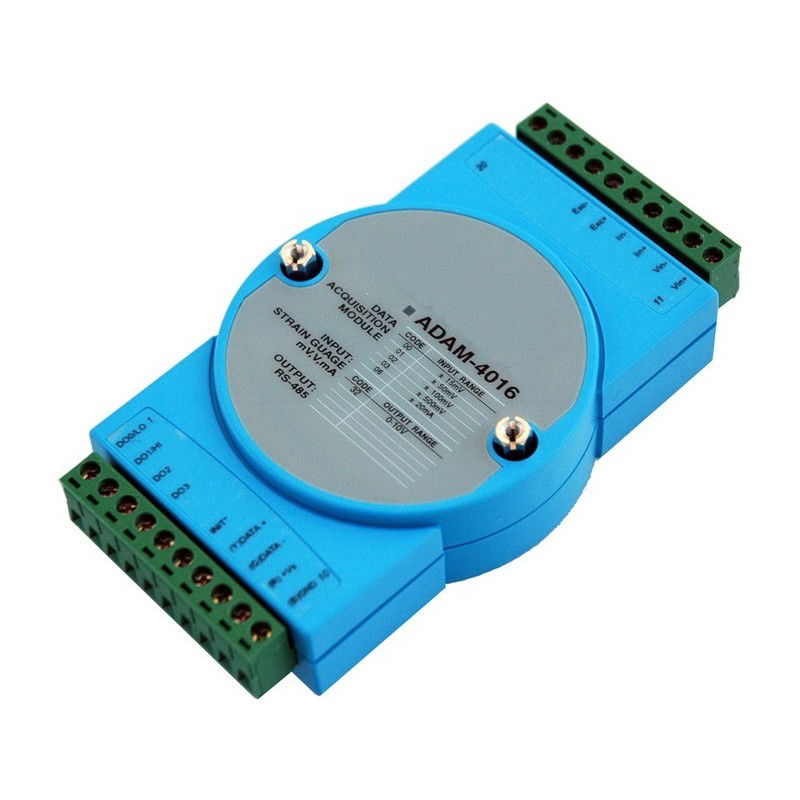

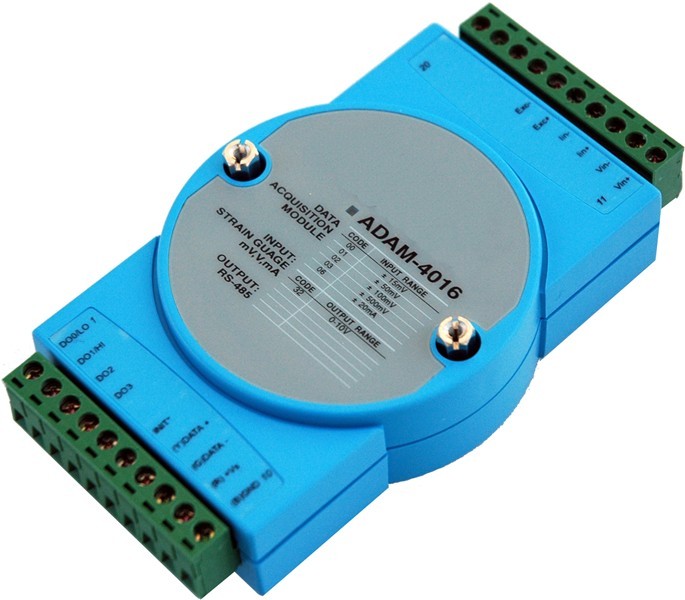

1 A/D indgang til vejecelle,
1 D/A udgang
4 digitale udgange
1 analog spændingsudgang, indgangsområde ±15 til ±500 mV
125 Ω Shunt resistance, 1 pc. pr. Channel
AC and DC voltage meter with true RMS
Resolution: 24 bits
0-264VAC 0-60Hz (3 phases)
L1, L2, L3, N
0-+/-370VDC
Input impedance greater than 2.4Mohm
Modbus RTU (2-wire RS485)
Built-in RS485 termination (120 ohms)
Up to 63 units per RS485 Bus
LED for communication status
Response time: less than 50mS
Temperature: -20 - +60°C
Supply voltage: 5 - 28VDC
Dimensions: 86 x 59 x 35 mm
20 channel analog input module for RS485 Bus
16bit resolution
20 Single Ended inputs (common frame) - Only for Volt
10 differential entrances for volts about power
10 measurements per second (Total )
Jumper Setting in the module
Supply voltage: 10 - 30vdc / 1.3 watts
Dim: 123 x 72 x 35 mm
DIN bracket
8 channel analog input module for RS485 Bus
16bit resolution
10 measurements per second (total)
for current measurement - shunt with 125 ohm resistance
Supply voltage: 10 - 30vdc / 1.3 watt
Dim: 123 x 72 x 35 mm
with your bracket
RS-485 Interface
DCON Modbus/RTU Protocol
8 x Analog Inputs
4 x Relay Outputs
DIN rail / wall mount
Temperature: -25 to +75°C
