Splitter, fra 1 til 3 Mini DisplayPort enheder

AVE-304TR & nbsp;
4 Port VGA Over CatX Transceiver
4 Port AV Receiver
AV Input: RJ45 x 1
AV Output: RJ45 x 4, VGA x 1, 3.5mm jack x 1
LED: 2 Colored LED
Video Quality: Maximum VGA Resolution & distance: 2048 x 1536 at 300m

Display of 4 screens assembled on one screen
More image combinations
Remote control
4 x HDMI inputs
1 x HDMI output 1080p
PIP and POP functions
hot-Preset keys, IR remote
Can be controlled from the RS232, Telnet and push buttons on the front

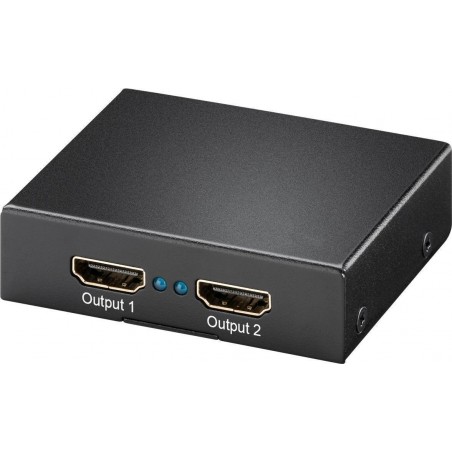

2 port HDMI splitter
1 x HDMI input
2 x HDMI outputs
1980x1200, HD, 1080p
powered by USB port
DC connector: 5.5 / 2.1
Dimensions: 70 x 60.2 x 20 mm (L x W x H) VI: 127g

2 port VGA video splitter
Same image on 2 VGA monitors
1 x VGA DB15 HD female input
2 x VGA DB15 HD female output
The one VGA output is EDID (DDC2)
Supply voltage 5VDC - USB cable included
Optional additional purchase DC5V/2A-RQ
Resolution up to 1920 x 1440 points, 60Hz
Bandwidth: 250 MHz
Active splitter means distance to VGA monitor up to 50 meters
Use good quality VGA cables - K-DB15HDM-Mxx from DANBIT

Copy a DP video input to 4 DisplayPort outputs
DisplayPort Up to 4K 60Hz, QHD (2560x1440) and FHD (1920 x 1080)
Output Port Support DP ++ (Dual-mode DisplayPort)
DP ++ can broadcast HDMI signals using passive adapter
Automatic EDID configuration
Incorporate EDID and HDCP handling procedures for continuous video output
support over 100 solutions
HDCP 1.4 compatible
DP 1.3
Dim: 108 x 87 x 20 mm

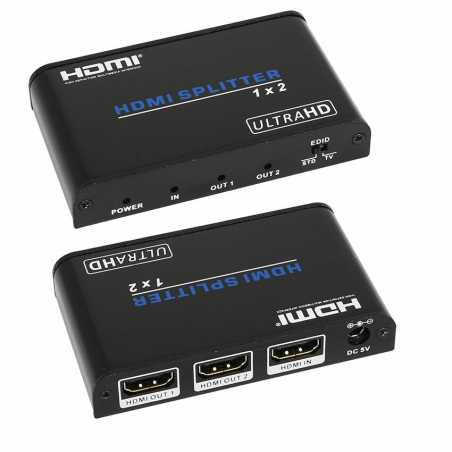

The same picture on 2 HDMI screens in 4K resolution.
1 x HDMI female - input.
2 x HDMI female - output.
HDMI 2.0, HDCP 2.2, EDID
Supports 4K Ultra HD @ 60 Hz.
Supports 3D.
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.
Supply voltage: 5VDC (adapter included).
Use good quality K-HDM-HDMxx from Danbit.

The same picture on 8 VGA monitors
Copies monitor's EDID information to port 1
1 x VGA male - input to 8 x VGA female - output
Resolution up to 1920 x 1440 points
active splitter means that the distance to the VGA monitor up to 65 meters
Use good quality VGA cables - K-DB15HDM-Mxx from Danbit

The same picture on 16 VGA monitors
1 x VGA male - input
16 x VGA female - output
Resolution up to 1920 x 1440 points
Active splitter means that the distance to the VGA monitor up to 65 meters
Use good quality VGA cables - K-DB15HDM-Mxx from DANBIT

Same picture on 4 DVI-D monitors
5 x DVI-D female - Single Link
1 x DVI-D female input
4 x DVI-D female outputs
Resolution up to 1920 x 1200 pixels
Distance with DVI-D cable to DVI monitor up to 10 meters
Use good quality DVI-D cables - K-DVIM-M-SLACxx from DANBIT

The same picture on 4 VGA monitors
1 x VGA female - input
4 x VGA female - Output
Resolution Up to 1920 x 1440 Points
Active Splitter means that distance to VGA screen up to 30 meters
Use good quality VGA cables - K-DB15HDM-MXX from Danbit

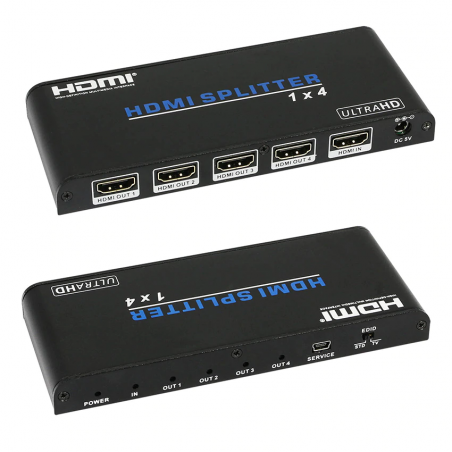

The same picture on 4 HDMI screens in 4K resolution.
1 x HDMI female - input.
4 x HDMI female - output.
HDMI 2.0, HDCP 2.2, EDID
Supports 4K Ultra HD @ 60 Hz.
Supports 3D.
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.
Supply voltage: 5VDC (adapter included).
Use good quality K-HDM-HDMxx from Danbit.

DVI digital splitter with 2 DVI digital outputs
same image on 2 DVI-D monitors
Input: 1 x DVI-D Female
Output: 2 x DVI-D Female
Support Dual Link DVI-D singnal transmission, resolution 640x480@60Hz to 3840x2160@30Hz, Compatible with HDMI 1080P
Support Dual Link DVI-D single transmission
Easy installation!
Max 10 meter cables (good quality)
Bandwidth 340MHz
If resolution is higher than 1920x1080@60Hz, there have to be used DUAL LINK DVI-D cables.
Use good quality DVI-D cables - K-DVIM-M-SLACXX From Danbit
Note !! At DVI-D to VGA on the output, it requires an active converter!
179x66x28mm
DC input 5~12Vdc, 0.8A

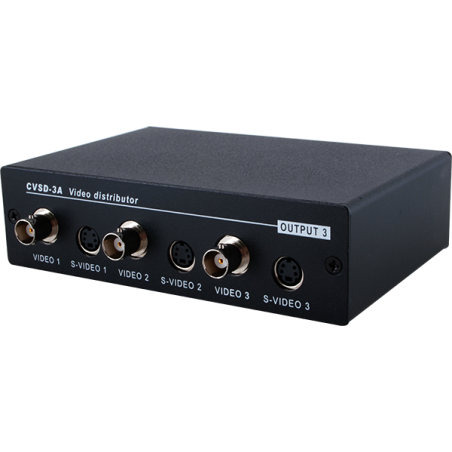

Active Video Benefits with 3 BNC Outputs
No Interference
1 x BNC, S-Video Input
3 x BNC, S-Video Output
Stereo Audio: with phono, RCA connector < / p>

4 Port SDI multimedia splitter
same image on the four monitors up to 100 meters
Compatible with SD-SDI, HD-SDI and 3D SDI to 5 x BNC female
1 x BNC - SDI input to 4 x BNC - SDI output
SD 525i and 625i
HD 720p 24/25/30/50/60Hz, HD 1080i 50/60Hz
HD 1080p 24/25/30/50/60Hz
Supply voltage: 5VDC PSU included
Dimensions: 130 x 77 x 24 mm

4K UHD 2 port DisplayPort splitter
same image on the two DisplayPort outputs
Resolution: 4K UHD @ 30Hz (3840x2160)
Supports DP 1.2
DP MST (Multi-Stream Transport) mode (Span function)
EDID auto configuration
supplied with 5VDC from UDB port (USB A male cable included)
cable length: 13 cm

4K UHD 2 ports DisplayPort splitter
Same image on 2 different monitors
Resolution: 4K UHD @ 60Hz (3840x2160), QHD (2560x1440) & FHD (1920 x 1080)
Supports DHMI 1.4, HDCP 1.4, DP 1.3
DP MST mode (Span function)
EDID auto configuration
Digital video & nbsp; without attenuation
Supplied via DC 5V mini USB)
Included 1 x DP cable male-he 1.8m

From 1 SDI port to 3 SDI outputs
Same picture on the 4 monitors
Compatible with SD-SDI, HD-SDI and 3D-SDI
5 x BNC female
1 x BNC - SDI input
4 x BNC - SDI output
Input: up to 1920 x 1080 points
Power supply included 5VDC / 2.6A

From 1 Mini DisplayPort to 3 outputs with VGA, HDMI and DisplayPort
Same picture on the 3 different monitors
Input: up to 2560 x 1600 dots
Power supply retrieved from Mini DisplayPort connector
Cable from DP to Mini DP included
