DANBIT has a large selection of screens and sells everything from 6 "to large screens for office use, medical, industrial use, etc.
General info about 4: 3 or 5: 4 screen format:
Often you want a 4: 3 TFT led screen for older solutions, where the graphics are not for wide format.
But if you want a resolution that is 1280 x 1024 then it is a 5: 4 format screen you need.
DANBIT has a large selection of screens and sells everything from 6 "to large screens for office use, medical, industrial use, etc.
Steeel VESA mount
VESA: 75 x 75 mm, 100 x 100 mm (on special orders 200 x 200mm)
Material SUS316 Stainless Steel
Tilt: 15 degrees Up and Down, Left and Right
Weight Capacity 50 Kgs
Suitable for Outdoor Mounting
Product Dimensions 140 (W) x 143.4 (H) x 101.5 (D) mm
Product Weight 1.5 Kgs
27" TFT
1920x1080@60Hz FULL HD
16:9
2500 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
27" TFT
1920x1080@60Hz FULL HD
16:9
2000 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional: DC9-36V / AC110-230V)
CE, ROHS
27" TFT
1920x1080@60Hz FULL HD
16:9
1500 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
32" TFT
1920x1080@60Hz FULL HD
16:9
2500 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
32" TFT
1920x1080@60Hz FULL HD
16:9
2000 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
32" TFT
1920x1080@60Hz FULL HD
16:9
1500 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
15" TFT 1024x768@60Hz
4:3 aspect ratio
PCAP Touch (optional Resistive touch), USB
700 nits
Robust, reliable and good performance
6-sided IP66 tight
VGA and HDMI inputs
Optical bonding (Optical Bonding), UV protection
SS 316 steel housing (suitable for food industry)
VESA Mount 100 mm
Input voltage:9 - 36VDC
12VDC power supply included
Optional 110-230VAC built-in power supply
Cables with waterproof connectors included
Temperature: -10 - +60°C
27" Full HD industrial touch monitor with 1000 nits brightness, IP65 front protection, 10-point capacitive touch, and robust metal housing. Ideal for outdoor kiosks, marine, manufacturing, and control room applications.
Modularize mechanical design provides flexible product configuration and easy maintenance
Touch screen for interactive application
Available with auto-brightness sensor offers application in day and night
VGA connector (on request AV,SV,AV-Looping)
Complete custom design/solution for OEM customers
Glass Surface
Black Anti-Glare, low reflection coating
Aspect Ratio4 : 3 Size17"
Active Area337.92(H) x 270.34(V) mm
Pixel Pitch0.264(H) x 0.264(V) mm
Native Resolution1280x1024
Colors16.7 M
Bright.(typ)1000Contrast800 : 1Response Time≤ 5 ms
Viewing Angle (H / V)170 / 160
LED backlight, Long life, 35,000 hrs (typ)
0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
8.4" TFT display
With optical bonding.
4:3
VGA, DVI-D, HDMI
Resolution: 1024x768
Contrast 1400:1
High brightness: 1600 cd/m² nits Sunlight readable
Wide viewing angle: 176°(H)/176°(V)
LED backlight
75 x 75 mm VESA
204.7 x 154.2 x 46.3 mm
Temperature range (-30 ˚C ~ 80 ˚C)
Backlight MTBF: 100,000 hours
DC 12V

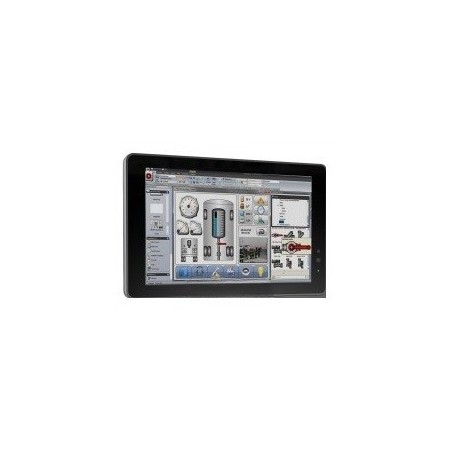

10.1” LCD with 1920x1200 resolution
380 Nits
Capacitive touch function for precision
16:10 aspect ratio for optimal viewing
170° viewing angle for better accessibility
Lifetime of LED panel: 50,000 hours
Support for HDMI, VGA and USB Type-C inputs
Built-in speakers with 2-channel 48kHz 24-bit audio
Operating temperature: -20°C to 60°C
IP65 frame for extra protection (optional)
Weighs only 820g for easy installation
Supply voltage: 12 - 24VDC
Power consumption: <19W at 12V operation
VESA 75 mm
Dimensions: 251 x 170 x 33 mm
NOTE: Optional desktop stand
7" TFT Touch Screen Monitor
Powered via USB
250 NITS brightness
Resolution: 1280x800
10-point capacitive touchscreen
IP65 protection against water and dust
Inputs: HDMI, VGA, USB-C
Viewing angle: 170° H/V
Operating temperature: -20°C to 60°C
Storage temperature: -30°C to 80°C
VESA mount 75 mm
184.5mm × 118.8mm × 32mm
Supply via USB cable (USB Powered)
17” SXGA color TFT LCD monitor
OSD on the backside
Heavy-duty steel chassis
NEMA 4/IP65-compliant aluminum front panel
Long backlight lifetime of 50,000 hours
Panel or VESA 100 mount
DVI, composite video and S-video input
Dimensions(WxHxD): 439 x 64.7 x 348mm
Operating temperature: 0 to 45℃ (32 to 113℉)
Power Input: 100~240V AC
Resistive touch screen USB for PenMount 9036 Windows Universal 2000 / XP / 2003 / Vista / 2008 / 7 / 8 / 10 Driver
CE, FCC Class A
15.6 TFT LCD with LED Backlight
High brightness 1200 nits, sunlight readable
Resolution: 1920x1080, aspect ratio 16:9 FHD resolution
MTBF: 100,000 hours
Viewing angle: 170° horizontal and vertical
Color contrast: 1200:1
Response time: 25ms
Supports HDMI, DVI-I and DP video interface
Mounting: VESA 75x75
Color saturation: 82% NTSC
Temperature range: -30°C to 70°C
Low power consumption, DC 12V input
21.5 Inch Industrial LCD Monitor
1000 Nits Brightness for Sunlight Readability
Full IP67 Waterproof
Operating Temperature Range: -20 to 70°C
Anti-glare Tempered Glass Surface Treatment
UV-resistance material
HDMI, VGA
Power Supply: 9-36V DC
VESA Mounting 100x100, 75x75

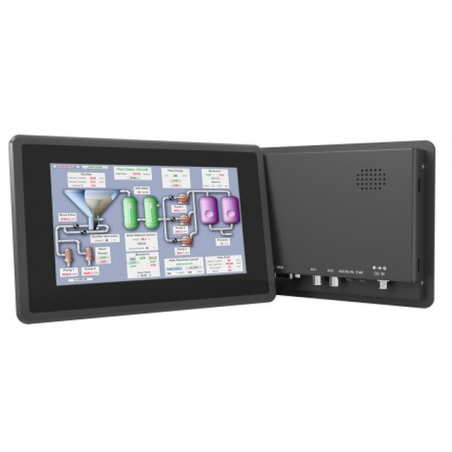

7” LCD with 10-point capacitive touch
High brightness of 1000 nits, suitable for outdoor use
Resolution of 800x480, with a 16:10 aspect ratio and 1000:1 contrast ratio
HDMI, VGA, AV
USB for touch functionality
IP64-rated front panel, ensuring protection against dust and water sprays.
Aluminum housing for enhanced durability
Suitable for demanding industrial applications like smart lockers, medical, and production environments
Operates in temperatures from -20°C to 60°C, with storage temperatures ranging from -30°C to 70°C
Low power consumption (≤8.5W at 12V
Wide input voltage range (12-24V)
17" TFT
1280x1024
4:3
Brightnes 250
VGA input
Touch PCT
Panel Mount
Vesa Mount
Available with auto-brightness sensor offers application in day and night
Complete custom design/solution for OEM customers.
0°C ~ 50°C (32°F ~ 122°F)
AC90 to 260V 50/60Hz Auto-sensing
23.8’ PCAP Touch Monitor
Size: 23.8”
Panel Mount or Vesa mount
Resolution: 1920x1080
Brightness: 350nits
Connectors: VGA+HDMI
Touch: PCAP10-Point
IP65Front
(Opt: Optical Bonding)
Enclosure: Stainless bezel + Metal Backside
PSU: DC12V/5A
12.1" PCAP Touch Panel Mount Display
VGA + HDMI input
P-Cap Touch, I/O: USB
Operating temperature: -10~60℃ (-25~60℃ with heater solution)
Brightness: 1000 nits
Panel Mount
IP65 front
