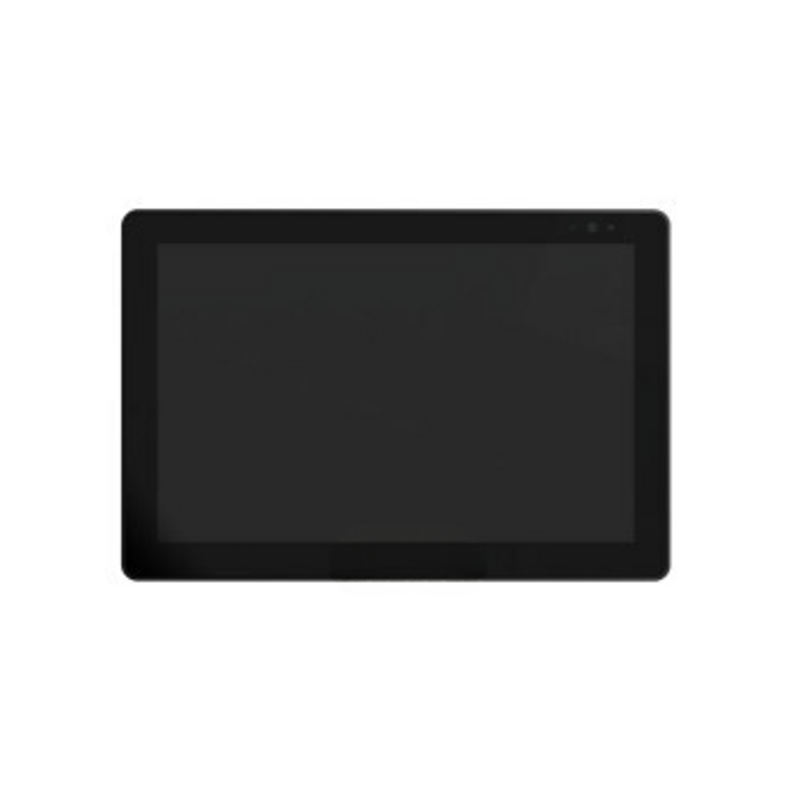

10.1" USB powered, TFT Touch display for Industrial Use HDMI, VGA, 16:10, 1920x1200

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm

7" TFT Touch Screen Monitor

Powered via USB

250 NITS brightness

Resolution: 1280x800

10-point capacitive touchscreen

IP65 protection against water and dust

Inputs: HDMI, VGA, USB-C

Viewing angle: 170° H/V

Operating temperature: -20°C to 60°C

Storage temperature: -30°C to 80°C

VESA mount 75 mm

184.5mm × 118.8mm × 32mm

Supply via USB cable (USB Powered)

8" touch screen (USB).

Video streamed from PC USB port.

Monitoren has built in USB graphic card.

​Supply voltage from USB port.

12.1 "LCD Monitor
IP65 close front
Resolution 1024 x 768, 4: 3 format
800: 1
1 x VGA interface to 5-wire resistive touch screen
300 nits
12V DC input
input: 110 - 240V
Output: 12VDC
Operating temperature: -20 - 70C VESA Church and panel mounting
Optional: 1000 nits Optional
: DVI
Optional: Display Port
Optional: USB for touch
Optional: HDMI Kabel
