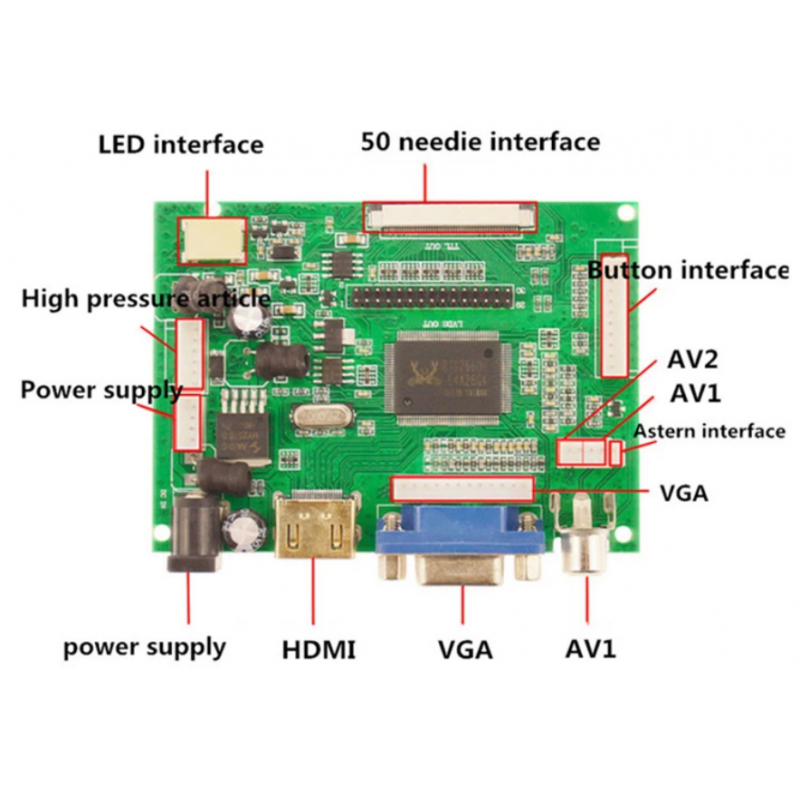

10.1 "TFT Panel OpenFrame 5 to 12VDC Supply, VGA, HDMI, LVDS, AV, Resolution 1024x600

12 "TFT 4: 3 LCD Resistive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1024 x 768
1x VGA, 1X DVI-D, 1x DisplayPort
500 nits Brightness
Designed with aluminum Die-cast Front Frame
IP65 Compatible front panel
Option: Projected Capacitive Touch
9 ~ 48VDC Via 3-pin Terminal Block
Panel, Vesa Mount

21.5" TFT 16:9
Metal chassis
Control panel is behind the front
IP65 only on the front
Resolution: 1920x1080
10-point PCAP Touch
Nits 1000cd/m² high brightness
Supports multiple video input interfaces: HDMI 1.4b, VGA, AV
2 speakers
Supports HDMI 4K30p, 2160p 24/25/30, 1080p 24/25/30/50/60 Hz
Supports Windows XP/7/8/8.1/10, Android, Linux and MAC OS (touch driver)
Front frame dimensions: 556 x 344.5 mm
Depth: 48.2 mm
Cutout dimensions: 540 x 330 mm
Mounting clip included
12-24VDC (≤37W (15V)) - PSU included
CANNOT STAND DIRECT SUNSHINE! (requires optical bonding)

15" 1024x768

4:3

Resistive Touch

Contrast 1500:1

High brightness: 300cd/m2. (1000nits model available)

HDMI, VGA, DVI, A/V inputs (BNC)

Viewing angle: 170/170 (H/V)

Metal housing

VESA & rear mounting methods

12VDC <16Watt

-20℃~60℃

Dimensions: 402 x 289 x 45 normal

Dimensions: 400 x 279 x 44 mm (open frame)

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm

10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet
VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option

19" TFT touch screen
With foot and VESA mount
VGA, HDMI, BNC
1280 x 1024 - 5:4 format
Resistive Touch resistive (USB)
Power supply: 12VDC (supplied)
OS SUPPORT: DOS / Win 9X (95, 98) / ME / CE / NT / XP / 7 / 8 / 10
Please note that the data may change continuously due to the rare model. Contact sales for special requirements.

21.5 "TFT Full HD 16: 9 LCD
Capacitive Touch
16: 9
50,000 HRS LED Backlight Lite
1x VGA, 1X DVI-D, 1x DisplayPort
Resolution Up to 1920 x 1080 (Full HD)
300 Nits Brightness
Aluminum Front
IP65 Front
9 ~ 48vdc Via 3-pin Terminal Block
Panel, VESA Montage

15" 1600nits Open Frame Monitor for installation.
15" TFT LCD, panel
15" sunlight readable, high brightness (1,600 nits)
Resolution: 1024 x 768
LED backlight
High contrast ratio (1000:1)
Wide temperature range (-20°C~70°C)
12VDC
Low power consumption
BL MTBF: 70,000 hours
