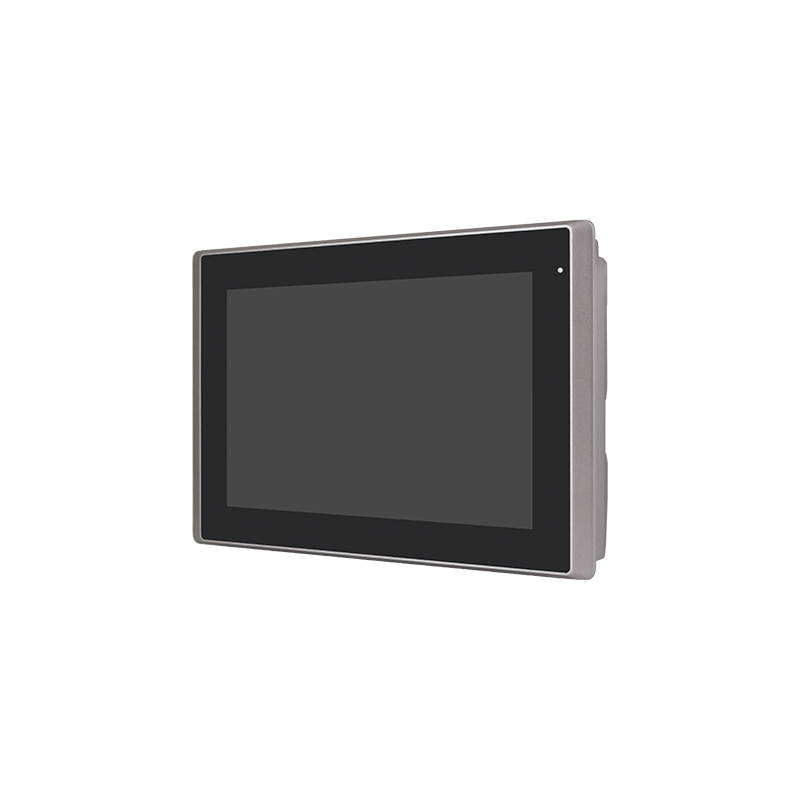

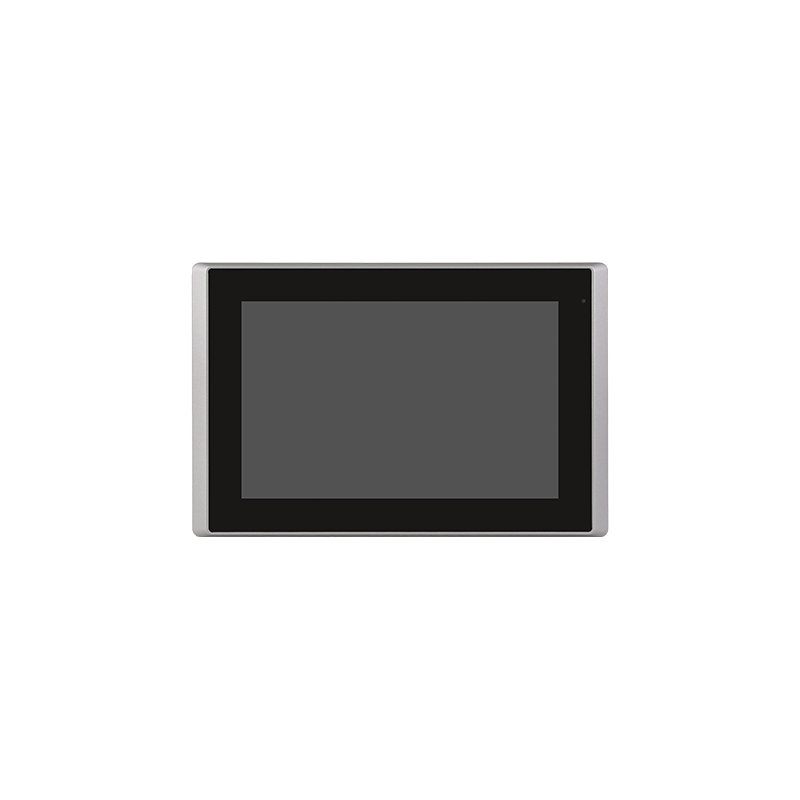

10.1" LCD Touch Screen Alu Front, Projected Capacitive Touch 1280x800 16:10, IP66 Front, DC 9 ~ 36V

10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet

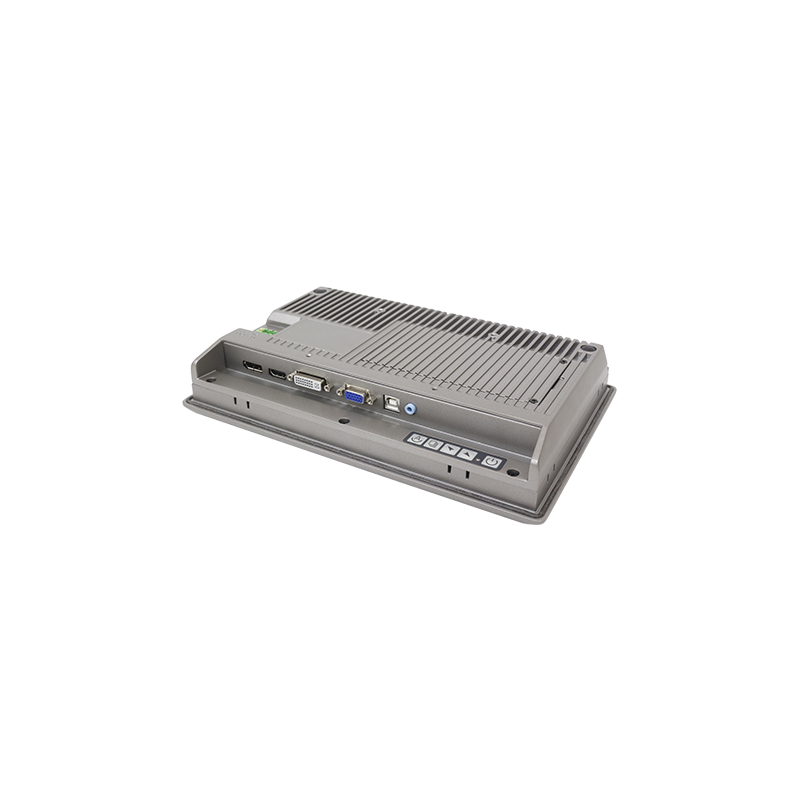

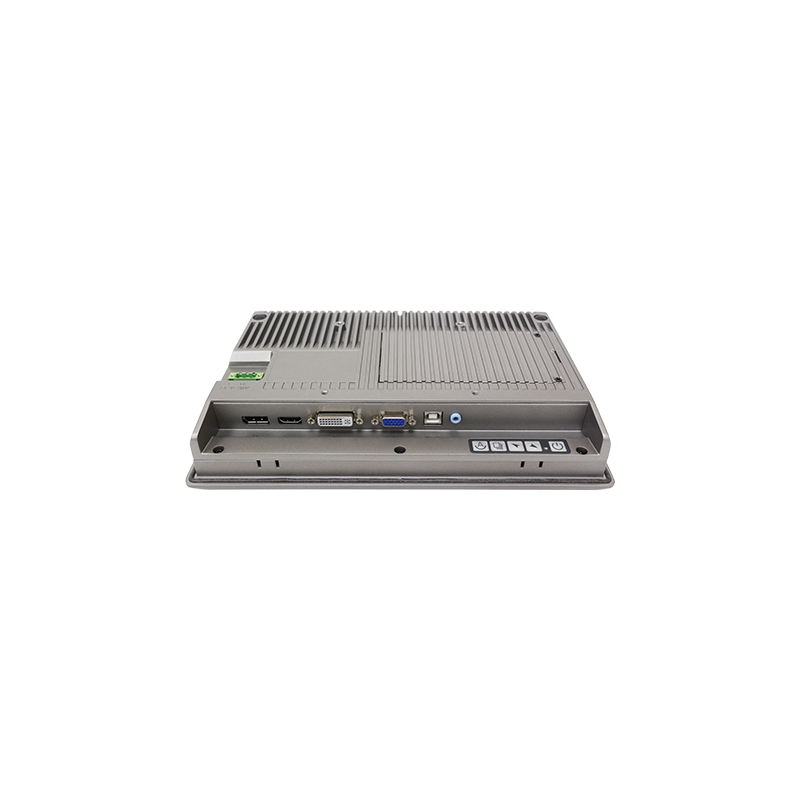

VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option

MON10.1-TFT-T
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

industrial touch screen, can be supplied with High Nits Display Contact our Sales department
Other models, sizes and touch can be obtained.

Andet
15G peak acceleration (11 msec. duration) / Operation
Dimensioner
285 x 189 x 48.9mm
Drivere
eGalaxTouch
Forsyning
DC 9 ~ 36V
Indgang
USB
IP-Tæthed
IP66 front
Kabinet
Aluminum die-casting chassis
Montering
Panel and VESA
Opløsning
1280x800 16:10
OS SUPPORT
Windows XP, Vista, 7, 8, CE, Mac og Linux
Touch
USB, PCAP
VESA standard
100 x 100mm
Weight
1.9 kg
