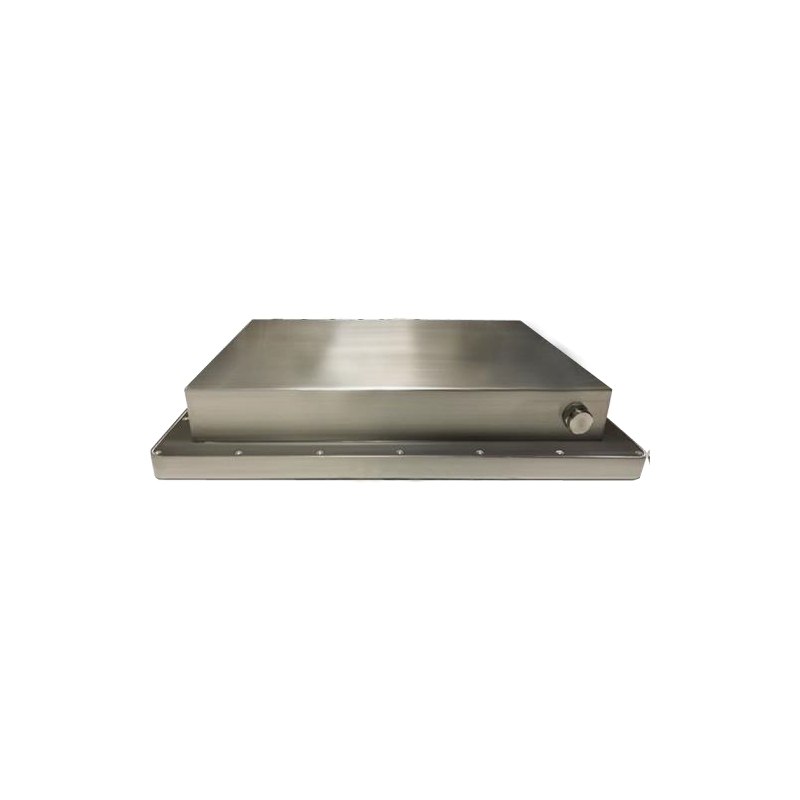

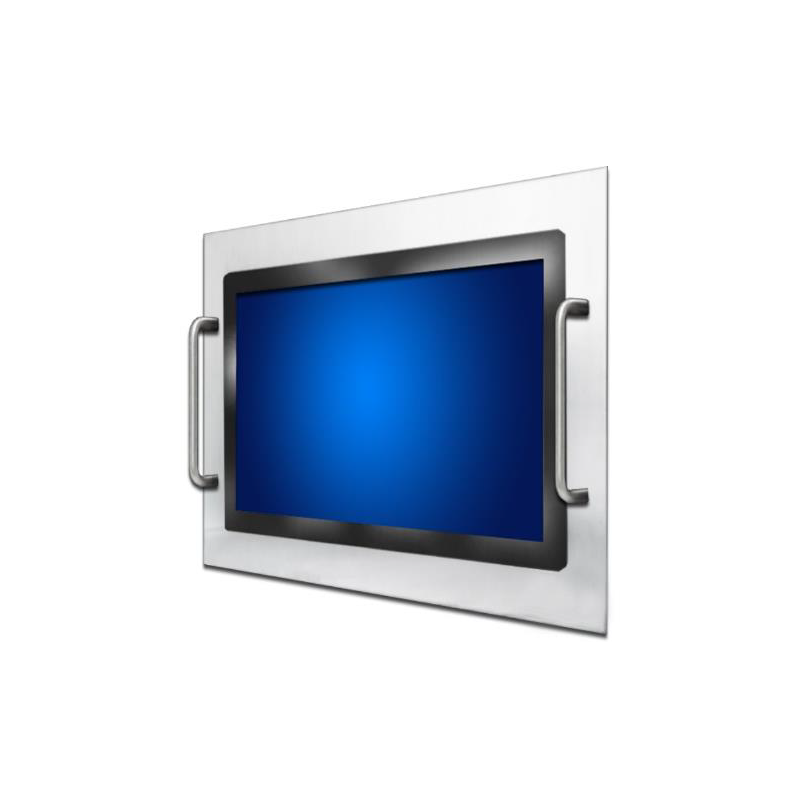

15" Monitor 4:3, 6-sided IP66 sealed, Optically bonded screen, PCAP touch, 700 nits SS316 steel, UV safe. Handle
15" Monitor 4:3, 6-sided IP66 sealed, Optically bonded screen, PCAP touch, 700 nits SS316 steel, UV safe. Handle
15" Monitor 4:3, 6-sided IP66 sealed, Optically bonded screen, PCAP touch, 700 nits SS316 steel, UV safe. Handle
Previous
Next
15" Monitor 4:3, 6-sided IP66 sealed, Optically bonded screen, PCAP touch, 700 nits SS316 steel, UV safe. Handle
15" Monitor 4:3, 6-sided IP66 sealed, Optically bonded screen, PCAP touch, 700 nits SS316 steel, UV safe. Handle
15" Monitor 4:3, 6-sided IP66 sealed, Optically bonded screen, PCAP touch, 700 nits SS316 steel, UV safe. Handle

15" Monitor 4:3, 6-sided fully IP66 sealed, OPTICAL BONDING, PCAP touch, 700 nits in SS316 steel, UV safe.

15" TFT 1024x768@60Hz

4:3 aspect ratio

PCAP Touch (optional Resistive touch), USB

700 nits

Robust, reliable and good performance

6-sided IP66 tight

VGA and HDMI inputs

Optical bonding (Optical Bonding), UV protection

SS 316 steel housing (suitable for food industry)

VESA Mount 100 mm

Input voltage:9 - 36VDC

12VDC power supply included

Optional 110-230VAC built-in power supply

Cables with waterproof connectors included

Temperature: -10 - +60°C

16,240.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number MON15HA-IP66-STEEL
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

DANBIT A/S series of industrial displays are designed and built to withstand harsh environments.

Our range of waterproof displays are IP66 rated to withstand water or dust in your work environment.


This model is available in other sizes and brightnesses from 700nits to 1500nits.

For an additional charge, it can be purchased with a built-in 110-240VAC power supply.

Other products in same category:

15 Industrial Touch Screen - IP65 Stainless Steel Display
15" Industrial Screen, 6-sided IP65 sealed in stainless steel cabinet, touch, VGA, 4:3 format, 9-36VDC

Industrial grade Display in steel cabinet with IP67 connections
15" TFT LCD screen 1024 X 768 - 4:3 format
300 nits and with vandal-proof glass
Housing: Robust IP65 sealed in stainless steel
For VESA 75 wall mounting
Operating temperature: 0° to 50°
IP65 sealed on all 6 sides.
All I/O ports and connectors (protective caps) are military IP-67 waterproof
USB Resistive Touch
9 - 36VDC supply voltage
Optional extra purchase: 1000nits high bright, -30°C to +65°C, Composite

Call +45 56 66 20 20 for price
Item Number: MON15-TFT-T-IP65
On the way in
ADD TO CART
Quick view
17" Screen for panel mounting with touch
17" Panel LCD Monitor, IP65 Front, Resistive Touch USB, 1280x1024, VGA, DisplayPort, HDMI, 24VDC, 250 Nits, 4:3

17" LCD Monitor
Resolution: 1280 x 1024
4:3 Format
IP65-Front
250 Nits
USB Resistive Touch
1 x DP
1 X VGA
1 x HDMI
1 x USB to Touch
Panel / Wall / Rack / Desktop Mounting (Accessories)
Dimensions: 410 x 58 x 338.3 mm
Supply voltage: 24VDC or 230VAC (option)
Weight: 4.45kg without packaging, 6.71kg packed

13,068.00 kr
Item Number: MON17-P-TU
On the way in
ADD TO CART
Quick view
IP66 Waterproof 21.5 "TFT Monitor Screen with Projected Touch Industrial with Vesa Mount 1000nits Suitable for sunlight
21.5 "Full IP66 Close monitor with Projected Touch VGA / HDMI input in stainless steel option 1000nits for sunlight

21.5 "Stainless Steel Screen
IP66 Near Standard 250 Nits (Available with 1000nits On Ordering)
M12 Connector VGA / HDMI
Speaker IP65 2W
M12 Connecotrs
Projcted Capacitive Touch
OSD on back
Vesa Mount 100x100mm (Option Yoke Mounting)
DC 9 ~ 36V
571x362x55mm

Call +45 56 66 20 20 for price
Item Number: MON21.5T-IP66
On the way in
ADD TO CART
Quick view
10" Industrial Touch Monitor to Panel and VESA Mount
10.1" LCD Touch Screen Alu Front, Projected Capacitive Touch 1280x800 16:10, IP66 Front, DC 9 ~ 36V

10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet
VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option

Call +45 56 66 20 20 for price
Item Number: MON10.1-TFT-T
On the way in
ADD TO CART
Quick view
10.4 "navy approved screen with touch
10.4 "Marine approved TFT monitor, touch, 1 x VGA 1 x DVI, IP67, 4: 3 format

10.4 "Marine TFT LCD MONITOR
Full IP67
Resolution 1024 x 768 - 4: 3 Format
1 x VGA
1 x DC Power
1 x S-Video
1 x Composite
1 x J2: Signal Pins (D38999 / 24WD35PN) For military connector
5-wire resistive touch screen
Power input: 12-36V DC Input
For VESA and panel mounting

Call +45 56 66 20 20 for price
Item Number: MON10.4-MAR-IP67
On the way in
ADD TO CART
Quick view
12.1" Panel Vesa Monitor TFT-LCD, Resistive Touch, IP65 Front VGA, DVI-D, DisplayPort 1024x768
12.1" Monitor TFT-LCD, Resistive Touch, IP65 Front, VGA, DVI-D, DisplayPort, 9~48VDC

12 "TFT 4: 3 LCD Resistive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1024 x 768
1x VGA, 1X DVI-D, 1x DisplayPort
500 nits Brightness
Designed with aluminum Die-cast Front Frame
IP65 Compatible front panel
Option: Projected Capacitive Touch
9 ~ 48VDC Via 3-pin Terminal Block
Panel, Vesa Mount

5,300.00 kr
Item Number: MON12-CDS
On the way in
ADD TO CART
Quick view
vandtæt display IP65, IP66, IP68 High nits til sollys udendørs brug
12.1" TFT display 360 Degrees IP66 tight, VGA, HDMI, 304 Steel enclosure option with 1000 nits for sunlight

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm

Call +45 56 66 20 20 for price
Item Number: MON12-TFT-T-IP66
On the way in
ADD TO CART
Quick view
17" IP67 steel TFT monitor, touch resistive, waterproof, Vesa mount VGA
17" TFT Industrial monitor, stainless steel housing, IP67, touch (USB), VGA, 5:4 format

17 "TFT monitor - stainless steel cabinet
full IP67
Touch
1280 x 1024 - 5:4 format
Brightness 300 cd/m²
VGA, DB15HD
VESA75
450 x 378 x 62 mm (H x W x D)
Weight: 7.5 kg
Supply voltage: 12VDC
230V AC / 12V DC / 1.5A PSU incl.
Special cables with IP67 sealed connectors are included.

14,500.00 kr
Item Number: MON17-TFT-T-IP65
Physically in stock
ADD TO CART
Quick view
