24-28VDC 5A (120Watt) power supply 180 - 550VAC input, DIN rail
180 - 550 VAC input for 24-28VDC fine adjustment
120 W voltage supply
DIN rail mounting
Adjustable output 24 to 28VDC
Working temperature -30 - + 70 ° C

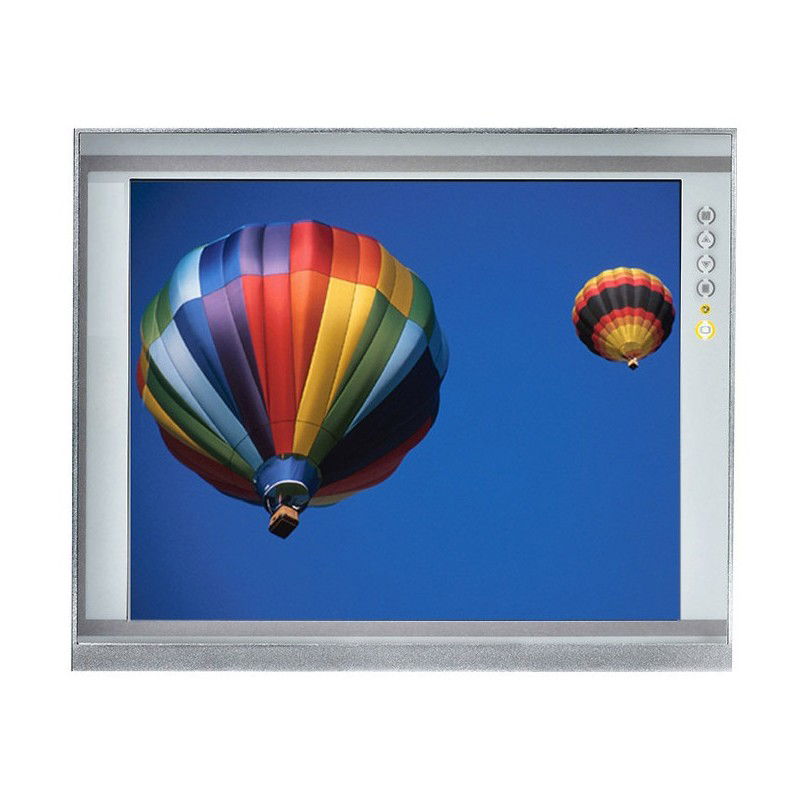

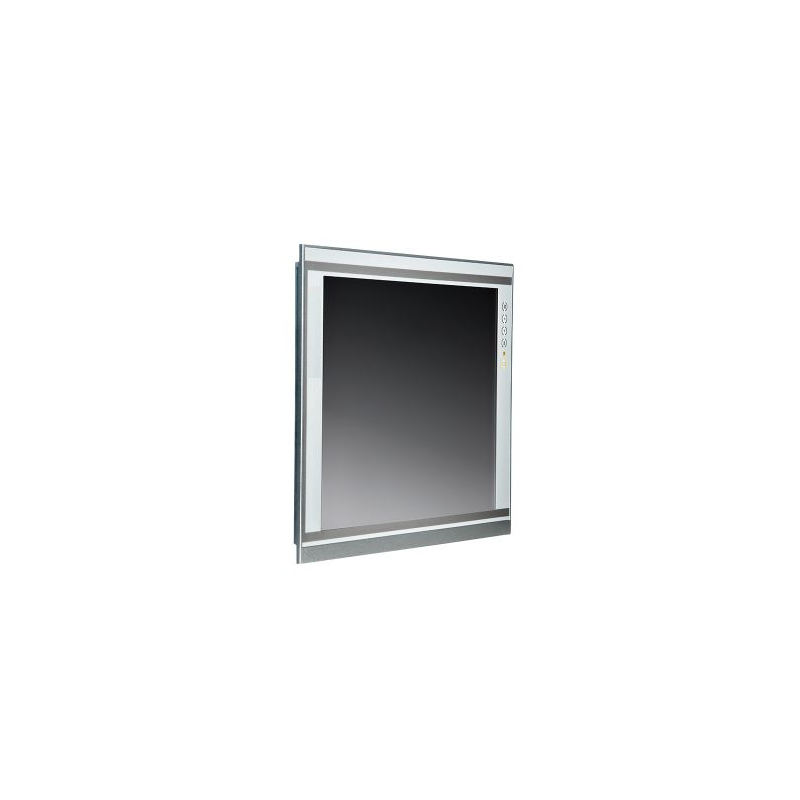

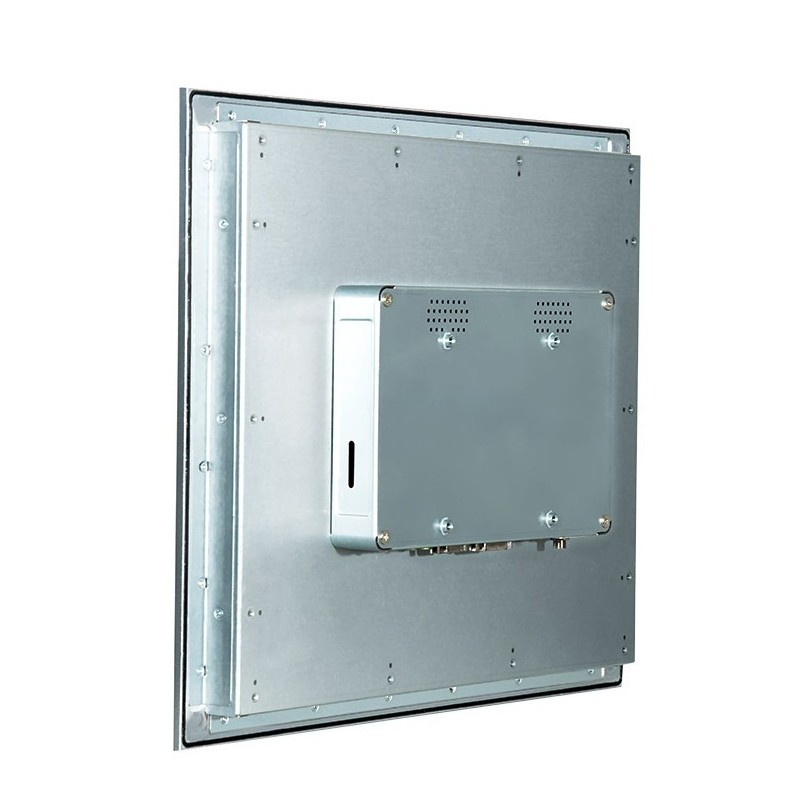

17" LCD Monitor
Resolution: 1280 x 1024
4:3 Format
IP65-Front
250 Nits
USB Resistive Touch
1 x DP
1 X VGA
1 x HDMI
1 x USB to Touch
Panel / Wall / Rack / Desktop Mounting (Accessories)

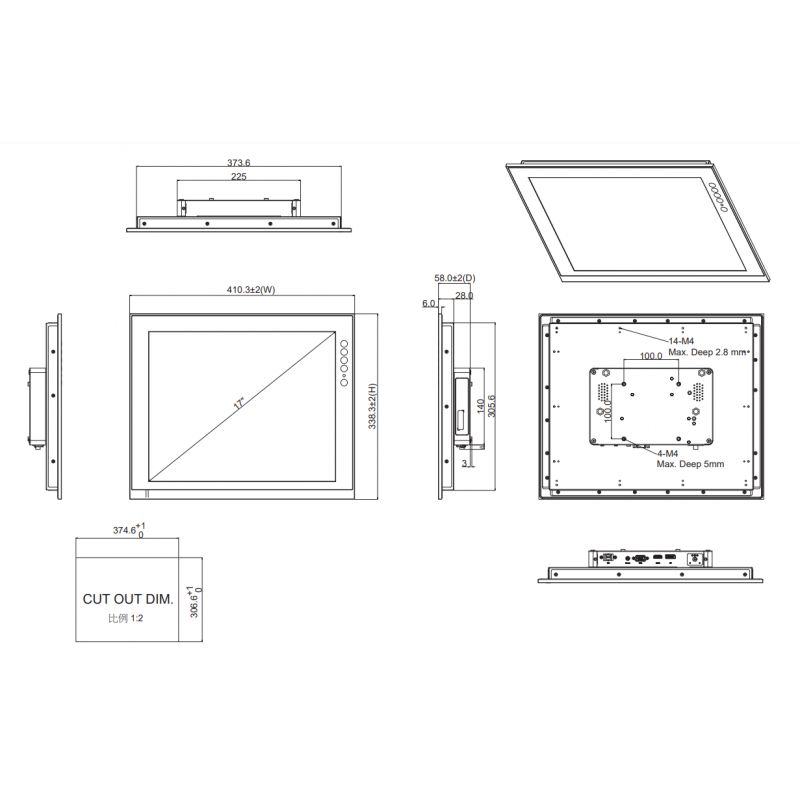

Dimensions: 410 x 58 x 338.3 mm
Supply voltage: 24VDC or 230VAC (option)
Weight: 4.45kg without packaging, 6.71kg packed
MON17P-TU is in the metal cabinet and is intended for Industrial use and for installation in panel / vesa / rack or table mounting. All I / O work with multi signal inputs.
included:
1 x Monitor
1 x VGA Cable
1 x USB Cable
1 x Audio Cable
1 x 3-pin terminal block
180 - 550 VAC input for 24-28VDC fine adjustment
120 W voltage supply
DIN rail mounting
Adjustable output 24 to 28VDC
Working temperature -30 - + 70 ° C
17" IP66/IK69 360° industrial touch monitor
5:4 format - 1280 x 1024
400 nits
Aluminum alloy panel
IP66 (water resistant)
Multi-touch (projected capacitive touch)
LED backlight
1 x HDMI input
1 x USB (touch)
Supply voltage: 12-24VDC 25Watt
Temperature -20 - + 70°C
VESA 100 mounting
Dimensions: 393 x 325 x 40 mm
Weight: 4.5 kg
17 "LCD monitor
Resolution: 1280 x 1024 to 4: 3 format
IP65 front
250 nits
USB / RS232 resistive Touch
1 x DVI-D, 1 x VGA, 1 x HDMI
1 x USB to the touch
Panel/wall/rack mounting or desktop
Dimensions: 58 x 410.31 x 338.31 mm
AC 230V
Weight: 3.8 kg without packing / 6,56kg packed
12” LCD screen
IP65 sealed NEMA 4/12 front
DVI, HDMI, VGA
Resolution 1024 x 768 - 4:3
Touchscreen RS232 or USB interface (standard with USB)
Vesa 100 mount, Panel mounting.
OSD
12/24Vdc standard screw terminal
Optional! Rack mounting
Optional! 230 vac
24 "LCD metal monitor, IP66 front, IP20 rear
1920 x 1080
300 nits, 5000: 1, 16: 9
LED backlight
Response time: 25ms
viewing angle: 178 ° / 178 °
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15-pin D-sub femlae) < br> 1 x RS232 / 422/485 (software selectable terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F) < br> 595 x 393 x 75 mm & nbsp;
Weight: 9.570 g
Desktop, Panel mounting, VESA mounting
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND
