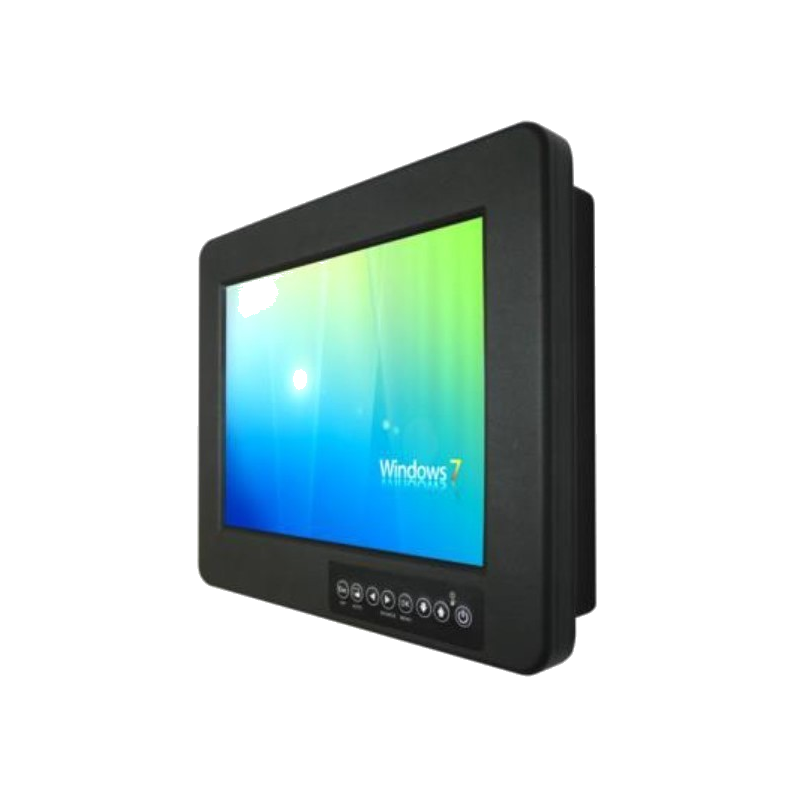

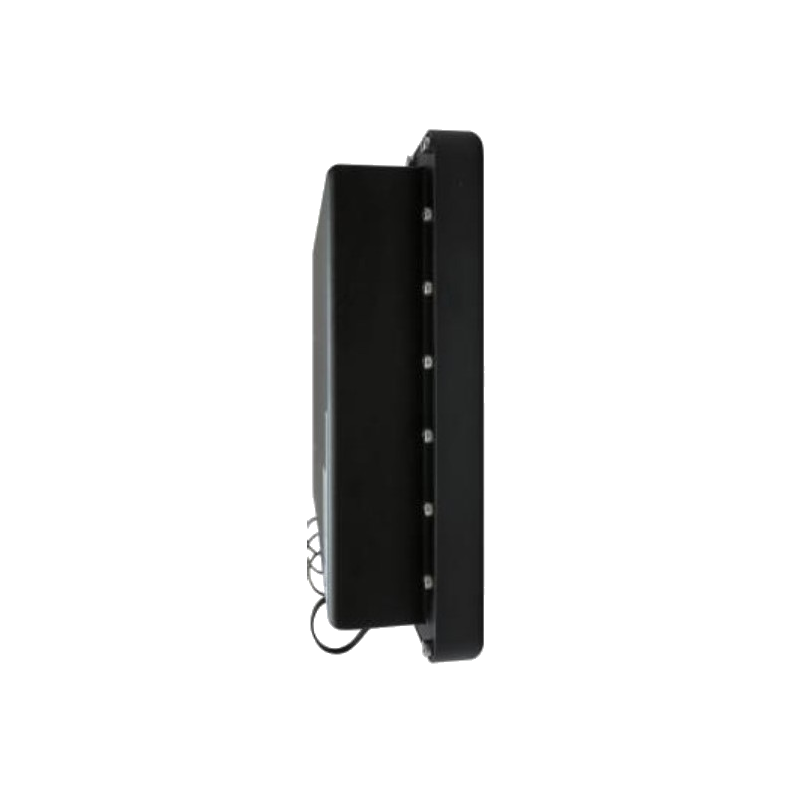

10.4 "Marine approved TFT monitor, touch, 1 x VGA 1 x DVI, IP67, 4: 3 format

10.4 "Marine TFT LCD MONITOR
Full IP67
Resolution 1024 x 768 - 4: 3 Format
1 x VGA
1 x DC Power
1 x S-Video
1 x Composite
1 x J2: Signal Pins (D38999 / 24WD35PN) For military connector
5-wire resistive touch screen
Power input: 12-36V DC Input
For VESA and panel mounting

MON10.4-MAR-IP67
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Can be ordered with 1 x video input, please contact our sales department.

Dimensioner
248 x 300 x 72 mm
Driftstemperatur
-25 ° - 60 °
Forsyning
12~36V DC Input (MIL-STD-1275 Compliance)
I/O
• D38999 : 1 x VGA (RS170) Input • BNC : 1 x Video (NTSC/PAL) Input (optional) • D38999 : 1 x DVI Input (For optional) • D38999 : 1 x DC Power Input
IP-Tæthed
Full IP67
Montering
VESA Mount / Panel Mount
Touch
5-wire resistive touch screen
