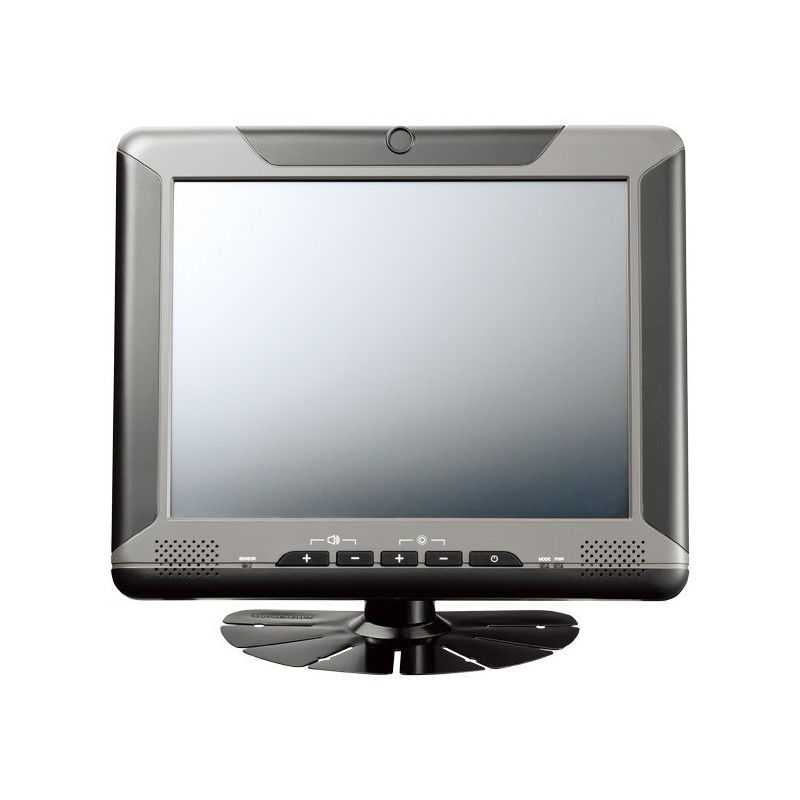

8 "LCD monitor, touch, with LED back light, IP55 close front, 800nits, readable in sunlight, -20°C to +60°C, 4:3 format

8" TFT LCD Monitor, Suitable for Vehicles
Resistive Touch (USB)
LED Backlight
800 x 600 Pixels (SVGA)
Brightness: 800 cd/m² (800nits)
Readable in sunlight
Contrast 500:1
1 x SD / MMC / MS card reader, 1 x USB A, 1 x Microphone
In DVI connector (VGA, 1 x USB and 1 x 12VDC)
Supply 9-36VDC, 15W
Operating Temperature -20 to 60°C
IP55 Front
For VESA 75, Panel Power. wall mount
Dimensions: 207mm x 173mm x 36.7mm (W x H x D)

MON8-TFT-S
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Andet
2 x Built-in speakers (1.2W)
Chok/Vibration
Vibration (random): 2.5g@5 ~ 500 Hz ΠVibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4, Ground Vehicle РHighway Truck Storage: MIL-STD-810G, 514.6 Procedure 1, Category 4, Integrity Test ΠShock
Dimensioner
207mm (W) x 173mm (H) x 36.7mm (D)
Driftstemperatur
-20°C to 60°
Interface
Lateral: 1 x SD/MMC/MS card reader, 1 x USB type A Host, 1 x Line-out 1 x Mic-in Interface Bottom: 1 x Mic-out, 1 x Line-in, 1 x DVI-D Connector (integrating VGA, USB x 1 and 12VDC x 1)
IP-Tæthed
Front panel IP55
Kontrast
Contrast ratio: 500 : 1 (typical)
Lysfølsomhed
Sunlight-Readable Display with High Brightness LCD (800 cd/m2 )
Materiale
Enclosure: Plastic PC + ABS
Montering
VESA 75, panel and wall mounting
Pixels
Skærm
8" SVGA TFT LCD Monitor
Touch
4-wire resistant touch Anti-glare coating surface Transmission rate: 82 ± 3%
Weight
0.7Kg
