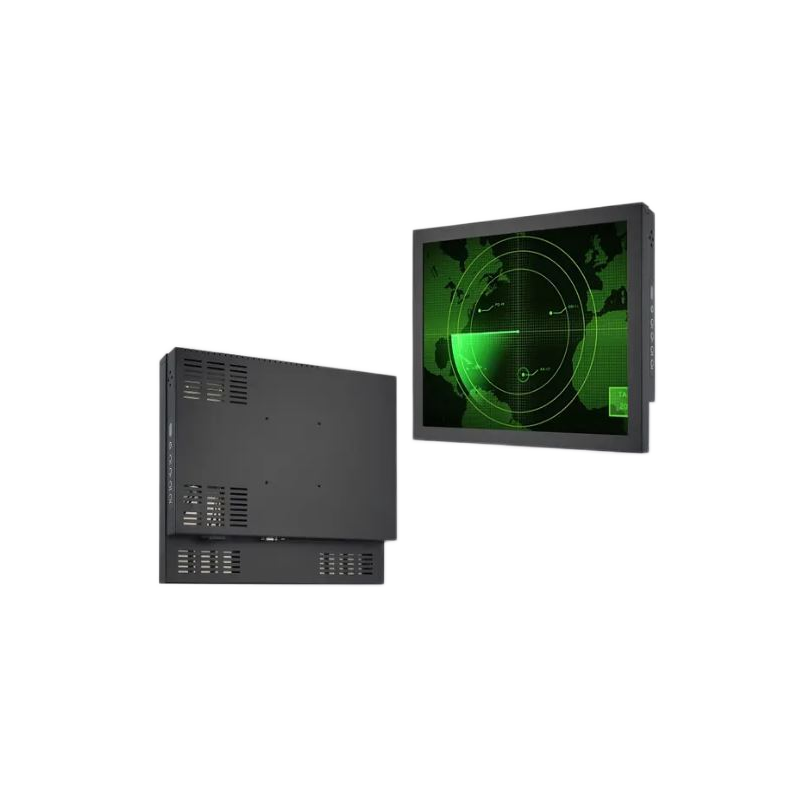

panel mount 17" LCD monitor, 1280 x 1024, LED 1000 nits, VGA input High Nits with dimmer function

Modularize mechanical design provides flexible product configuration and easy maintenance

Touch screen for interactive application

Available with auto-brightness sensor offers application in day and night

VGA connector (on request AV,SV,AV-Looping)

Complete custom design/solution for OEM customers

Glass Surface

Black Anti-Glare, low reflection coating

Aspect Ratio4 : 3 Size17"

Active Area337.92(H) x 270.34(V) mm

Pixel Pitch0.264(H) x 0.264(V) mm

Native Resolution1280x1024

Colors16.7 M

Bright.(typ)1000Contrast800 : 1Response Time≤ 5 ms

Viewing Angle (H / V)170 / 160

LED backlight, Long life, 35,000 hrs (typ)

0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)

Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz



Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number MON17-1000NITS
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Possibility of specially configured solution:

TOUCH:

Resistive Touch

Projected Capacitive Touch

Infrared Touch

Protected Glass

Optical bonding


Video:

AV IN

AV looping

HDMI/DP

HD-SDI

PANEL OPTIONS:

High Brightness

Sunlight Readble

Wide Viewing Angle

Wide Temperature

UV Film

Anti-Vandal


Power Options:

24V DC in

9~36Vdc in

48Vdc in

90V, 125V DC-IN

110,220V DC IN


Other:

Motion Sensor

Light Sensor

VR Knob Dimming

RS-232 Remote ON/OFF

Military Connector: MIL 38999

Metal Connector: M12/M16

Stainless Steel 316 Enclosure
