10.1” LCD with 1920x1200 resolution

380 Nits

Capacitive touch function for precision

16:10 aspect ratio for optimal viewing

170° viewing angle for better accessibility

Lifetime of LED panel: 50,000 hours

Support for HDMI, VGA and USB Type-C inputs

Built-in speakers with 2-channel 48kHz 24-bit audio

Operating temperature: -20°C to 60°C

IP65 frame for extra protection (optional)

Weighs only 820g for easy installation

Power consumption: <19W at 12V operation

VESA 75 mm

NOTE: Optional desktop stand

17” SXGA color TFT LCD monitor

OSD on the backside

Heavy-duty steel chassis

NEMA 4/IP65-compliant aluminum front panel

Long backlight lifetime of 50,000 hours

Panel or VESA 100 mount

DVI, composite video and S-video input

Dimensions(WxHxD): 439 x 64.7 x 348mm

Operating temperature: 0 to 45℃ (32 to 113℉)

Power Input: 100~240V AC

Resistive touch screen USB for PenMount  9036 Windows Universal 2000 / XP / 2003 / Vista / 2008 / 7 / 8 / 10 Driver

CE, FCC Class A

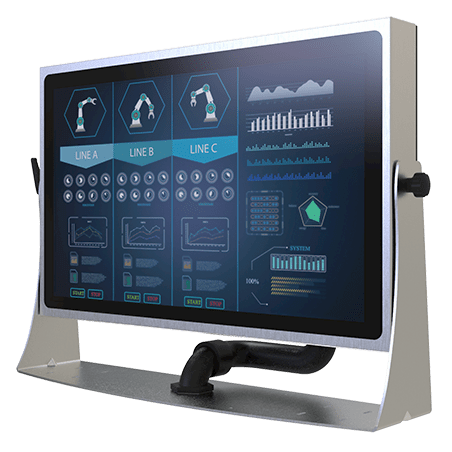

21.5", FULL HD 1920 x 1080 16.7m Colors
Brightness 250nits (Possibility: 1000nits)
IP69K
VGA, (Possibility HDMI)
USB for toutch screen control
PCAP Projected capacitive multi­touch screen, touch with flat design
A true flat, easy­ to ­clean front surface with edge­to­edge design
Full IP69K waterproof enclosure
SUS 316/ AISI 316 stainless steel for food and chemical industries
Waterproof sealed conduit pipe for cable protection
Support VESA / YOKE mount
Optical bonding (Possibility)
Operation temperature 0°C to 45°C
541 x 337 x 56.2 mm
12V DC

17" 5:4 1280x1024

400 cd/m2

10 point PCAP touch via USB

IP66 front protection

HDMI/VGA/DVI video input

Power Input 12~24VDC

Operating Temperature -20~70°C

Panel/VESA mounting

32" TFT CCTV LCD MONITOR
High resolution 1920x1080
Vesa mount 200x200mm
Professional design for CCTV 24/7 operation
7 International Language OSD Menu
HDMI input (DVI compatibel)
PIP/PBP function
BNC video looping out
3DNR (3D noise reduction) function
Anti Burn-in function prevent LCD panel from Bunr-In
remote control is not included need to be ordered seperatly

27" TFT 1920×1080 for panel

1000 nits brightness

Input: HDMI, VGA, USB-C

Audio in/out: Speaker, HDMI, earphone jack

10-point PCAP, 7H hardness IK07 impact resistance

IP65 front panel

Horizontal and Vertical Installation

UV-resistant

Anti-reflective

Anti-fingerprint

Glove touch support

Metal

Modularize mechanical design provides flexible product configuration and easy maintenance

Touch screen for interactive application

Available with auto-brightness sensor offers application in day and night

VGA connector (on request AV,SV,AV-Looping)

Complete custom design/solution for OEM customers

Glass Surface

Black Anti-Glare, low reflection coating

Aspect Ratio4 : 3 Size17"

Active Area337.92(H) x 270.34(V) mm

Pixel Pitch0.264(H) x 0.264(V) mm

Native Resolution1280x1024

Colors16.7 M

Bright.(typ)1000Contrast800 : 1Response Time≤ 5 ms

Viewing Angle (H / V)170 / 160

LED backlight, Long life, 35,000 hrs (typ)

0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)

Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm

23.8’ PCAP Touch Monitor
Size: 23.8”
Panel Mount or Vesa mount
Resolution: 1920x1080
Brightness: 350nits
Connectors: VGA+HDMI
Touch: PCAP10-Point
IP65Front
(Opt: Optical Bonding)
Enclosure: Stainless bezel + Metal Backside
PSU: DC12V/5A

19 "TFT Screen
Touch
Vulnerable
IP65 Closed
Stainless Steel Cabinet
VESA Mount
Waterproof Cables
Waterproof Plug Connector at the Base of the Cabinet.
12VDC, AC Adapter

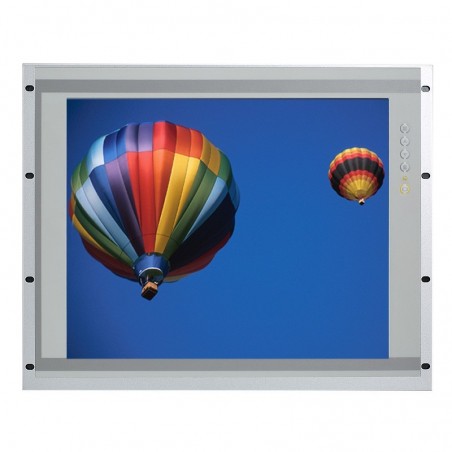

19" LCD monitor
Resolution: 1280 x 1024
5:4 format
IP65 front
250 nits
USB resistive Touch
1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
1 x Audio Input
for Panel mounting OPTION: wall/rack or desktop mounting
Dimensions: 482 x 55 x 380mm (with frame)
Cutout dimensions: 407.1 x 334.6mm
24V DC screw type
Weight: 6kg

65" outdoor solution
Can be delivered as
Monitor: with 2xHDMI, VGA input
Digital signage: 2xUSB2.0, 1x HDMI (input), 1x SD card slot
Android: 2xUSB2.0, 1xHDMI output, 1xRJ45, 1x Wifi, (Optional 4G LTE), Rockchip RK 3288, Arm 1.8Ghz,2GB RAM, 8GB SSD, Android 7.1
Windows: 2x USB2.0, 2x USB3.0, 1xRJ45, 1xWifi, Intel i5 Gen. 10 2.9Ghz, Chipset H510, 8GB RAM, 120GB SSD, win10/Linux
Broghtness 3000~4000cd/m
Support Portrait & Landscape display mode
IP65
-20~50℃

Can be made as a monitor or panel PC, contact us regarding opportunities.
Projected capacitive touch
HDMI, Displayport, VGA input
Dimension (W x D x H) 550 x 343.7 x 63.3
Weight 7.16 kg
One piece and slim frame design
Mounting flat / Standard / VESA / Rack Mount
Pre-installed mounting bracket with adjustable design (supports 11 different adjustment steps)
Front panel IP65 compliant * According to IEC60529
Operating temperature 0°C to 70°C
Power input 9~48VDC
EMC CE, UKCA, FCC, ICES-003 Class A
UL, cUL 62368-1 (pending)

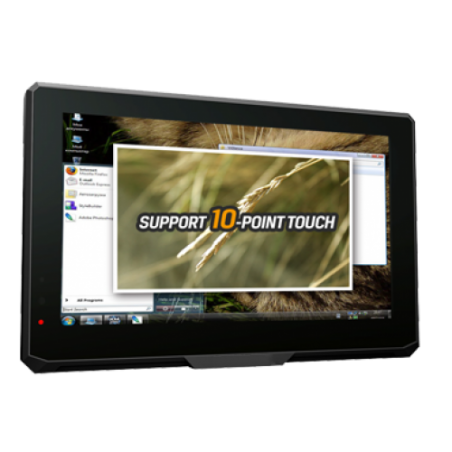

7" 16:9 Ratio LCD
800x480 Resoliution
Kapacitive Multi-Touch via USB
Lysstyrke: 1000 nits
Videoindgange: HDMI, VGA, Composite
Drift Tempeture: -20 til 60 °C
DC indgang: 7-36VDC
VESA 75 Montering
Option: Automatisk lysstyrke

23.8" TFT-LCD Monitor
16:9 LCD with PCAP Touch
Brightness: 1000 Nits
50,000 HRS LED Backlight Life
Resolution 1920 x 1080 (FHD)
design with aluminum Die-Cast Frame
IP66 Front panel
video input: VGA, DVI-D, HDMI, DisplayPort
USB (default) or RS232 (option) for touch
Power supply: 3-pin 9 ~ 36VDC ( Not included)
Operating temperature: 0 ~ +60°C

21.5" LCD screen with PCAP touch
IP30
1920x1080 Full HD
16:9
250 nits
1 x VGA
1 x HDMI
1 x Display port
2 x Speakers - 4W
HDCP
Contrast: 1000:1
Response time: 7 ms
Screen angle: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Capacitive touch, 10 points (HID, only with OS)
USB touch interface
Plug and play
Vesa mounting 100 x 100
Included: power cable, USB, HDMI, audio
Weight: 4.8 KG
490.5 x 370.5 x 220.5mm
power supply: AC 100 - 240V, 50/60Hz
Energy class B

24 "LCD metal monitor, IP66 front, IP20 rear
1920 x 1080
300 nits, 5000: 1, 16: 9
LED backlight
Response time: 25ms
viewing angle: 178 ° / 178 °
Capacitive touch, 4 points
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15 -Pin D-sub femlae)
1 x RS232 / 422/485 (software selectable terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
595 x 393 x 75 mm & nbsp;
Weight: 9.570 g
Desktop, Panel mounting, VESA mounting
Optional: RS-232: TxD, RxD, RTS, CTS , DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND

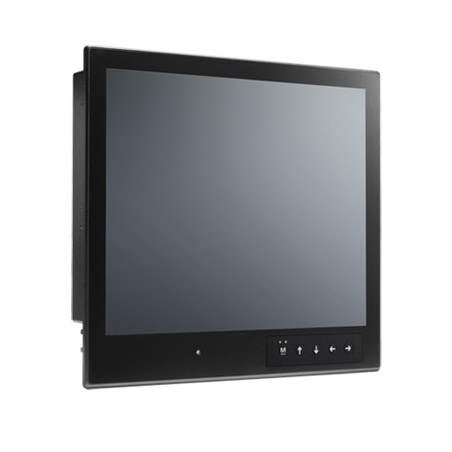

19 "LCD metal monitor, IP66 front, IP20 back side
1280 x 1024
300 nits
2000: 1, 5: 4
LED backlight
Response time: 20ms
view angle: 178 ° / 178 °
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15-pin D-sub femlae )
1 x RS232 / 422/485 (software selectable terminal block)
Capacitive touch (PCAP), 4 Points
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
- 15 to 55 ° C (5 to 131 ° F)
429 x 387 x 75 mm
Weight: 7,800 g
RoHS, CRoHS, WEEE
Optional: RS-232: TxD, RxD, RTS , CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND

24 "TFT metal monitor with capacitive touch, IP66, IP20
LED backlight
Capacitive touch (PCAP), 4 points
1280 x 1024
Contrast: 700: 1, & nbsp; 1000 nits
Display angle: 160 ° / 140 °
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS-232 (DB9 male)
1 x Optional RS232 / 422/485
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Desktop, Panel mounting
6,100 g, 429 x 387 x 75 mm
-40 to 70 ° C
CISPR 32, FCC Part 15B Class A
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND < Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx -, Rx +, Rx, GND

24 "TFT monitor LED backlight, IP66
LED backlight
1280 x 1024
350 nits, 5000: 1, 16: 9
Display angle: 178 ° / 178 °
Capacitive 4 points
3 x BNC
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS232 / 422/485 (software selected terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Panel mounting
-15 to 55 ° C (5 to 131 ° F) < br> CISPR 32, FCC Part 15B Class A
EN 55032/24 for weight: 12000 g
647 x 414 x 95 mm
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS -485-4w: Tx +, Tx-, Rx +, Rx-, GND
