15" Monitor TFT-LCD, Resistive Touch, IP65 Front, VGA, DVI-D, DisplayPort, 9~48VDC

  • Pack

15 "TFT 4: 3 LCD Resistive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1024 x 768
1x VGA, 1X DVI-D, 1x DisplayPort
350 nits Brightness
Designed with aluminum Die-cast Front Frame
IP65 Compatible front panel
Option: Projected Capacitive Touch
9 ~ 48VDC Via 3-pin Terminal Block

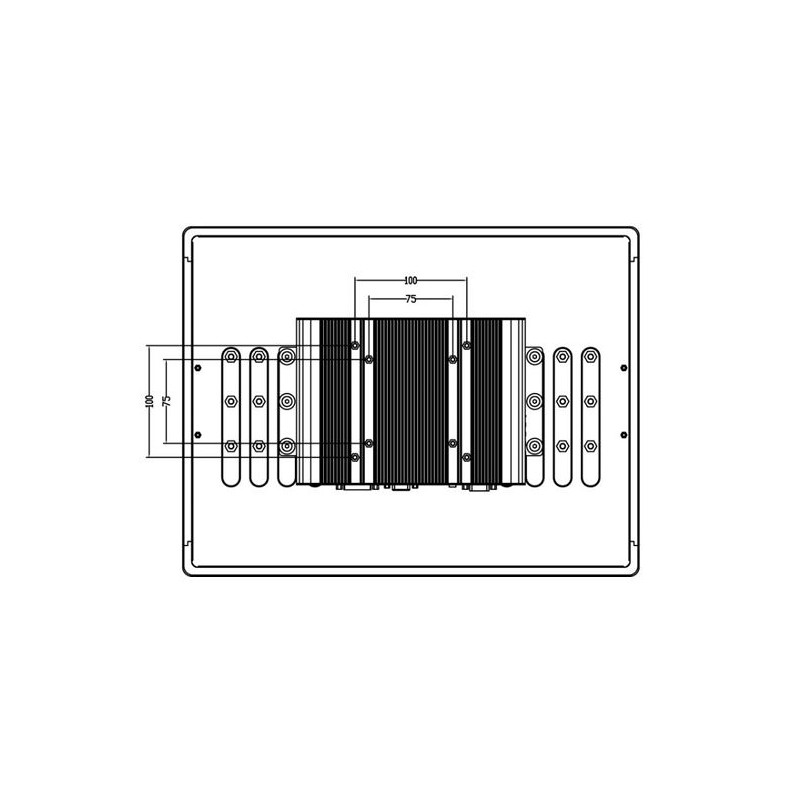

Panel, Vesa Mount

This pack contains

I/O Module for Industrial display
x 1
15" Modular monitor
x 1
MON15-CDS
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

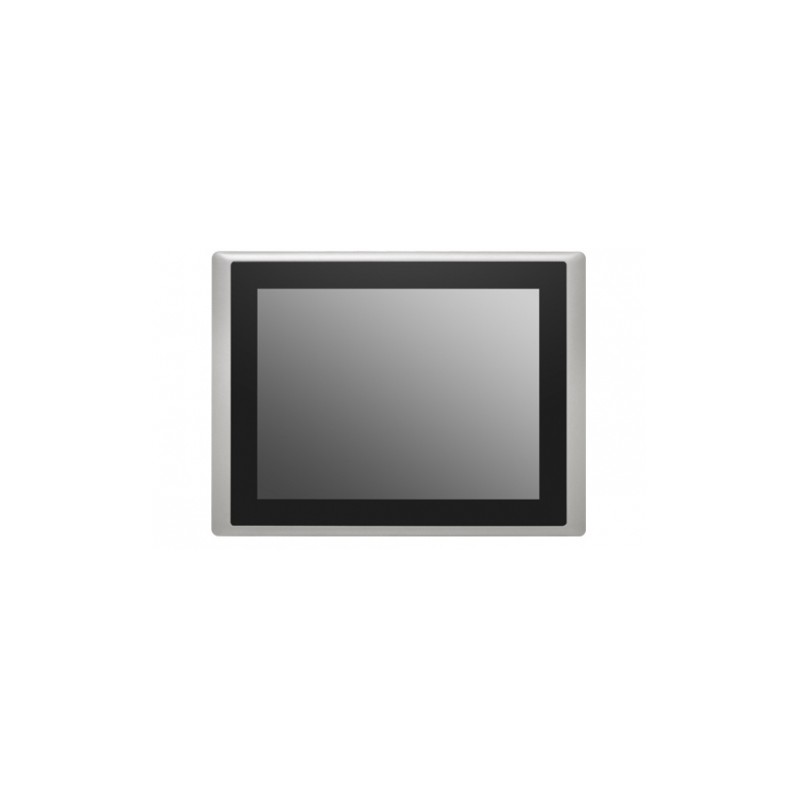

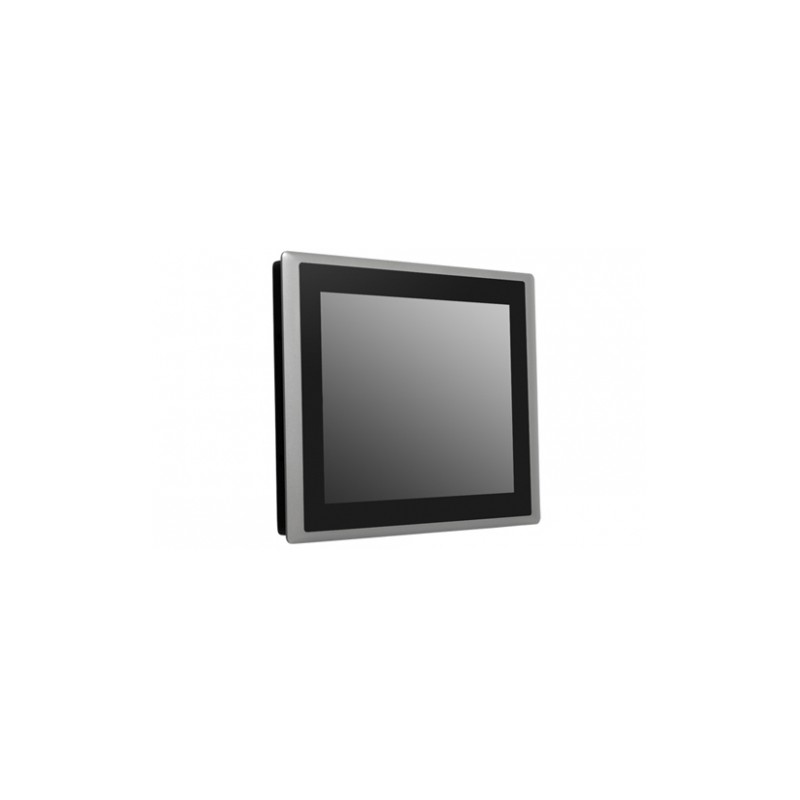

MON15-CDS is 15" LCD display module with resistive touch. It offers resolution up to 1024x768 and 350 nits brightness. MON15-CDS features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, MON15-CDS allows you to configure, upgrade and maintain your Convertible Display System easily.

Forsyning
9~48VDC via 3-pin Terminal Block
IP-Tæthed
IP65 Compliant Front Panel
Opløsning
1024x768 ratio: 4:3
Touch
Resistive Touch
Weight
5.48kg
