Panel screens / Panel monitors are TFT / LCD monitors in a very robust package, where the cabinet is often made of steel. Panel screens are designed to fit into an industrial enclosure so that only the front and front bezels are visible. Almost all panel displays have an IP65 close to the front and with the right rubber gasket between the front frame and box, the result can be an industrial monitor for food-producing companies. The front glass is preferably tempered glass that can withstand the demanding environment.
Some panel displays have touch screens. Here it is the most common type of resistive touch, as it can only be affected by weak pressure. There are several touch principles, ranging from IR raster to projected touch (eg touch through a shop window).
17” SXGA color TFT LCD monitor
OSD on the backside
Heavy-duty steel chassis
NEMA 4/IP65-compliant aluminum front panel
Long backlight lifetime of 50,000 hours
Panel or VESA 100 mount
DVI, composite video and S-video input
Dimensions(WxHxD): 439 x 64.7 x 348mm
Operating temperature: 0 to 45℃ (32 to 113℉)
Power Input: 100~240V AC
Resistive touch screen USB for PenMount 9036 Windows Universal 2000 / XP / 2003 / Vista / 2008 / 7 / 8 / 10 Driver
CE, FCC Class A
17" TFT
1280x1024
4:3
Brightnes 250
VGA input
Touch PCT
Panel Mount
Vesa Mount
Available with auto-brightness sensor offers application in day and night
Complete custom design/solution for OEM customers.
0°C ~ 50°C (32°F ~ 122°F)
AC90 to 260V 50/60Hz Auto-sensing
27" TFT 1920×1080 for panel
1000 nits brightness
Input: HDMI, VGA, USB-C
Audio in/out: Speaker, HDMI, earphone jack
10-point PCAP, 7H hardness IK07 impact resistance
IP65 front panel
Horizontal and Vertical Installation
UV-resistant
Anti-reflective
Anti-fingerprint
Glove touch support
Metal
Modularize mechanical design provides flexible product configuration and easy maintenance
Touch screen for interactive application
Available with auto-brightness sensor offers application in day and night
VGA connector (on request AV,SV,AV-Looping)
Complete custom design/solution for OEM customers
Glass Surface
Black Anti-Glare, low reflection coating
Aspect Ratio4 : 3 Size17"
Active Area337.92(H) x 270.34(V) mm
Pixel Pitch0.264(H) x 0.264(V) mm
Native Resolution1280x1024
Colors16.7 M
Bright.(typ)1000Contrast800 : 1Response Time≤ 5 ms
Viewing Angle (H / V)170 / 160
LED backlight, Long life, 35,000 hrs (typ)
0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
7” LCD with 10-point capacitive touch
High brightness of 1000 nits, suitable for outdoor use
Resolution of 800x480, with a 16:10 aspect ratio and 1000:1 contrast ratio
HDMI, VGA, AV
USB for touch functionality
IP64-rated front panel, ensuring protection against dust and water sprays.
Aluminum housing for enhanced durability
Suitable for demanding industrial applications like smart lockers, medical, and production environments
Operates in temperatures from -20°C to 60°C, with storage temperatures ranging from -30°C to 70°C
Low power consumption (≤8.5W at 12V
Wide input voltage range (12-24V)
21.5 Inch Industrial LCD Monitor
1000 Nits Brightness for Sunlight Readability
Full IP67 Waterproof
Operating Temperature Range: -20 to 70°C
Anti-glare Tempered Glass Surface Treatment
UV-resistance material
HDMI, VGA
Power Supply: 9-36V DC
VESA Mounting 100x100, 75x75
15.6 TFT LCD with LED Backlight
High brightness 1200 nits, sunlight readable
Resolution: 1920x1080, aspect ratio 16:9 FHD resolution
MTBF: 100,000 hours
Viewing angle: 170° horizontal and vertical
Color contrast: 1200:1
Response time: 25ms
Supports HDMI, DVI-I and DP video interface
Mounting: VESA 75x75
Color saturation: 82% NTSC
Temperature range: -30°C to 70°C
Low power consumption, DC 12V input
23.8’ PCAP Touch Monitor
Size: 23.8”
Panel Mount or Vesa mount
Resolution: 1920x1080
Brightness: 350nits
Connectors: VGA+HDMI
Touch: PCAP10-Point
IP65Front
(Opt: Optical Bonding)
Enclosure: Stainless bezel + Metal Backside
PSU: DC12V/5A

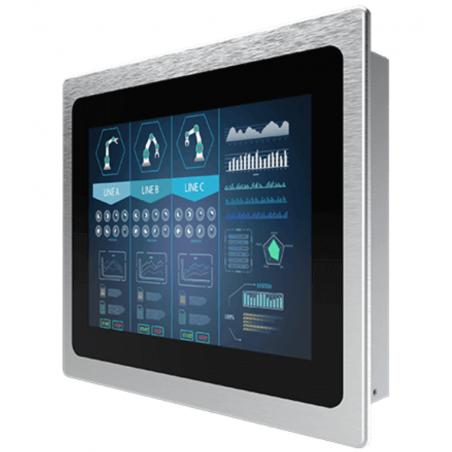

12.1" PCAP Touch Panel Mount Display
VGA + HDMI input
P-Cap Touch, I/O: USB
Operating temperature: -10~60℃ (-25~60℃ with heater solution)
Brightness: 1000 nits
Panel Mount
IP65 front
19" LCD monitor
Resolution: 1280 x 1024
5:4 format
IP65 front
250 nits
USB resistive Touch
1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
1 x Audio Input
for Panel mounting OPTION: wall/rack or desktop mounting
Dimensions: 482 x 55 x 380mm (with frame)
Cutout dimensions: 407.1 x 334.6mm
24V DC screw type
Weight: 6kg
450 nits TFT LCD screen
Resolution: 800 x 600
450 cd / m2 (type) / 600: 1 with LED backlight
1 x VGA (15 pin female D-sub)
1 x PC audio (jack)
1 x DC power plug
12V DC
Operating temperature: -30oC ~ 80oC
Weight: 2.5 KG
23.8" TFT-LCD Monitor
16:9 LCD with PCAP Touch
Brightness: 1000 Nits
50,000 HRS LED Backlight Life
Resolution 1920 x 1080 (FHD)
design with aluminum Die-Cast Frame
IP66 Front panel
video input: VGA, DVI-D, HDMI, DisplayPort
USB (default) or RS232 (option) for touch
Power supply: 3-pin 9 ~ 36VDC ( Not included)
Operating temperature: 0 ~ +60°C
15" 1600nits Open Frame Monitor for installation.
15" TFT LCD, panel
15" sunlight readable, high brightness (1,600 nits)
Resolution: 1024 x 768
LED backlight
High contrast ratio (1000:1)
Wide temperature range (-20°C~70°C)
12VDC
Low power consumption
BL MTBF: 70,000 hours
Siemens 6AV7862-2BE00-0AA0
DEMO MODEL - minor impact damage in the aluminum frame (corners)
19" HMI monitor with LED backlight 24V DC
Panel mounting
Widescreen display
Resolution: 1366 x 768
2 x USB 2.0
1 x VGA
1 x Display port (DP)
1 x USB touch interface
IP65 (front)
LED backlight
Touch: analog resistive
Mounting: VESA 100 x 100
Supply voltage: 24V DC
Operating temperature: 0 - 45 degrees
Dimensions: 473 x 297 mm
Mounting plate dimensions: 455 x 279 mm
24 "LCD metal monitor, IP66 front, IP20 rear
1920 x 1080
300 nits, 5000: 1, 16: 9
LED backlight
Response time: 25ms
viewing angle: 178 ° / 178 °
Capacitive touch, 4 points
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15 -Pin D-sub femlae)
1 x RS232 / 422/485 (software selectable terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
595 x 393 x 75 mm & nbsp;
Weight: 9.570 g
Desktop, Panel mounting, VESA mounting
Optional: RS-232: TxD, RxD, RTS, CTS , DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND
19 "LCD metal monitor, IP54 & nbsp; front,
1280 x 1024
300 nits, 2000: 1, 5: 4
LED backlight
Response time: 20ms
viewing angle : 178 ° / 178 °
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15-pin D-sub female)
1 x RS232 / 422/485 (software selectable terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
429 x 387 x 75 mm
Weight: 7,800 g
RoHS, CRoHS, WEEE
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx- , Rx +, Rx, GND & nbsp;
24 "TFT metal monitor with capacitive touch, IP66, IP20
LED backlight
Capacitive touch (PCAP), 4 points
1280 x 1024
Contrast: 700: 1, & nbsp; 1000 nits
Display angle: 160 ° / 140 °
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS-232 (DB9 male)
1 x Optional RS232 / 422/485
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Desktop, Panel mounting
6,100 g, 429 x 387 x 75 mm
-40 to 70 ° C
CISPR 32, FCC Part 15B Class A
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND < Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx -, Rx +, Rx, GND
24 "TFT metal monitor with capacitive touch, IP66, IP20
LED backlight
1280 x 1024
1000 nits, 700: 1, 4: 3
Display angle: 160 ° / 140 °
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS-232 (DB9 male)
1 x Optional RS232 / 422/485
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Desktop, Panel mounting
Weight: 6,100 g
429 x 387 x 75 mm
-40 to 70 ° C
CISPR 32, FCC Part 15B Class A
EN 55032/24
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND < Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx -, Rx +, Rx, GND
24 "TFT monitor LED backlight, IP66
LED backlight
1280 x 1024
300 nits, 5000: 1, 16: 9
Display angle: 178 ° / 178 °
3 x BNC
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS232 / 422/485 (software selected terminal blocks)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Panel mounting
-15 to 55 ° C (5 to 131 ° F)
CISPR 32, FCC Part 15B Class A
EN 55032/24
weight: 12000 g
647 x 414 x 95 mm
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND < br> Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx -, Rx +, Rx, GND
26 "TFT metal monitor, LED backlight, IP54
1920 x 1200
300 nits, 1500: 1, 16:10
Response time: 15Ms
Display angle: 176 ° / 160 ° < br> 1 x DVI-D (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS232 (DB9 male)
1 x RS232 / 422/485 (software selected terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
Desktop, Panel mounting, VESA mounting
CISPR 32, FCC Part 15B Class A
EN 55032/24
621 x 444 x 90 mm
weight: 12,650 g
Optional: RS-232: TxD, RxD , RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND < br> Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND
