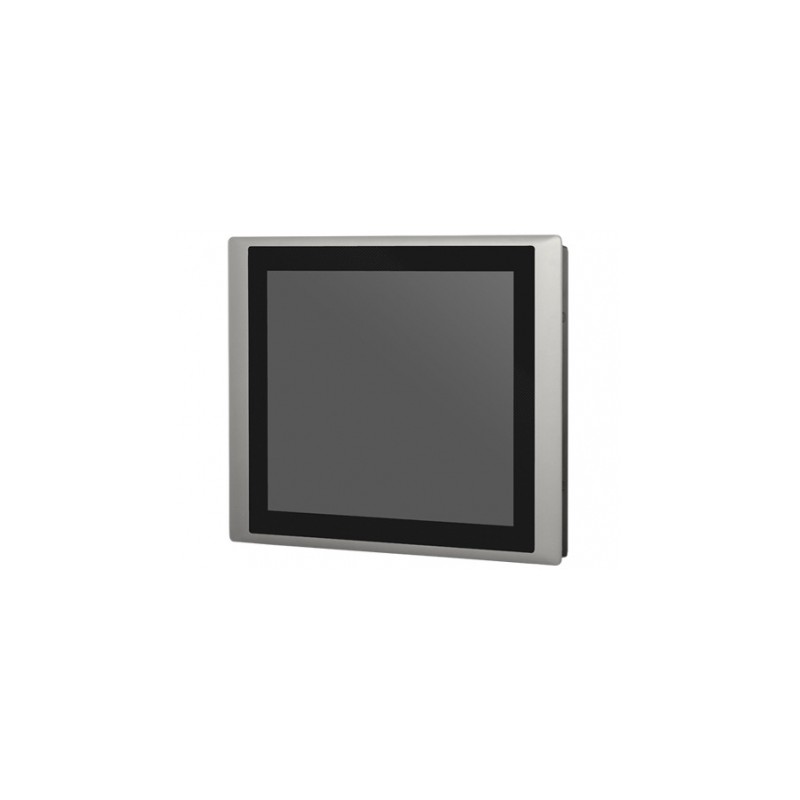

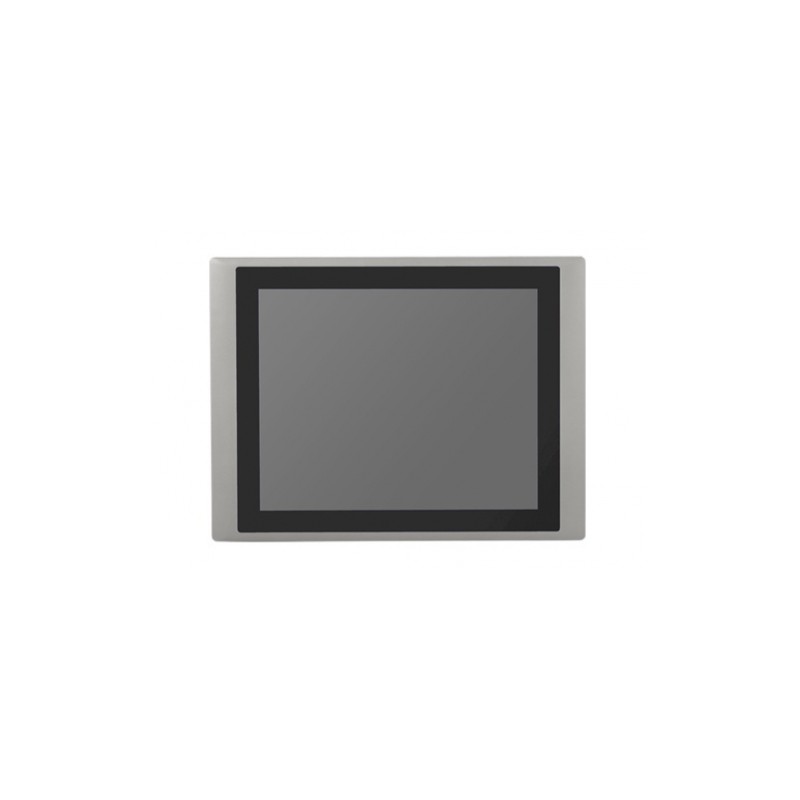

17" Monitor TFT-LCD, Projected Capacitive Touch (PCAP), IP65 front, VGA, DVI-D, DisplayPort, 9~48VDC

  • Pack

17 "TFT SXGA 5: 4 LCD Capacitive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1280 x 1024 (SXGA)
1x VGA, 1X DVI-D, 1x DisplayPort
350 NITs Brightness
Aluminum Front
IP65 Compatible front panel
9 ~ 48VDC via 3-pin Terminal Block
Panel, Vesa Mount

This pack contains

I/O Module for Industrial display
x 1
17" Modular monitor
x 1
MON17-CDS
8,350.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

MON17-CDS is 17" LCD display module with projected capacitive touch. It offers resolution up to 1280x1024 (SXGA) and 350 nits brightness. MON17-CDS features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, MON17-CDS allows you to configure, upgrade and maintain your Convertible Display System easily.

Driftstemperatur
-20 ~ +80°C
Forsyning
9~48VDC via 3-pin Terminal Block
Indgang
1x VGA, 1x DVI-D, 1x DisplayPort
IP-Tæthed
IP65 Compliant Front Panel
