Analog TV RF signal
image from analog camera can be displayed on analogue TV channel
band UHF - band IV - 427 - 643MHz (from CH 21 - 37)
Band UHF - band V - 649 - 877MHz (from CH 38 - 69)
Channel selection with pushbutton - Remember setting
LED Channel Display

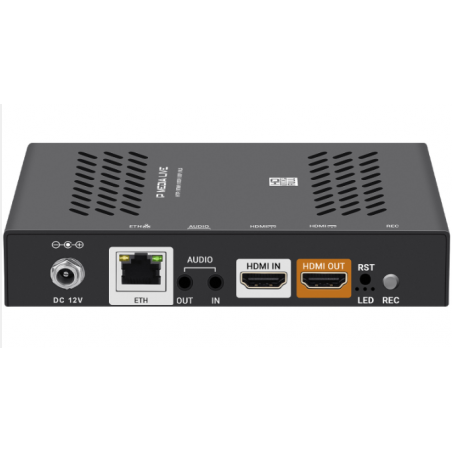

HDMI input, the latest H.265 architecture
Input: 1920 x 1080p to 640 x 480i @ 30Hz
supporting Windows and Linux
supports RTSP / RTP / RTMP / HTTP / UDP unicast and multicast
Coding: BASELINE / MAIN PROFILE / HIGH PROFILE H.265
Audio MP3, AACRate Control CBR / VBR 16KBIT / S ~ 12Mbit / S
Video inlay: A mode: FFMPEG, B mode: VLC
Transmission: TCP, UDP, 1000M (RJ45 duplex network port)
Support WEB access in English, change of PW, WAN remote management (WEB)
Supports OSD in English
Adjustable coordinates: 1920x1080
Support DHCP automatically receive IP
Support decoder set-top box
Designed with low power consumption
Supply voltage: 12VDC 5Watt
Dimensions: 103 x 70 x 25 mm
HDMI input, the latest H.265 architecture
Input: 4K 3840 x 2160 to 640 x 480i @ 30Hz
supporting Windows and Linux
supports RTSP / RTP / RTMP / HTTP / UDP unicast and multicast
Coding: BASELINE / MAIN PROFILE / HIGH PROFILE H.265
Audio MP3, AACRate Control CBR / VBR 16KBIT / S ~ 12Mbit / S
Video inlay: A mode: FFMPEG, B mode: VLC
Transmission: TCP, UDP, 1000M (RJ45 duplex network port)
Support WEB access in English, change of PW, WAN remote management (WEB)
Supports OSD in English
Adjustable coordinates: 1920x1080
Support DHCP automatically receive IP
Support decoder set-top box
Designed with low power consumption
Supply voltage: 5VDC 5Watt
Dimensions: 103 x 60 x 15 mm
