Power 650 W

Form factor ATX12V V3.1

80 PLUS certification Gold, Efficiency ≥ 90% at typical load

MB (Motherboard) 24-pin: 1 cable / 1 connector (550 mm)

CPU 8-pin + CPU 4+4-pin: 1 cable / 8-pin ×1 + 4+4-pin ×1 (755 mm)

PCIe 6+2-pin: 1 cable / 2 connectors (655 mm)

SATA connector: 1 cable / 4 connectors (965 mm)

Molex (4-pin) + additional SATA: 1 cable / Molex ×2 + SATA ×2 (965 mm)

+12 V rail 54.17 A

Dimensions 140 × 150 × 86 mm

Cables Not fully modular (fixed cable bundle)

Comprehensive protection functions: OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), OTP (Over Temperature Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), SIP (Surge/Inrush Protection) and NLO (No Load Operation).

Compact format: 140 × 150 × 86 mm, making it easier to integrate into smaller cabinets.

Input voltage 100-240 V AC, current 8-4 A

SATA
P4 plug connector Xeon
PCI-Express
Supply Voltage 100-240 VAC
H x W x D: 150 x 86 x 170 mm

Input 90~264Vac Auto
Internal 8 cm fan with IEC 62368 standard vents opening
Low Ripple Noise
Support OCP, OTP and OVP circuit protection
Short circuit protection on all outputs
Resettable power shut down
MTBF:100K hours at 25°C

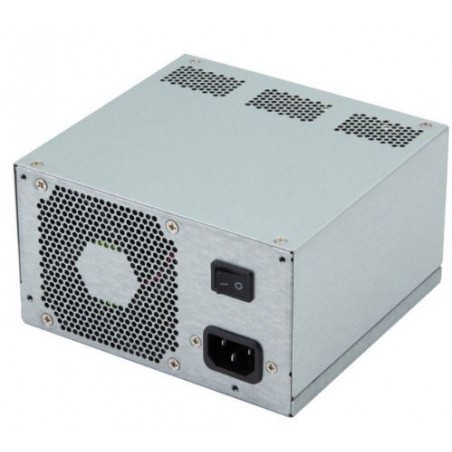

100% under high ambient temperature (50°C)80 plus bronze
350watt
ATX
PS2 format
industrial
H 86 x B 150 x D 140

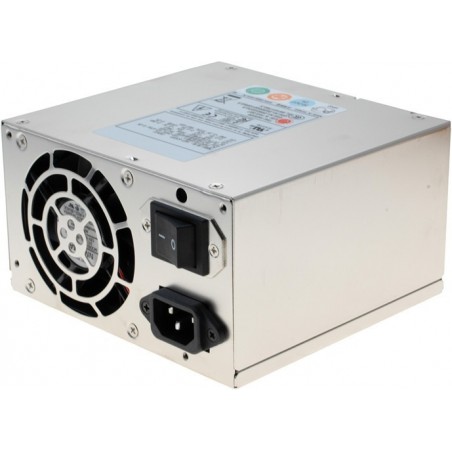

300 W ATX PSU with P4
Auto 110V/230V
20 pins
Ball bearing DC fan
Low noise
Dimensions: H 86 x W 150 x D 140

12V DC ATX

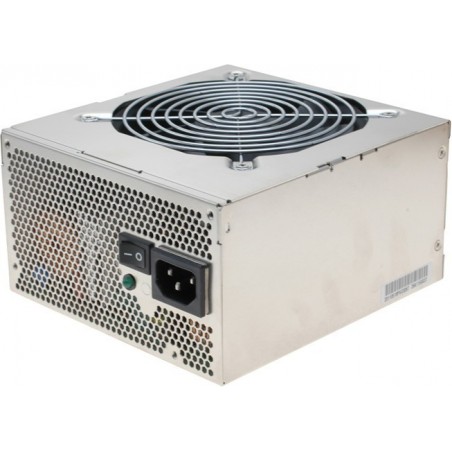

1200 W ATX med P4, PCI-Express og SATA
VOLTAGE：90～264VAC
FREQUENCY： 47～63HZ
INPUT CURRENT：15 (RMS) FOR 120 VAC / 8A (RMS) FOR 230 VAC
INRUSH CURRENT：40A MAX. FOR 120 VAC / 80A MAX. FOR 230 VAC
PFC CAN REACH THE TARGET OF 95% @230VAC, FULL LOAD
HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 12mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGEEFFICIENCY：TYPICAL 80-85% AT 25℃ 115V FULL LOAD
POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS
OVER POWER PROTECTION：TRIP POINT TOTAL POWER MIN. 110%, MAX. 150%
OVER VOLTAGE PROTECTION：+5V→5.8V～6.7V, 3.3V→3.6V～4.3V, +12V→13.2V～15V
OVER CURRENT PROTECTOIN: +3.3V→37.4~51A, +5V→37.4~51A, +12V→110~150A
SHORT CIRCUIT ：+5V、-5V、+12V、-12V、+3.3V
RESTART AFTER PROTECTION
TEMPERATURE RANGE：OPERATING 0℃～40℃
LEAKAGE CURRENT: 1.5MA MAX. AT NOMINAL VOLTAGE VAC
EMI NOISE FILTER : FCC CLASS B , CISPR22 CLASS B
SAFETY : TO MEET UL, CUL, TUV, CCC
REMOTE ON/OFF CONTROL
160x150x86(mm)
