24Vdc 300 Watt ATX power supply PS/2
300 W ATX for 24 VDC, with P4 and PCI-express connector
Dimensions: H 85 x W 150 x D 140

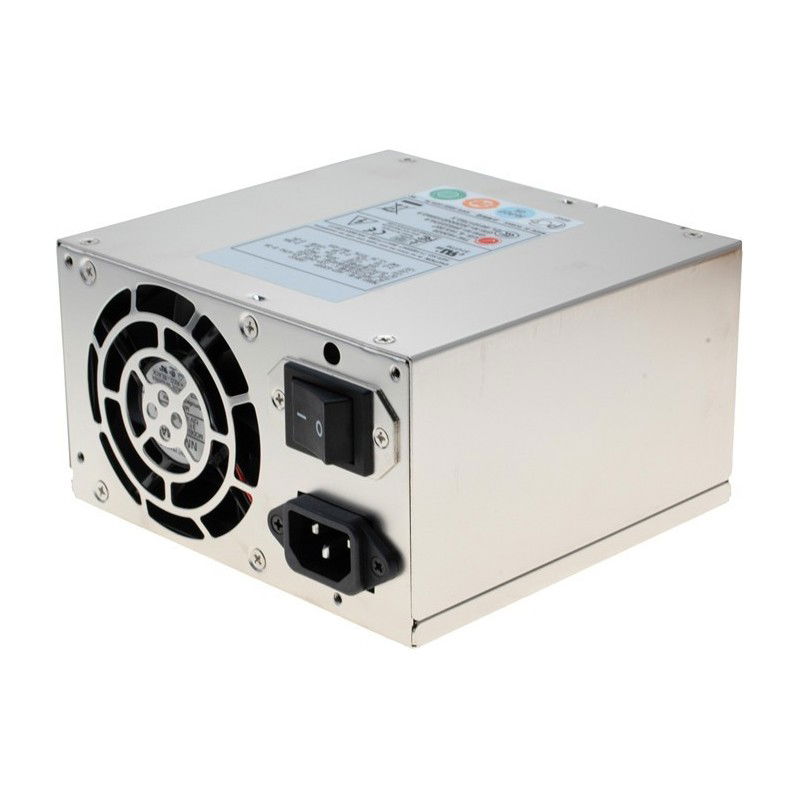

300 W ATX PSU with P4
Auto 110V/230V
20 pins
Ball bearing DC fan
Low noise
Dimensions: H 86 x W 150 x D 140
300 W ATX for 24 VDC, with P4 and PCI-express connector
Dimensions: H 85 x W 150 x D 140
1200 W ATX med P4, PCI-Express og SATA
VOLTAGE:90~264VAC
FREQUENCY: 47~63HZ
INPUT CURRENT:15 (RMS) FOR 120 VAC / 8A (RMS) FOR 230 VAC
INRUSH CURRENT:40A MAX. FOR 120 VAC / 80A MAX. FOR 230 VAC
PFC CAN REACH THE TARGET OF 95% @230VAC, FULL LOAD
HOLD UP TIME:WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 12mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGEEFFICIENCY:TYPICAL 80-85% AT 25℃ 115V FULL LOAD
POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS,OFF DELAY 1mS
OVER POWER PROTECTION:TRIP POINT TOTAL POWER MIN. 110%, MAX. 150%
OVER VOLTAGE PROTECTION:+5V→5.8V~6.7V, 3.3V→3.6V~4.3V, +12V→13.2V~15V
OVER CURRENT PROTECTOIN: +3.3V→37.4~51A, +5V→37.4~51A, +12V→110~150A
SHORT CIRCUIT :+5V、-5V、+12V、-12V、+3.3V
RESTART AFTER PROTECTION
TEMPERATURE RANGE:OPERATING 0℃~40℃
LEAKAGE CURRENT: 1.5MA MAX. AT NOMINAL VOLTAGE VAC
EMI NOISE FILTER : FCC CLASS B , CISPR22 CLASS B
SAFETY : TO MEET UL, CUL, TUV, CCC
REMOTE ON/OFF CONTROL
160x150x86(mm)
SATA
P4 plug connector Xeon
PCI-Express
Supply Voltage 100-240 VAC
H x W x D: 150 x 86 x 170 mm
