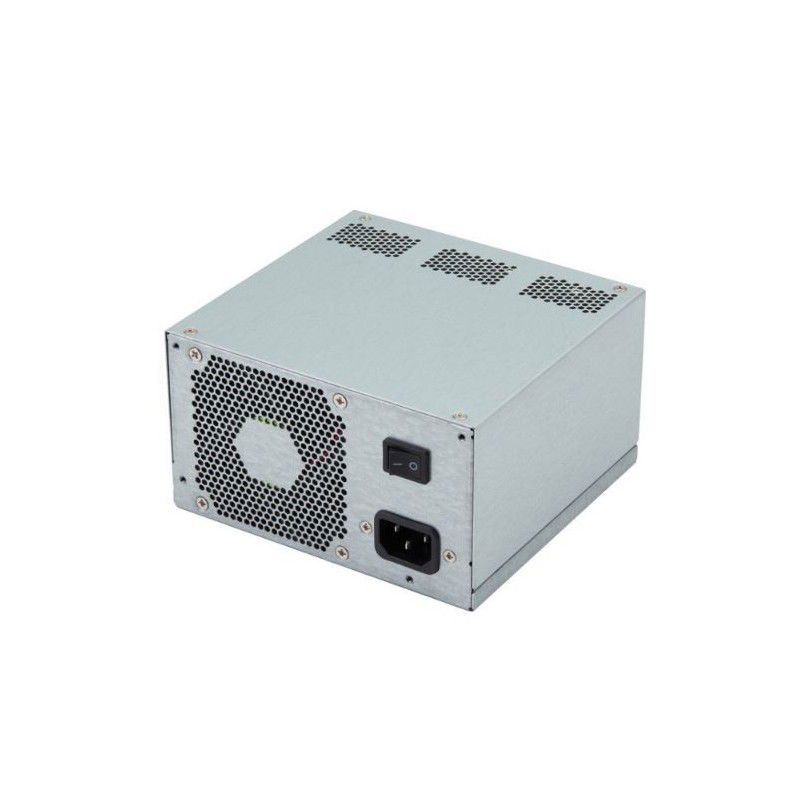

350 Watt ATX PS/2 power supply with -5Volt without fan on top

Input 90~264Vac Auto
Internal 8 cm fan with IEC 62368 standard vents opening
Low Ripple Noise
Support OCP, OTP and OVP circuit protection
Short circuit protection on all outputs
Resettable power shut down
MTBF:100K hours at 25°C
100% under high ambient temperature (50°C)80 plus bronze
350watt
ATX
PS2 format
industrial
H 86 x B 150 x D 140

PS350ATX+Y
1,249.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

PS350ATX+Y is an industrial power supply. The power supply offer easy maintenance and the total power capacity up to 350 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

Andet
Over current protection 3.3V:50mV p-p 5V:50mV p-p 12V1:120mV p-p 12V2:120mV p-p -12V:120mV p-p 5Vsb:50mV p-p -5V:100mV p-p
Approval
EN62368
Dimensioner
140 x 150 x 86mm
Effekt
350 Watt
Forsyning
90-264Vac, 47-64Hz, 115Vac@6A, 230Vac@3A
Luftfugtighed
Operating : 85% to % RH, Non-condensing Storage : 95% to % RH, Non-condensing
MTBF
100.000 houers of continuous operation at 25C max. output load
Output
+3.3Vdc output : +3.7 Vdc minimum, + 4.8Vdc maximum +5Vdc output : +5.7 Vdc minimum, + 7Vdc maximum +12Vdc output : +13.3 Vdc minimum, + 16Vdc maximum
Støj
115V-rms/230V-rms 5V 20ms Maximum 115V-rms/230V-rms 12V 20ms Maximum
Temperatur
Operating : 0 to +50℃ Storage :-20 to +80℃
