Receiver module for HDMI-MULTI4K6-T transmitter

4K60Hz ultra-high quality video transmitter with 60 frames per second

Supports IR extension for video source control

Supports RS232 bidirectional remote expansion

With 4 x USB 2.0 - can transfer Touch

The selectable 64-channel DIP switch for multi-casting group selection

1-to-1, 1-to-many, and multicasting broadcasting architectures

Add more displays without increasing LAN bandwidth load

Supports 4K60 (3840 x 2160) or 1080p HDMI resolution

HDCP compliant

For screen resolutions from XGA, SXGA, UXGA, WSXGA and Full HD to 4K system

Output video rotation

Supports HDMI with 2-channel audio or external audio in and out

Easy installation and administration

Supports USB for KVM PC control

IEEE 802.3af/at PoE+ function supported; no additional power supply required

Supports 802.1X function (future function)

Automatic EDID configuration

Friendly web interface for ease of use

Supports multi-casting group with Gigabit Managed Switch

Switch must have IGMP snooping and Jumbo Frame functions

Transmitter module for HDMI-MULTI4K6-R receiver

4K60Hz ultra-high quality video transmitter with 60 frames per second

Supports IR extension for video source control

Supports RS232 bidirectional remote expansion

With 4 x USB 2.0 - can transfer Touch

The selectable 64-channel DIP switch for multi-casting group selection

1-to-1, 1-to-many, and multicasting broadcasting architectures

Add more displays without increasing LAN bandwidth load

Supports 4K60 (3840 x 2160) or 1080p HDMI resolution

HDCP compliant

For screen resolutions from XGA, SXGA, UXGA, WSXGA and Full HD to 4K system

Output video rotation

Supports HDMI with 2-channel audio or external audio in and out

Easy installation and administration

Supports USB for KVM PC control

IEEE 802.3af/at PoE+ function supported; no additional power supply required

Supports 802.1X function (future function)

Automatic EDID configuration

Friendly web interface for ease of use

Supports multi-casting group with Gigabit Managed Switch

Switch must have IGMP snooping and Jumbo Frame functions

Video Bandwidth: 225 MHz / 6.75 Gbps to 8 x HDMI female
Resolutions: 480i to 1080p
Audio: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Sampling frequency of audio: 32 ~ 192 kHz
Outputs 8 x HDMI
8 x uncompressed AV and data

8 channel HDMI input module for Video MATRIX
Video bandwidth: 225 MHz / 6.75 Gbps
Input ports: 8 x HDMI
video resolutions: 480i to 1080p @ 60Hz
Audio LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Sampling frequency of audio: 32 ~ 192 kHz
integration module - plug-in

HDMI, HDCP and DVI compatible 32 x 32 MATRIX
Modular - input and output modules
Input and output modules can be mixed and added to 8 × 8 input module and output module
4 input and 4 output modules with HDMI, DVI
VGA module is only input
Supports a wide range of PC and HDTV resolutions from VGA to WUXGA
480i to 1080p and 4K2K @ 24/25/30 Hz
Control of the matrix via the front panel, RS-232, Telnet, WebGUI controls
10 available preset settings
3 EDID modes: Standard, Dynamic and Manuel
Power supply with redundancy
HDMI cable up to 15 m
HDbaset 5Play ™ convergence support HD video, HD audio, PoC
Ethernet and IR / RS-232 control

8 x HDMI inputs to 1 HDMI output
The 8 inputs can be combined into 10 variants
Seamless switching of HDMI signal
RJ45 output for remote HDMI receiver
Supports Audio switching
Resolution: up to 4K @ 30Hz input
IR remote control for output mode selection
Bandwidth: 6.75Gbps
Operating temperature: 0 - + 40 ° C
Supply voltage: 12VDC PSU included
Consumption: 12Watt
Cable Distances, max .: 8m Input, output 10m
Dimensions: 367 x113 x 17 mm | Weight: 680g

4 x HDMI inputs for 1 HDMI output
The 4 inputs can be combined into 10 variants
Seamless switching of HDMI signal
Supports Audio switching
Resolution: up to 4K@30Hz input
Supports IR remote control
Push buttons on the front for output mode selection
Bandwidth: 6.75Gbps
Operating temperature: 0 - +40°C
Supply voltage: 12VDC PSU included
Power consumption: 8 Watts
Cable distances, max.: Input 8m, output 10m
Dimensions: 191 x 113 x 17 mm
Weight: 480g

HDMI Matrix over IP.
Video Wall configuration
Setup with DIP switches (TX-RX Pair)
Max 24 transmitters and 96 receivers (contact us for buying TX or RX units separately.) < br> HDMI 1.3, HDCP 1.3.
HDMI loop out to the local monitor
Resolution 1080p @ 60/50/30/25 / 24Hz, 720p @ 60 / 50Hz.
point to point over Cat 6. Maximum . 100meter. Point to many Hotels can be supplied via PoE (802.3af) or 12VDC 1A (PSU included).
Power Consumption: 2.5W.
Switch must support protocol: IGMP Snooping or IFMP.
Delay: 120ms
Operating temperature: 0 ~ 40 ° C.

16 port 4K HDMI Multi-Viewer
16 x HDMI in with 1080p
1 x HDMI out 4K @ 30Hz
HDMI 1.4, HDCP 1.4, DVI 1.0
PIP, PAP, Full Screen, Dual Mode and Quad Mode
Change via pushbutton or IR

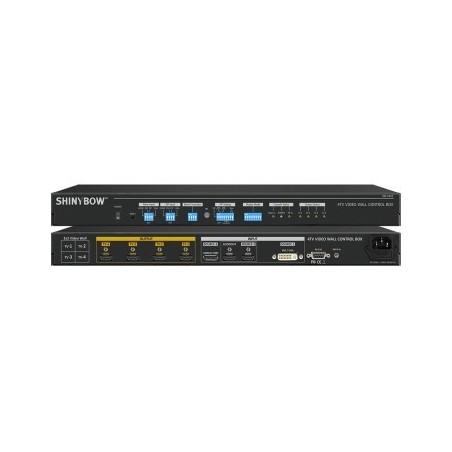

4K2K Video Wall kontroller boks til 4 skærme med HDMI
Visnings-opsætning med DIP-switche
3 indgange HDMI, DisplayPort, DVI-I (VGA) og YPbPr
4 x HDMI udgange
Kan kaskadekobles til flere kontrollere - large-scale video wall
Mange visnings-muligheder - landskab/portræt
30 pre-definerede playback modes
4K2K HDMI loop out port - kaskadeforbindelse
Har PIP og and POP
Dynamisk aspect justering uden forvrængning
Power on/off via signal detektering
Ingen software kræves

HDMI video transmitter PoE
Suitable for video wall
With HDMI Loop Out
Delay of approx. 1 second from transmitter to receiver
HDMI 1.4a - H.264
By IP multicast use switch with IGMP Snooping
Range up to 100m
Cables Kat. 5th / 6
EDID Emulation
IR Transfer
1 x RJ45, 1 x DB-9, 1 x HDMI Input, 1 x HDMI Output
Supply IEEE 802.3af / at PoE +; 5V DC, 2A (not supplied)
As receiver, use HDMI-MULTI-HD-M

HDMI Video Receiver with PoE
Transmitter Module is purchased: HDMI-Multi-HD-T
Video Wall with a maximum of 64 units
H.264 Video Encoder / Decoder, IR transfer
Delay of approximately 1 second from transmitter to receiver
HDMI 1.4a
Connection over IP - Use switch with IGMP Snooping
Max. 64 Groups
Range Up to 100m - Point to Switch or to Transmitter
Cables Cat 6a. Good quality
Edid Emulation - possibly not on all screens, then buy it from Danbit
1 x RJ45, 1 x DB-9, 1 x HDMI exits
Supply IEEE 802.3AF / to POE + or 5V DC, 2a (not included)
Requires quality switch When used over IP
Dim: 130 x 82 x 30 mm

4K HDMI/USB video receiver PoE over LAN
Suitable for Video wall
Use Multi casting switch (IGMP Snooping)
1080p or 4K (3840 x 2160) HDMI resolution
HDMI 1.4a - approx. 0.1 second delay between transmitter and receiver
1 x RJ45, 1 x DB-9 female, 1 x HDMI female
4 x USB 2.0 type A (mouse/keyboard/USB touch)
Can be fitted up to 8 x 16 video wall
Transmitter/receiver selector - 16 channels (DIP)
Supply: IEEE 802.3af/at PoE+; 12V DC 3A (not included)
Range up to 100m over direct Cat. 5e/6 UTP cables
EDID emulation and IR transfer
As transmitter, use HDMI-MULTI4K-T

Controller / video wall / splitter
Input: 1x Display Port, 1x HDMI + 1 Loopout, 1x DVI
Output: 4x HDMI
Supports HDMI, DVI, Display Port, VGA and YPbPr signals
4K / 2K HDMI
4K image split in 4 x HDMI outputs
PIP (picture in picture) and POP (side by side) multi function
HDMI audio
Supports YPbPr video via VGA input port as well as DVI-D, VGA & amp; HDMI by DVI-I input port
High end 3D motion
Managing via remote or RS232port

4 x HDMI inputs to 4 x HDMI outputs
Viewing the screens 4 are summarized on a screen
display screen 1 distributed over 4 skærme
Can used with DVI adapters
