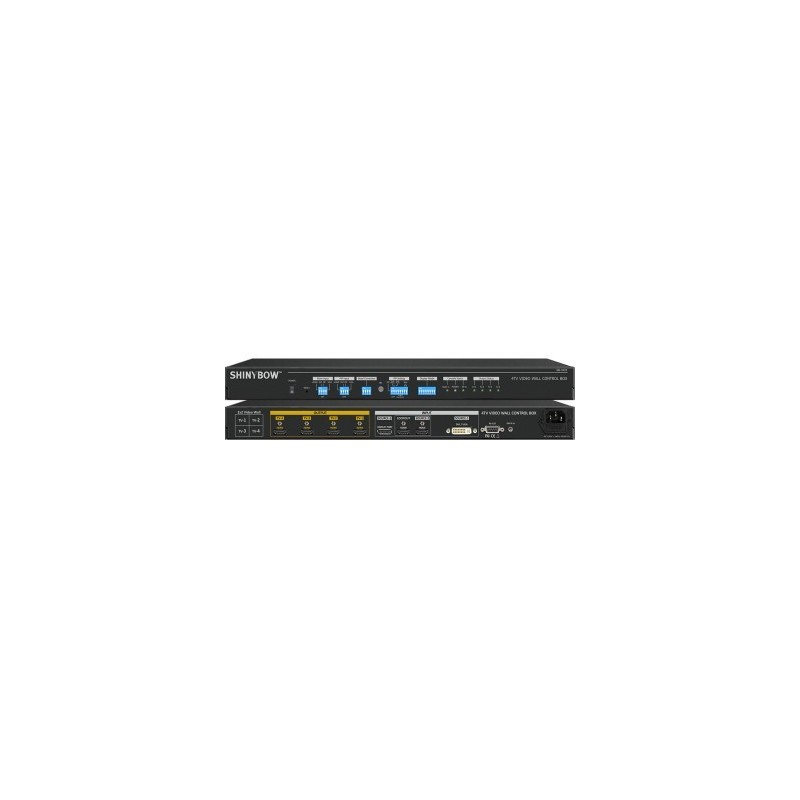

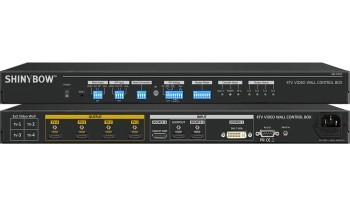

4K Video Wall controller 4 x HDMI udgange, HDMI, DP, DVI-I indgang, kan kaskadekobles

4K2K Video Wall kontroller boks til 4 skærme med HDMI
Visnings-opsætning med DIP-switche
3 indgange HDMI, DisplayPort, DVI-I (VGA) og YPbPr
4 x HDMI udgange
Kan kaskadekobles til flere kontrollere - large-scale video wall
Mange visnings-muligheder - landskab/portræt
30 pre-definerede playback modes
4K2K HDMI loop out port - kaskadeforbindelse

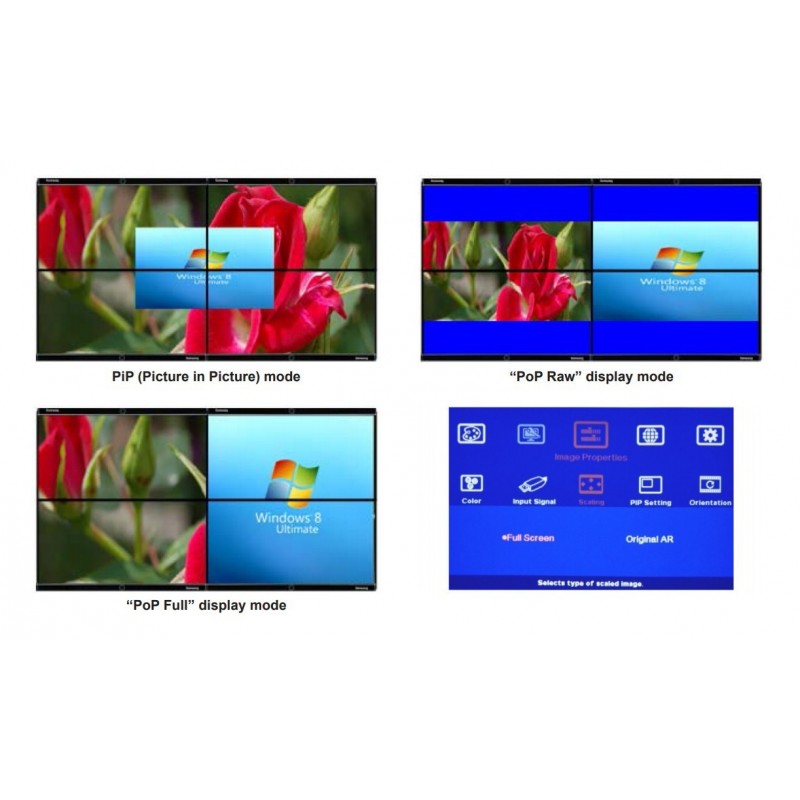

Har PIP og and POP
Dynamisk aspect justering uden forvrængning
Power on/off via signal detektering
Ingen software kræves

HDMI-WALL4K
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The HDMI-WALL4K is taking irregular creative video walls to a new level. Combining pre-defined playback modes, unlimited cascades and friendly OSD operation, it can create all kinds of playback modes for regular, portrait and irregular video walls with different sizes, resolutions and bezels at any angle and position without a PC or software. Conventional TVs and monitors can be used as display devices. Users will benefit from its flexibility and ease-of-use. The HDMI-WALL4K is a pure hardware standalone system. It can connect with various video sources and provide a simple and reliable solution for professional creative video walls.

Dimensioner
442 x 162 x 44mm, optional rack monting kit
Forsyning
100 - 240VAC
Opsætning
Med DIP-Switche, med OSD visning
Video
Supporterer HDCP
Video
4 x HDMI
Video
3840 x 1080 @ 60Hz, 4:4:4 sampling

4 other products in the same category:

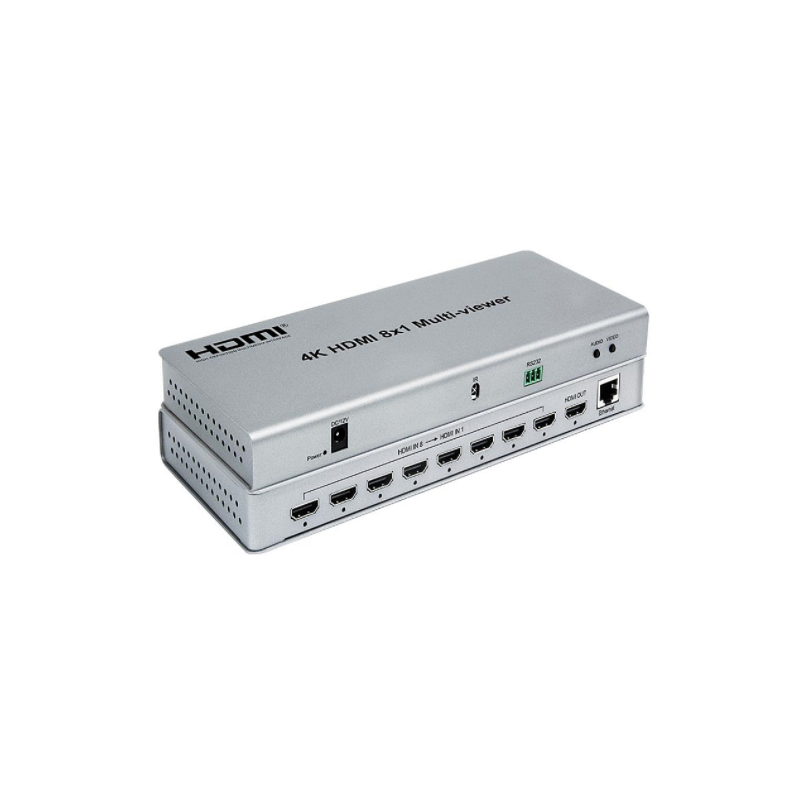

4K HDMI 8X1 Multiviewer...
