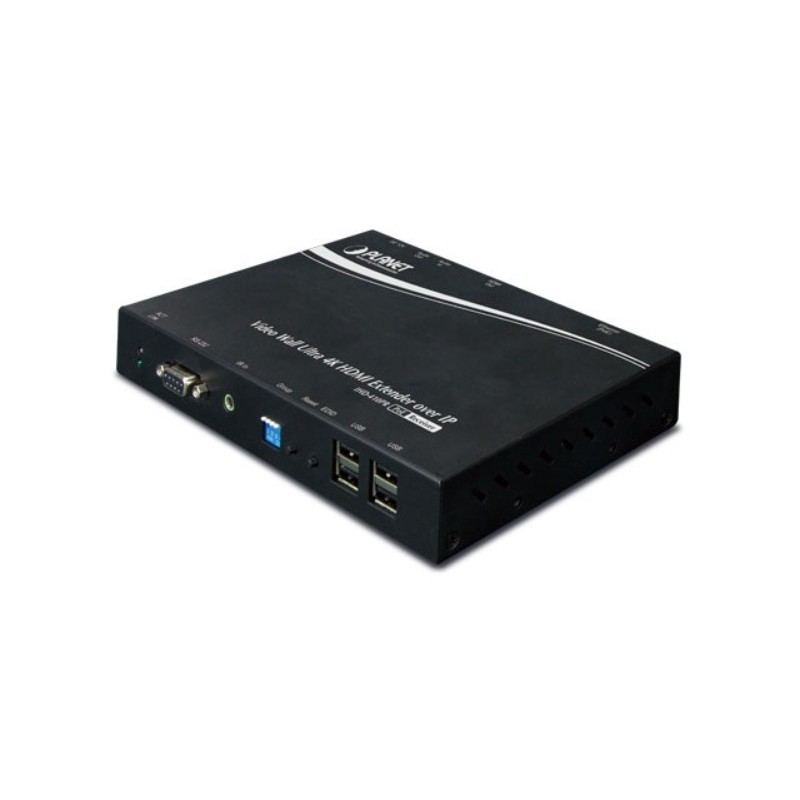

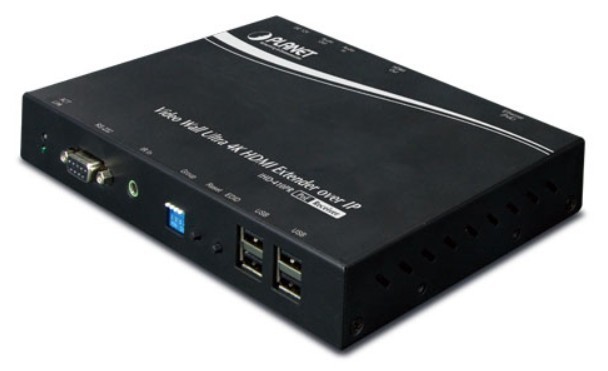

HDMI 4K Extender over LAN and Direct with PoE, Receiver Module, with USB

4K HDMI/USB video receiver PoE over LAN

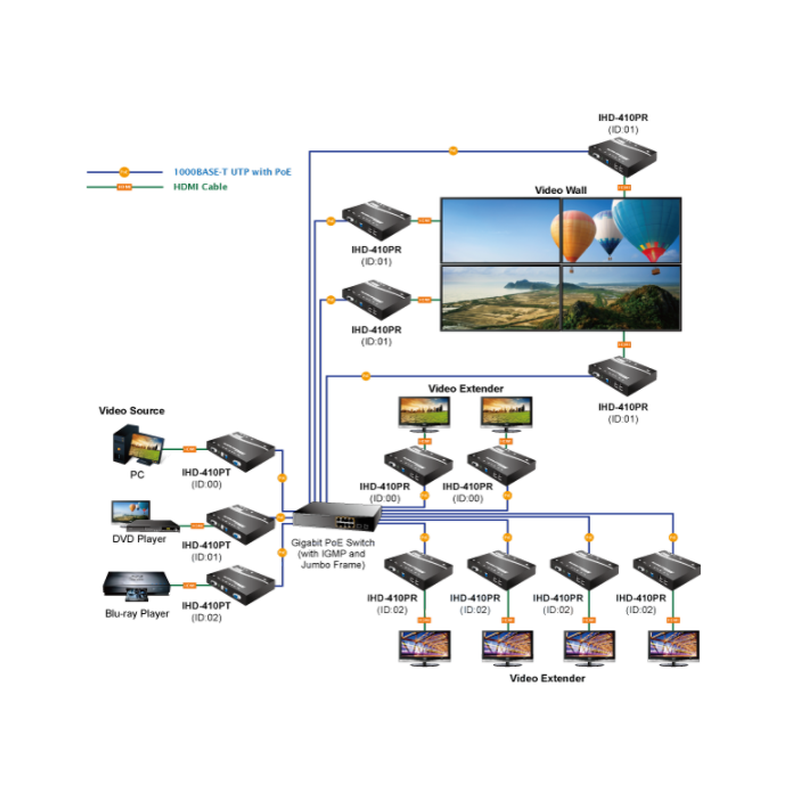

Suitable for Video wall
Use Multi casting switch (IGMP Snooping)
1080p or 4K (3840 x 2160) HDMI resolution
HDMI 1.4a - approx. 0.1 second delay between transmitter and receiver
1 x RJ45, 1 x DB-9 female, 1 x HDMI female
4 x USB 2.0 type A (mouse/keyboard/USB touch)
Can be fitted up to 8 x 16 video wall
Transmitter/receiver selector - 16 channels (DIP)
Supply: IEEE 802.3af/at PoE+; 12V DC 3A (not included)
Range up to 100m over direct Cat. 5e/6 UTP cables
EDID emulation and IR transfer
As transmitter, use HDMI-MULTI4K-T

HDMI-MULTI4K-R
3,588.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

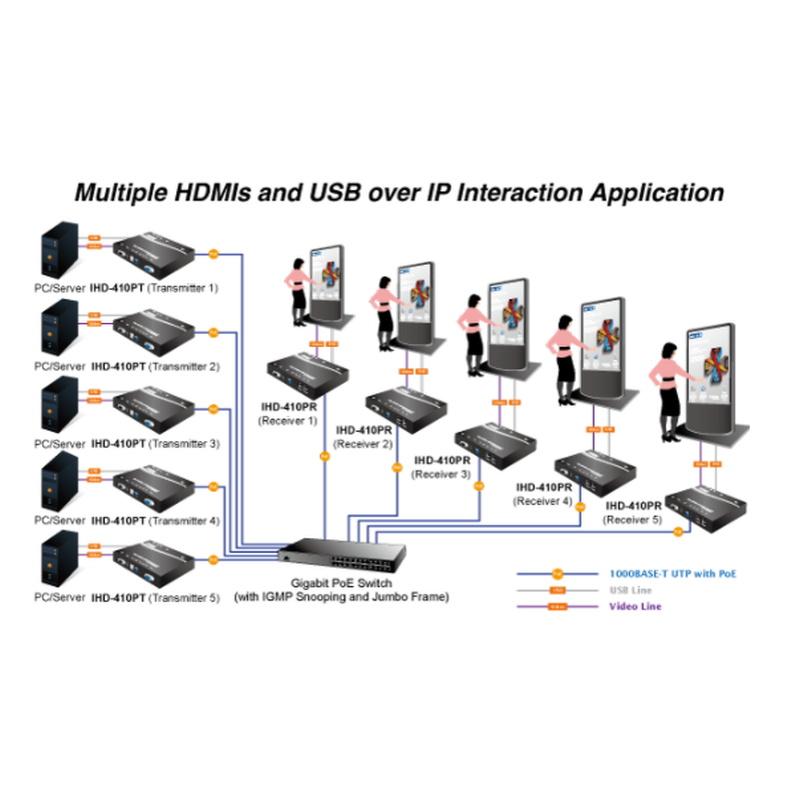

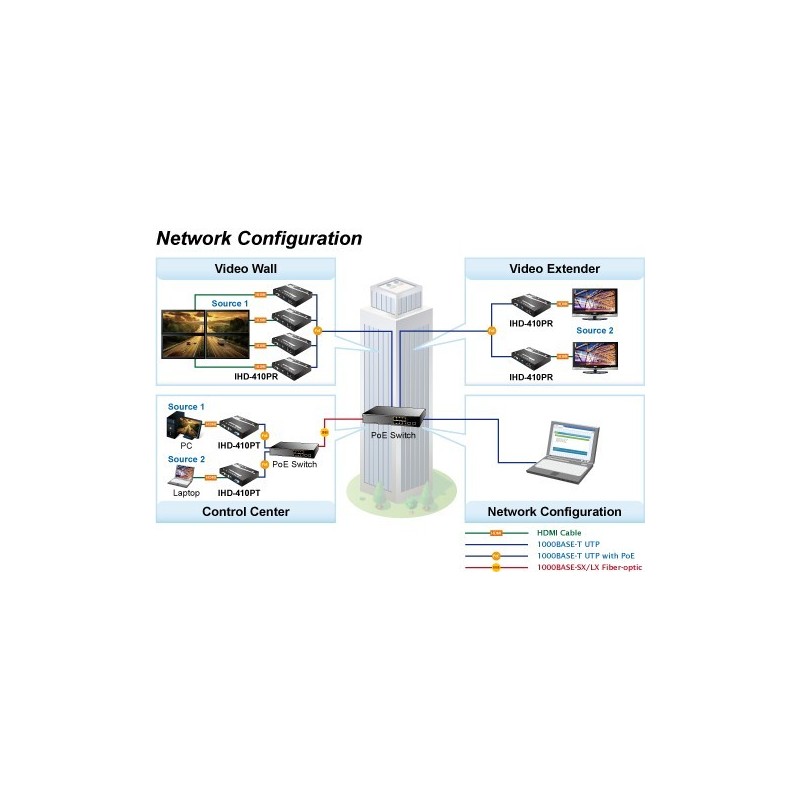

HDMI/Video Wall over IP with PoE delivers excellent 4K video streaming.
Must be used together with one or more transmitter modules HDMI-MULTI4K-T

HDMI-MULTI4K-R can be used in existing networks, which, however, require IP Multicast policies to be supported by the switches in the network (IGMP snooping) to avoid disturbances.
Purchase external power supply if no PoE - DC12V/3A-RQ

Andet
EDID (Extended Display Identification Data) function
Båndbredde
Approximately 275Mbps@ 4K 30Hz
Dimensioner
194 x 114 x 28 mm
Driftstemperatur
0-55°
Forsyning
IEEE 802.3af/at PoE+ 12V DC, 2A
HDMI
HDMI 1.4a
Kabel
Cat5e/6 UTP cable
Kanaler
DIP (16 channels)
LED
ACT LED x 1 Link LED x 1
Lyd
HDMI: 2-ch uncompressed audio
Opløsning
HDMI Video:4K (3840x2160) @ 30/24 Hz 1080p @ 60/50 Hz 1080p @ 30/25 Hz 1080i @ 60/50 Hz 720p @ 60/50 Hz 480p @ 60/50 Hz 480i @ 60/50 Hz VGA Video:1080p @ 30/25 Hz 1080i @ 60/50 Hz 720p @ 60/50 Hz 480p @ 60/50 Hz 480i @ 60/50 Hz
Porte
1 x RJ45, 1 x DB-9 female, 1 x HDMI female
Protokol
TCP, UDP, RTSP, RTP, DHCP, IGMP Snooping, Multicast, IPv4
Rækkevidde
100 meters (330 feet) over CAT5e/6 cable
Sikkerhed
HDCP compliant
Standarder
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3af/at PoE+
USB
USB 2.0 type A x 4 (For mouse/keyboard)
Video
Visual lossless compression
Weight
620 g
