Max. 1920 x 1200 pixels
1 x KVM Extender Console Unit - Remote module
1 x KVM Extender Computer Unit - Local module
1 x 12V DC Power supply included for remote module
1 x KVM cable ( VGA)
USB (2 on Console Unit, 2 on PC Unit)
Only VGA and USB Mouse / Keyboard Transfer
Does Not Transmit Touch from Monitor
USB is only for mouse and keyboard
For point RJ45 network cable up to 200 meters
with Edid Emulation
2 controls for the same PC
Video adjustment

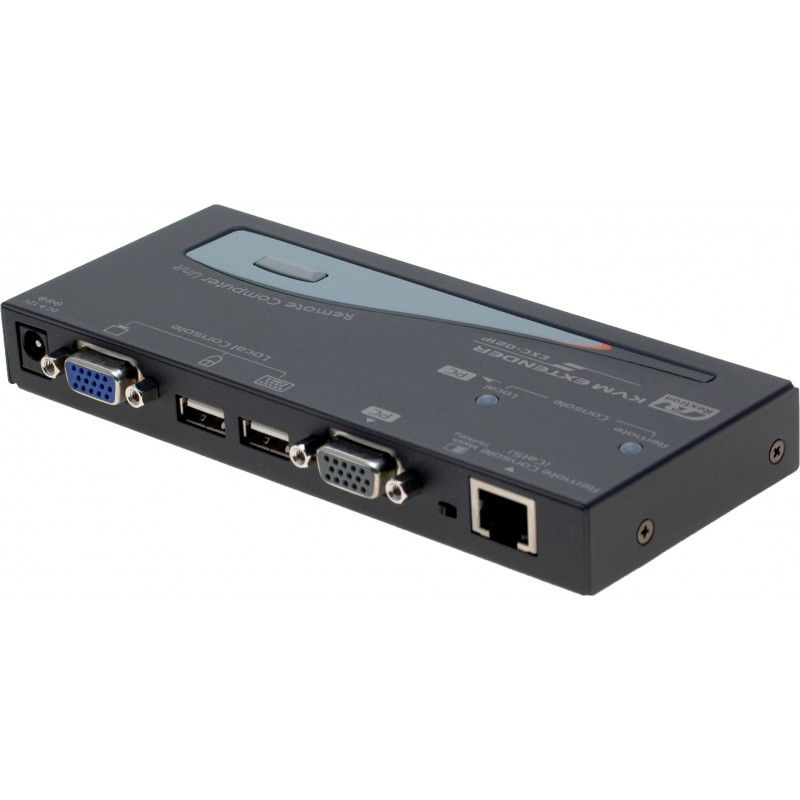

Boost 200 is a KVM extension (Keyboard Video Mouse), which consists of a local and remote module, so a PC or server can be operated locally or up to 200 meters away via a stp (shielded) network cable. Boost 200 transfers the signals for both mouse and keyboard and image in full HD with highest resolution (WUXGA) 1920 x 1200 and (UXGA) 1600 x 1200 points. Is equipped with a good image compensation.
IMPORTANT: Can emulate missing edid with programming of desired image resolution - is a requirement at Win7 and later.
PC or server connected to Boost 200 can either be with USB or PS / 2 Connection. If the PC has PS / 2 outputs, use 1 pcs. k-boost200-p as well as 2 pcs. CNV USB PS2 + one for the local module and one for the remote module. Keyboard and mouse must be with USB, also for PCS with only PS2.
included 1 pc. Multicable from Extender to PC with VGA and USB connector
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable
KVM kabel m/2 x PS/2 hanstik og 1 x DB15HDM, 1.8 m
Multikabel fra lokalmodulet til pc med VGA og PS/2 stik
Transmits HDMI video and audio and USB up to 150 meters over network cable
Transfers HDMI video and audio and USB over local network
USB is for keyboard and mouse only
Set with transmitter and receiver
1920 x 1080 @60Hz
A transmitter to multiple receivers over non-managed switch.
Supports keyboard and mouse ONLY
Supports TCP/IP and local EDID
HDMI 1.3 / HDCP 1.2
Transmitter: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Receiver: 1 x HDMI, 2 x USB-A, 1 x RJ45 Ethernet
built-in auto-adjustment system
Built-in ESD protection system
Power supply: DC 5V/1A (supplied)
Dimensions: 92 x 70 x 25 mm
Transmits DVI video and audio signals up to 120m over a single CAT6 cable
Supports resolutions up to 1920*1080@60Hz
Supports keyboard and mouse signal transmission
A cable can transmit several signals simultaneously
Transmission distance: CAT 6 120m or TCP/IP
LAN diode flash at link
Plug and play support without any settings
Including DC12V/1A power supply
Size: 164 x 85 x 25 mm
Weight: 2 x 220g
Temperature: 0 - +50°C
Transmits HDMI video and audio and USB up to 150 meters over network cable
Transfers HDMI video and audio and USB over local TCP/IP network
USB is for keyboard and mouse only
Set with transmitter and receiver
1920 x 1080 @60Hz
A transmitter to multiple receivers over non-managed switch.
Supports keyboard and mouse ONLY
Supports TCP/IP and local EDID
HDMI 1.3 / HDCP 1.2
Transmitter: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Receiver: 1 x HDMI, 2 x USB-A, 1 x RJ45 Ethernet
built-in auto-adjustment system
Built-in ESD protection system
Power supply: DC 5V/1A (supplied)
Dimensions: 92 x 70 x 25 mm
Top class HDMI KVM Extender via a fiber cable up to 300 meters
Consists of transmitter and receiver.
Transmission via Multi Mode OM 3/4 fiber cable with LC connector
HDMI 2.0 video supports the most popular resolutions up to 4K@60Hz (4:4:4)
HDCP 2.2 and HDCP 1.4 compliance ensures uninterrupted HD and UHD video playback
Unique visual lossless video compression makes true 4K video possible
USB HID supports keyboard, mouse, touch screen and other HID devices
Optical system provides high speed up to 300 meters
EMC isolated is ideal for noise-critical applications
Plug-and-Play, no driver or software required
Supports Windows / Mac / Linux / Chrome OS
Dimensions: 100 x 75 x 28 mm
Weight: 235 g
