2-port RS-422/485 with Surge & Isolation, Universal PCI Card Simple Type: MULTIFUNCTIONAL I/O

Sunix 8139SI

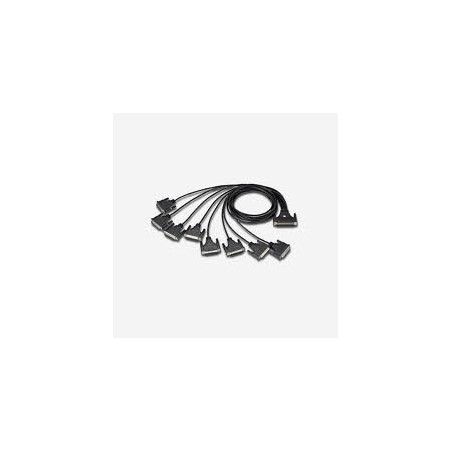

1 meters kabel til SER8PCI-K+ med 8 x DB9

Expands 8 independent RS-232 serial port with communication speeds up to 115.2Kbps.

High reliability SUN1999 16C950 compatible UART controller on-board.

Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.

Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.

On-chip hardware auto flow control to guarantee no data loss.

Built-in ± 2KV ESD protection for all serial signals.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Support Microsoft Windows, Linux, and DOS.

Windows ClientXP / Vista / 7 / 8.x / 10 (X86/X64) / 11Windows Server2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)Windows EmbeddedXP Embedded / POSReady 2009 / POSReady / Embedded System 2009LinuxLinux 2.x / 3.x / 4.x / 5.x / 6.xDOSDOS*UNIXFreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris*IBM OS/2WARP 3/WARP 4

REMAINDER SALE

Serial card JetCard1208L
PCI - Low oh high backplane
8 x RS232
Up to Win 7 (32bit)

8 RS232 serielle porte, 3.3 og 5 V PCI bus

Serielkort universal PCI, høj + lav bagpl. 128 bytes FIFO

Serial card for universal PCI, low backplane Universal PCI 3.3 / 5.0V
1x RS232
UART 16550 (16 Byte FIFO)
Speed 921 kbps
PCI Plug and Play
Drivers for Windows 95 for Win 7 / 2008 R2
Software compatible with DOS, Windows 3.11, OS/2, Linux and various. Unix

2 porte til RS232/422/485, med 2 KV iso., universal PCI
OS SUPPORT:
​64-bit System Intel Itanium
AMD Athlon 64 64-bit CPU System
Microsoft Win 9x/ME/NT, Win 2K/XP/2003, Win CE
Linux 2.0.x / 2.2.x / 2.4.x / 2.6.x
DOS DOS

Serielkort universal PCI, 128 bytes FIFO, optoisoleret

2 x RS232 serial ports with plug & amp; play
1 x TITAN BSP9216B (chipset)
1 x DB25 male connector on the card
1 x DB25 female for two DB9 male adapter cables included
Bus: universal PCI (5V and 3.3V) 32 bit 33MHz
RS232 signal: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Max. bitrate: 921.6kbps
Each port with 16 bit FIFO for transmit & amp; review
IS support: Windows, Linux
0 ° C to 60 ° C

Seriel kort til universal PCI, høj bagplade

2 x RS232 / 422/485 Ports
PCI version 2.1 (32bit) - 3.3 / 5.0V
RS232: TX, RX, CTS, RTS - Optical ISO
RS422: TXD +/-, RXD + / -, RTS, CTS, GND
RS485: Data + / Data, GND
2 x DB9 male
Up to 921.6Kbps
Built-in Termination: 120 Ohm
DOS, Windows 98, NT , 2000, XP, Win7, Win8, 2003, Linux
