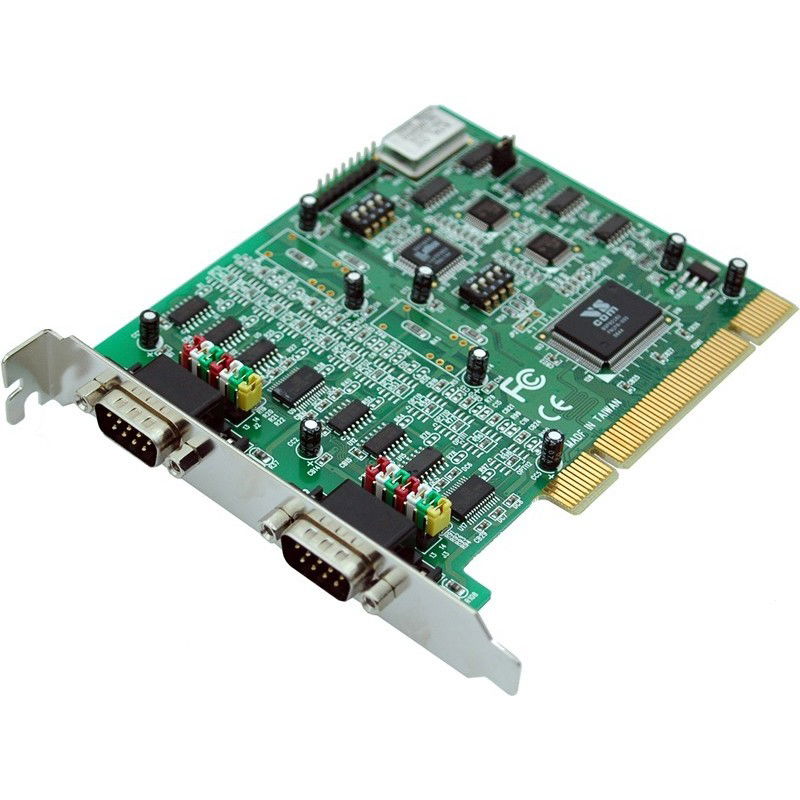

2 x RS232, RS422 or RS485 serial ports for PCI, 2 x DB9 male OS support: DOS, Windows 98, NT , 2000, XP, Win7, Win8, 2003, Linux

2 x RS232 / 422/485 Ports
PCI version 2.1 (32bit) - 3.3 / 5.0V
RS232: TX, RX, CTS, RTS - Optical ISO
RS422: TXD +/-, RXD + / -, RTS, CTS, GND
RS485: Data + / Data, GND
2 x DB9 male
Up to 921.6Kbps
Built-in Termination: 120 Ohm
DOS, Windows 98, NT , 2000, XP, Win7, Win8, 2003, Linux

RS485-2+PCI-UNI
444.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

2 porte til RS232, 422 eller RS485. Hver seriel port kan kontrollere op til 32 enheder i et multidrop netværk. Op til 4 kort kan monteres i samme system (giver 8 eller 16 porte).

Baudrate
Maks. 921,6 Kbit/s
Drivere
DOS, Windows 98, NT, 2000, XP, Win7, Win8, 2003 og Linux
Duplex
Point-to-point fuld duplex eller multidrop halv duplex
FIFO
16 bytes
I/O
Plug and Play
PCI
3,3 og 5 V
Porte
2 x RS232/422/485
Profil
Kan kun leveres med høj profil
Signaler
RS-422: TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND(4-tråds) RS-485: Data+/-, GND (2-tråds)
Stik
2 x DB9 han
Terminering
Ingen terminering nødvendig; Termineringsmodstande (120 Ω) er indbygget
UART
16C550
