Serial

Bluetooth from PC to the adapter provides RS232 port
External antenna.
Bluetooth 2.0.
With 2 pcs. as back-to-back link
provides connection between 2 COM ports
Wireless transfer of data between serial ports
Up to 100 meters
Antenna connector is RSMA female
Setup via AT commands
Must be powered from 5 - 40VDC via screw terminal
USB mini cable to A male - for power from 5VDC
2 x screw terminal for any external power supply
Is not battery-powered
Use Putty for testing/setup
Help with setup can be purchased additionally

Radio link for serial transfer on the 2.4GHz band
one for a (P2P) or one for more (P2M)
Range Up to 700 meters with whip-antenna
Range Improves panel antenna < Br> Serial port: RS232 or RS485
supply and COM port is with shed terminals
antenna: R/SMA female
Simple Setup with Turn and Dip Switche
2.4GHz, 16 channels
Supply 10 to 30 VDC

RS232 Rxtends up to 250 meters over RJ45 cable
Baud rate: 110 ~ 921,600, 8-bit
Use STP (shielded) patch cable - straight through
The network cable must not be connected to the patch panel
1 x 5VDC/1A - the power supply supplies both devices (PoC)
Important: If the distance is long, 2 power supplies are recommended
Important: If the network cable is of poor quality, use 2 power supplies

DB9 male connector
1200 to 230400 baud
Supply 5 to 24 volts via USB or screw terminals
Detachable WiFi antenna
USB Adapter cable included

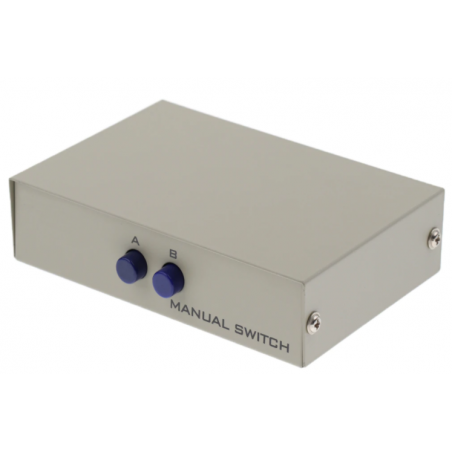

2 ports Mechanical COM port switch, DB9 female / male
1 x DB9 female - I / O
2 x DB9 male - A and B
signal direction (I / O to A or B or A or B to I / O)
All 9 connections Switches
Good quality, but recommended for test use only
120 x 90 x 30mm

Extend the distance between PC and RS232 Equipment
Straight through network cable
RS232 serial port boost up to 1.2 km
Baud rate range: 300 - 200kbps
Supply voltage: DC9-24V (not included )
Optical isolation
isolation voltage: 2500Vrms pulse or 500 V = continuous
Dimensions: 100 mm x 50 mm x 20 mm
Weight: 350 g

4 x COM port switch with DB25 female
1 x common DB25 female
For serial port or parallel port
Works both ways
Mechanical switch for test use only
All conductors in the plug are switched

Wireless RS232 link between two RS232 ports.
Only available as a set (2 pcs.).
BT Ver 2.0 + EDR Class1
Up to 100meters with accompanying antennas by line-of-sight
Up to 1km with greater external antennas (optional)
automatic connection establishment at power on
with frequency hopping to avoid interference
Baud rate: 1200 - 115.200kbps, 8 data bits, the O / E / No, 1/2 stop bits
Setup baud rate, etc. with Hyper Terminal or the like.
RTS / CTS on / off - DTR / DSR / DCD loop-back
Supports multi-connection: 1 master 4 slaves
Supply voltage: 5 - 12VDC / 80mA

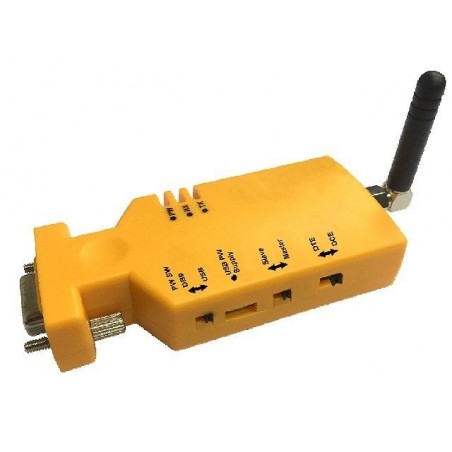

UHF 433 MHz RS-232 adapter

RS-232 konfigureres via COM port

1 to 1 tilslutning

1 to N broadcast

Op til 200 meter

Supports Baud Rate conversion
Supports Modbus RTU/ASCII protocol
Supports two masters sharing one slave port
Raw data mode for most query-response protocols
Built-in web server for easy configuration (HTTP)
Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
Allows automatic RS-485 direction control
Tiny form-factor and low power consumption
Read-cache ensures faster response

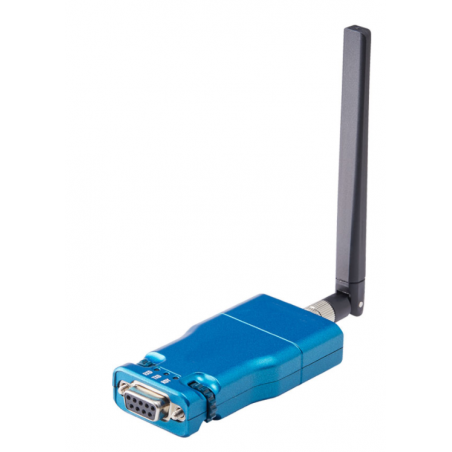

Wireless Com Port - Can Peer-to-Peer connection
IEEE 802.11 a/b/g/n
2.4 GHz, 5 GHz Dual Band
1 Port RS232 or RS422 or 2-wire RS485
Max.Baud Rate: 921.6 Kbps
Operating temperature: -40 - +85°C
with COM Port Re-Director, TestView
± 15KV IEC ESD protection
Supply voltage: 5 - 12VDC / 2W
infrastructure, Soft AP, Roaming
sWifi config Mobile App for Android

Transparent Wireless RS232 or RS485 link with 2 pcs.
Programmable with DIP- and Rotary switches
433 MHz Radio Frequency
16 RF Channels
0dBi Omni antenna
Baud Rates from 1200 to 115200 bps
Includes a PA switch that can be used to enhance the RF power
Wireless line of sight (LOS) transmission range of up to 500 meters at an RF Baud Rate of 9600 bps
RS232 (RX/TX/GND) and RS485 (2-wire) interfaces
N81, E81, O81
DIN-Rail
Temperatures, -25 - +75°C
TX power: 10dBm to 19dBm
Supply: 10 - 30VDC / 1Watt
Dim: 107 x 83 x 33 mm

Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-ST is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate

Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-SR is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate
