PoE extender with 1 x PoE in and 2 x PoE out

PoE extender to 100 meters.

Powered from the PoE source.

Power consumption: 2W

PoE to next extender

Up to 500 meters

100/1000Mbits

IEEE802.3af/at/bt

Temperature: -20 to +60°C

Dimensions: 133 x 73 x 41 mm

Break 100 meter border with VDSL over RG59 Coax cable
1 x RJ45 10/100 / 1000Mbit
Up to 300mbit / s - duplex (automatic speed optimization)
Unroubing Data connection
Temperature: 0-50 ° C
5VDC 2A Power supply included
75Ω cable must be used
Use 2 pcs. Eth-VDSL-RG + G to a connection

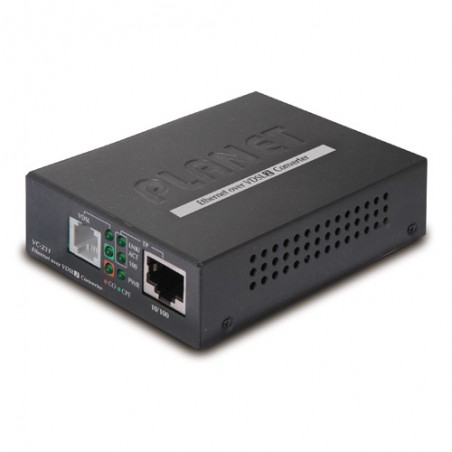

Use VDSL connection over 2-wire cable, where Wifi is an unstable connection
Provides a network connection without affecting data
Up to 1.4 km Ethernet bridge over e.g. 2-wire laid down telephone cable
Speed depends on cable and length - up to 90Mbps
Automatically adjusts speed to highest speed
Can also communicate with ETH-VDSL2+4+ (with 4 port switch)
1 x LAN 10/100 BASE-T RJ45 auto-MDI/MDI-X port
1 x RJ11 female (pin 3 and 4)
Supply: 5VDC, 2A power supply included
DIP switch: VDSL connection, one must be set to CPE and the other to CO.
Prepared for DIN mounting, wall mounting. Your bracket is purchased separately
SOLD SINGLELY! Order 2 pieces for a set.

1000 meter - network extender over coax cable.
Poe transferred in cable
1 x 10 / 100mbit base-TX RJ45
Auto-Negotiation / Auto-MDI / MDI-X
Poe Standard: IEEE 802.3AT / BY
PoE Output: 48-56VDC Max. 25 Watt
PoE Mode: End-Span, RJ45 Pin 1/2 (+), 3/6 (-)
1 x BNC Hun - RG59 Coax
Max. Distance: 200m w / Poe +, 1000m w / Poe, 1600m without Poe
Power supplied from 48-56VDC min. 2amp

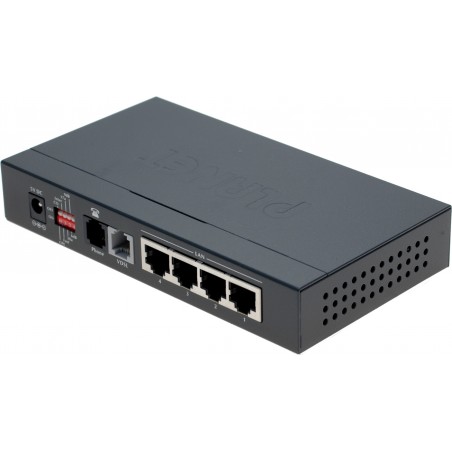

Use VDSL connection over 2-wire cable, where Wifi is an unstable connection

Up to 1.4 km over e.g. old telephone cable with 2 VDSL modules

Use 2 pcs. ETH-VDSL2+4+ or ETH-VDSL2+A and ETH-VDSL2+4+

Ethernet over 2-wire connection with VDSL

Ideal solution when the network distance is over the 100 meter limit

Ideal solution when a Wifi link is an unstable connection

Provides a transparent data connection

Supply: 5VDC, 2A power supply included

DIP switch: VDSL connection, one must be set to CPE and the other to CO.

Prepared for DIN mounting, wall mounting. DIN brackets are available separately.

SOLD INDIVIDUALLY! Order 2 pieces for a set.

Dimensions: 155 x 86 x 26 mm

REMAINING STOCK

Ethernet over telephone cable 1 x twisted pair cable

VDSL module with 8 port switch and SFP slot

Up to 100Mbps at 300 meters

Up to 1km - automatic speed adjustment

Break the 100 meter limit with a VDSL connection

Transparent data connection

8 port VDSL2 switch with 2 shared RJ45/SFP ports

Purchase ETH-VDSL2ROUTER to create a link

10/100 / 1000Mbit PoE Network Extender
Extend the network cable with PoE over the magic 100 meters
4 pieces. Extenders provide a maximum distance of 500 meters
Extenders are powered from PoE and pass PoE on to the next Extender
Dimensions: 94 x 70 x 26 mm

PoE In: Max 30.8 Watts

PoE Out: Max 26 Watts
Weight: 189g

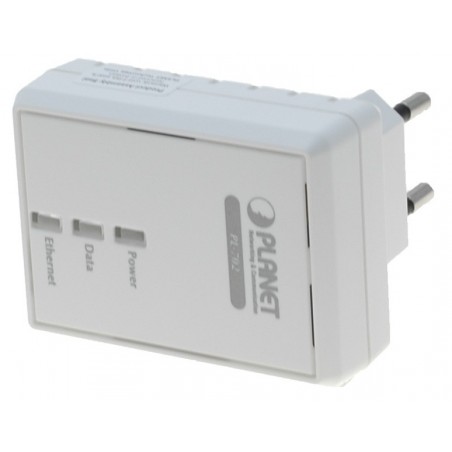

Ethernet through the same phase of electric cables - sold as a set (2 pcs.)

Not suitable for industrial use.

Rest storage

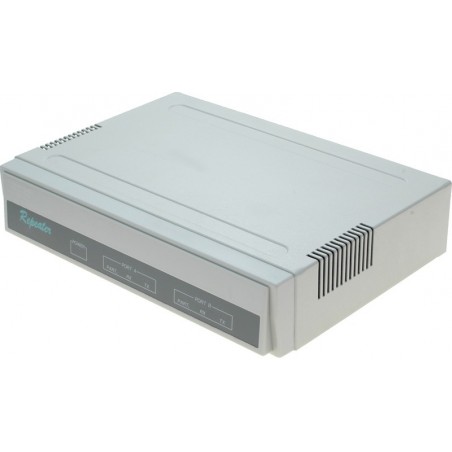

2 Ports Repeater to 10 Base2 and 10 Base5 Network
BNC / Aui Ethernet
can convert between Aui and BNC networks.
