Ethernet over 2-wire connection. VDSL. With 8 port switch. Up to 1km. 2 x SFP. For ETH-VDSL2ROUTER

REMAINING STOCK


Ethernet over telephone cable 1 x twisted pair cable

VDSL module with 8 port switch and SFP slot

Up to 100Mbps at 300 meters

Up to 1km - automatic speed adjustment

Break the 100 meter limit with a VDSL connection

Transparent data connection

8 port VDSL2 switch with 2 shared RJ45/SFP ports

Purchase ETH-VDSL2ROUTER to create a link

ETH-VDSL2-8
5,900.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

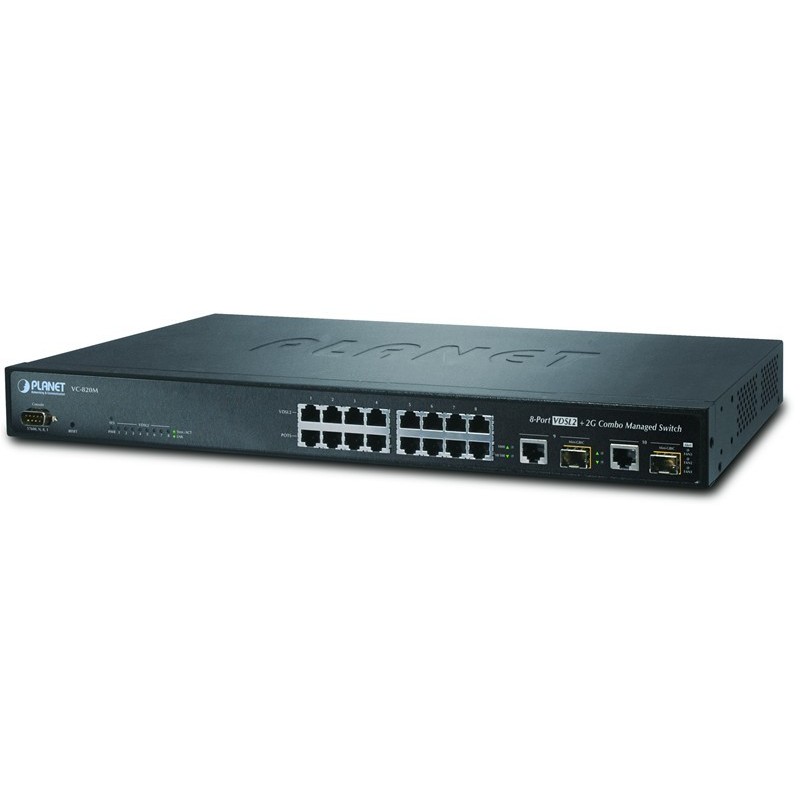

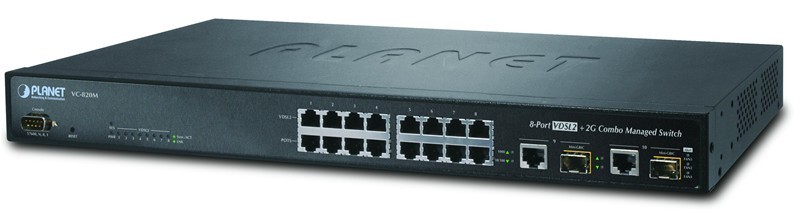

Managed VDSL2 switch with 8 x VDSL and 2 x gigabit Ethernet.

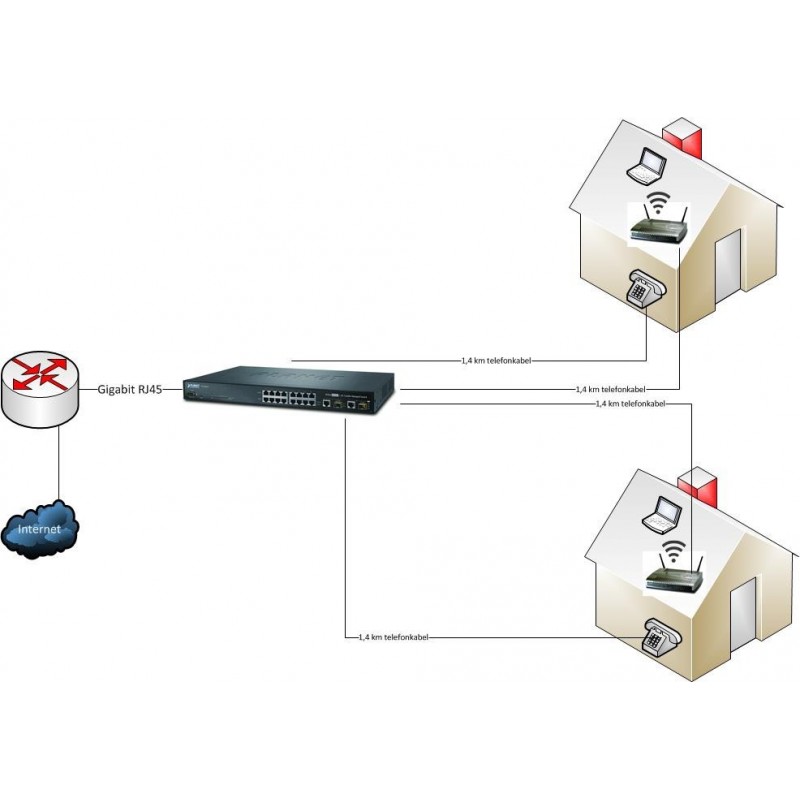

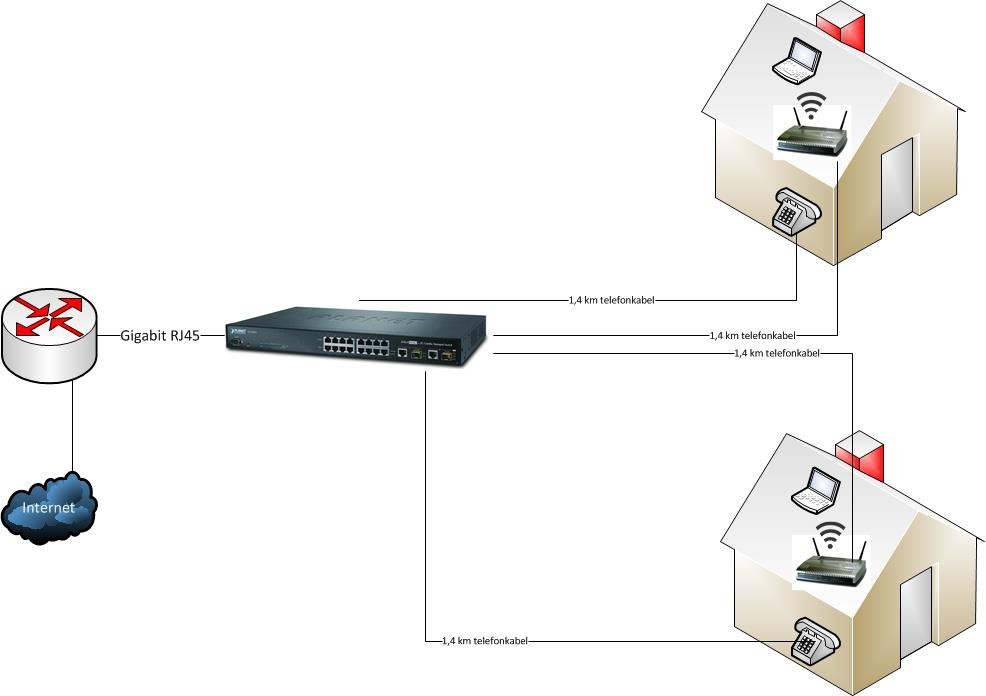

Ethernet via RJ45 or SFP. Break the 100 meter limit by reusing existing twisted pair telephone wires, for example between two buildings separated by a road, or between the barn and the residence for example video surveillance.

ETH-VDSL2-8 supports 2 profiles - 17a and 30a. 17a is the most ideal for long cable lengths, 600 meters and above, where 30a is better for cable runs under 600 meters. With ETH-VDSL2-8, 8 devices can be connected via VDSL2 and connected to the main network via fiber or UTP/STP. The connected devices can optionally use ETH-VDSL2ROUTER for connection via VDSL2.

Speed v/ cable length:

profile 17a:

300 m -> 99/70 Mbit/s 400 m -> 99/60 Mbit/s 600 m -> 90/45 Mbit/s 800 m -> 50/28 Mbit/s 1000 m -> 40/12 Mbit/s 1200 m -> 20/7 Mbit/s 1400 m -> 20/4 Mbit/s

profile 30a:

300 m -> 100/100 Mbit/s 400 m -> 90/90 Mbit/s 600 m -> 69/55 Mbit/s 800 m -> 48/9 Mbit/s

Driftstemperatur
0 – 50 °C ved en luftfugtighed på 10 – 90 % (ikke-kondenserende)
LED
Lysdioder angiver VDSL link, Ethernet link, blæseralarmer og strøm
Opsætning
Via webserver, SNMP, telnet eller RS232
Porte
2 x 10/100/1000 Mbit RJ45 porte delt med 2 x SFP porte. 8 x RJ11 VDSL port og 8 x RJ11 analog telefonporte
Strømforsyning
Indbygget strømforsyning
Understøtter
Understøtter port- og tagbaseret VLAN, trunk og Link Aggregation
