VDSL - 2-wire or Coax

Up to 800 meters - Network extender over RJ45 UTP/STP patch cable

PoE is transmitted in cable from PSE to PD

PoE in to RX, PoE out from RX

1 x 10/100Mbit BASE-TX RJ45 with PoE

Data speed: up to 100Mbit auto-optimization

Auto-optimization / auto-MDI/MDI-X

PoE Standard: IEEE 802.3at/af

PoE Output: 48-56VDC from 15.6 to 67 Watts

1 x RJ45 for VDSL + PoE

PoE in (RX) pin 1/2/4/5(+), 3/6/7/8(-)

PoE out (TX) pin:1,2,4,5(+), 3/6/7/8(-)

Distance: 100m w/PoE+, 500m w/PoE, 1000m without PoE

Purchase power supply from 48-56VDC min. 2Amp

Dimensions: 104 x 70 x 30 mm

REMAINING STOCK

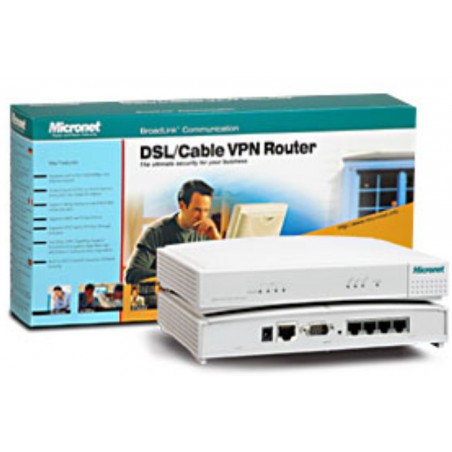

DSL/Cable VPN Router

IEEE 802.3,IEEE802.3u

4 x 10/100M Ethernet RJ-45 ports

1 x 10/100M WAN RJ-45 port

1 x RS-232 dial up backup port

DDNS, UPnP

Up to 32 IPSec VPN tunnels

Supply: 12V DC, 1.2A

Network Extender of RJ45 UTP patch cable
PoE transmitted in the cable from the PSE to the PD
1 x 10 / 100Mbit BASE-TX RJ45
Data rate: 94 - 30Mbps auto-optimization
Auto -negotiation / auto-MDI / MDI-X
PoE Standard: IEEE 802.3at / PoE of
Output: 48-56VDC max. 38 Watt
1 x RJ45 to VDSL + PoE
PoE pin: Pin 1/3/5/7 (+ ) 2/4/6/8 (-)
Distance: 100m m / PoE +, 500m w / PoE, without PoE 1000m
Powered by the 48-56VDC min. 2Amp

Transparent Ethernet connection up to 1200 meters
Medium range from 11 - 80 Mbps up to 1200 meters
Long range from 14 - 89 Mbps up to 700 meters
Range depends on cable quality etc.
Note: 2 pcs. to make a connection.
1 x RJ45 for LAN
1 x RJ45 for Link (RJ11 can also fit in the female connector
DIP switch to select Master or Slave mode
Dimensions: 97 x 70 x 26 mm
Cabinet: Metal
Weight: 189g
Supply voltage: 5VDC/2A
Temperature: 0 - +50°C

Ethernet med PoE over RG59 Coax-kabel - VDSL princip.
Forlæng PoE-forbindelsen op til 500 m via Coax kabel
Egnet til IP kamera m/Poe over eksisterende Coax-kabler.

Break the 100 meter limit with VDSL over RG59 coax cable
1 x RJ45 10/100 Mbit
Up to 94 Mbit/s - duplex (automatic speed optimization)
Transparent (untouched) data connection
128-bit AES encryption
Frequencies: 2 - 28MHz
Same device can be Master or Slave (DIP)
Establishes even the best connection
Dimensions: 97 x 70 x 26 mm
Temperature: 0-50°C
5VDC 2A power supply included
75Ω cable must be used
Use 2 pcs. ETH-VDSL-RG for a point to point connection
Use 1 pc. Master for 4 pcs. Slaves - 1:4

4 ch Network extender over 2-wire, RJ45 or Coax cable
Provides transparent Ethernet connection up to 2000 meters
Range with up to 46Mbps: max. 1200 meters COAX
Range with up to 28Mbps: max. 1000 meters RJ11
Range with up to 73Mbps: max. 699 meters RJ45 UTP
Range depends on cable quality etc.
4 x RJ45 for LAN
1 x RJ45 for Link (RJ11 can also fit in the female connector
1 x BNC Coax 75ohm
DIP switch to select Master or Slave mode
Dimensions: 155 x 86 x 26 mm
Cabinet: Metal
Weight: 347g
Supply voltage: 12VDC/1A
Temperature: 0 - +50°C

Use 2 pcs. Eth-VDSL2 + for an Ethernet connection (Bridge)

up to 1.4 km Ethernet connection with 2 pcs. VDSL devices
Poe over 2-wire connection
1 x LAN 10/100 / 1000Base-T RJ45 Auto-MDI / MDI-X Port
1 x VDSL2 RJ11 She
Splitter for analogously Telephone connection included
Power supply: 54V / 0.74A included
POE + (30W) for eg. Access Point, IP camera.
Prepared for your mounting, wall mounting
Your fittings are purchased

Use VDSL connection over 2-thread cable where WiFi is an unstable connection

up to 1.4 km above eg. Conducted phone cable with 2 pcs. VDSL modules
Use 2 pcs. ETH-VDSL2+4+ or ETH-VDSL2+A and ETH-VDSL2+4+
Ethernet over 2-wire connection with VDSL
Ideal solution When the network distance is over 100 meters of border
ideal solution when a WiFi Link is an unstable connection
providing a transparent data connection
supply: 5VDC, 2A power supply included
DIP switch: VDSL connection must be set to CPE and the other for CO.
Prepared for your Montage, wall assembly. Your fittings are purchased
Order 2 pcs for a set.

Use VDSL connection over 2-wire cable, where Wifi is an unstable connection
Provides a network connection without affecting data
Up to 1.4 km Ethernet bridge over e.g. 2-wire laid down telephone cable
Speed depends on cable and length - up to 90Mbps
Automatically adjusts speed to highest speed
Can also communicate with ETH-VDSL2+4+ (with 4 port switch)
1 x LAN 10/100 BASE-T RJ45 auto-MDI/MDI-X port
1 x RJ11 female (pin 3 and 4)
Supply: 5VDC, 2A power supply included
DIP switch: VDSL connection, one must be set to CPE and the other to CO.
Prepared for DIN mounting, wall mounting. Your bracket is purchased separately
SOLD SINGLELY! Order 2 pieces for a set.

1000 meter - network extender over coax cable.
Poe transferred in cable
1 x 10 / 100mbit base-TX RJ45
Auto-Negotiation / Auto-MDI / MDI-X
Poe Standard: IEEE 802.3AT / BY
PoE Output: 48-56VDC Max. 25 Watt
PoE Mode: End-Span, RJ45 Pin 1/2 (+), 3/6 (-)
1 x BNC Hun - RG59 Coax
Max. Distance: 200m w / Poe +, 1000m w / Poe, 1600m without Poe
Power supplied from 48-56VDC min. 2amp

2x SFP module for VDSL2Sold as a pair of 2 SFP modules, 1x receiver & 1x transmitter
Mounted in contacts with SFP slot
RJ45 connector (for 2 wires)
Up to 2 km, depending on the cable quality
Temperature: -20°C to 75°C
Power consumption of 3W from SFP port

Break 100 meter border with VDSL over RG59 Coax cable
1 x RJ45 10/100 / 1000Mbit
Up to 300mbit / s - duplex (automatic speed optimization)
Unroubing Data connection
Temperature: 0-50 ° C
5VDC 2A Power supply included
75Ω cable must be used
Use 2 pcs. Eth-VDSL-RG + G to a connection

REMAINING STOCK

Ethernet over telephone cable 1 x twisted pair cable

VDSL module with 8 port switch and SFP slot

Up to 100Mbps at 300 meters

Up to 1km - automatic speed adjustment

Break the 100 meter limit with a VDSL connection

Transparent data connection

8 port VDSL2 switch with 2 shared RJ45/SFP ports

Purchase ETH-VDSL2ROUTER to create a link

Ethernet over Coax or UTP cable
can be powered with PoE from PoE Switch
can be powered with Poe from injector
4 x 10 / 100Mbit with PoE (Power Budget is 20W)
1 x RJ45 Poe Long Reach
1 x BNC Port to Long Reach Coax
PoE and Ethernet Data Via Coax Up to 1km
PoE and Ethernet Data Via Networking Up to 500m
Supply 44-56V DC or PoE from Switch / injector
for wall mounting or DIN rail
Dim: 135 x 87.8 x 56 mm
Operating temperature -20 to + 70 °

REMAINING STOCK

VDSL2 router with 4 x RJ45 and Wifi

Network connection up to 1.4 km over 2-wire telephone cables

Point to point connection

2 pcs. ETH-VDSL2ROUTER for one connection
