Ethernet over 2-wire connection with VDSL router with WiFi - Break the 100 meter limit. Up to 100Mbit

REMAINING STOCK

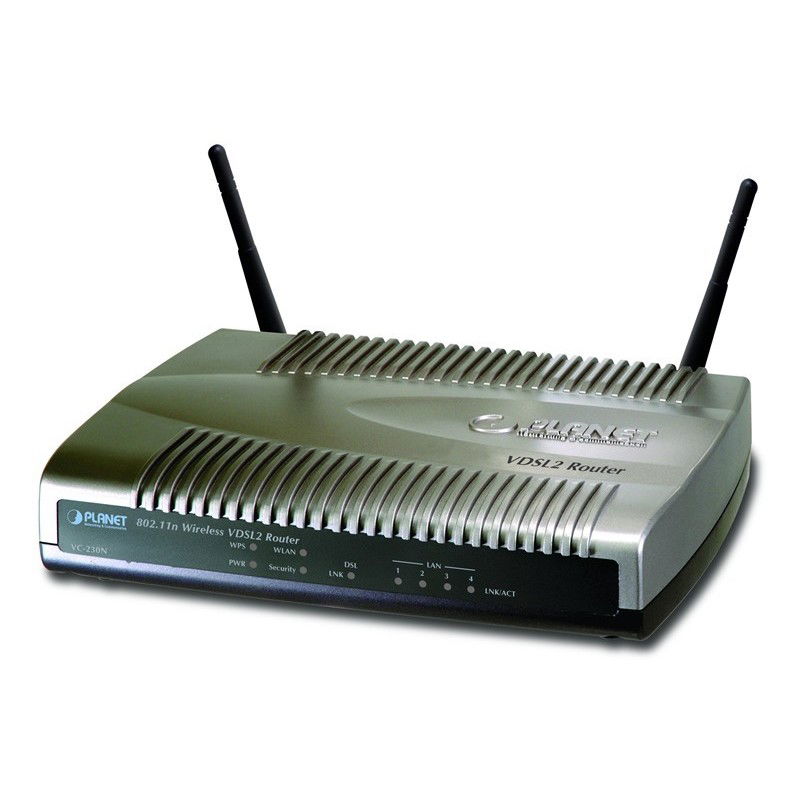

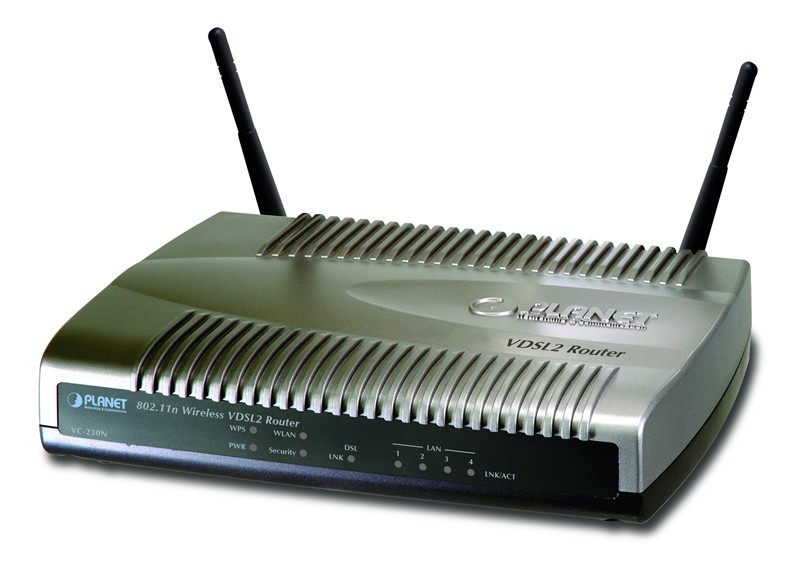

VDSL2 router with 4 x RJ45 and Wifi

Network connection up to 1.4 km over 2-wire telephone cables

Point to point connection

2 pcs. ETH-VDSL2ROUTER for one connection

ETH-VDSL2ROUTER
1,399.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

VDSL2 router with WiFi and 4 x Ethernet.

Internet access up to 1.4 km away via telephone cables.

Break the 100 meter limit by reusing existing twisted pair telephone wires, for example between two buildings separated by a road, or between the barn and the residence for example video surveillance.

The ETH-VDSL2ROUTER supports 2 profiles - 17a and 30a. 17a is the most ideal for long cable runs, 600 meters and above, while 30a is better for cable runs under 600 meters. The ETH-VDSL2ROUTER uses the VDSL port as the WAN port and the 4 RJ45 ports as a switch.

Speed w/cable length:

profile 17a:

300 m -> 99/70 Mbit/s 400 m -> 99/60 Mbit/s 600 m -> 90/45 Mbit/s 800 m -> 50/28 Mbit/s 1000 m -> 40/12 Mbit/s 1200 m -> 20/7 Mbit/s 1400 m -> 20/4 Mbit/s

profile 30a:

300 m -> 100/100 Mbit/s 400 m -> 90/90 Mbit/s 600 m -> 69/55 Mbit/s 800 m -> 48/9 Mbit/s

Dimensioner
44 mm (H) (1U)
Driftstemperatur
0 – 50 °C ved en luftfugtighed på 5 – 90 % (ikke-kondenserende)
LED
Lysdioder angiver VDSL link, Ethernet link, blæseralarmer og strøm
Porte
4 x 10/100 RJ45 porte
Strømforsyning
12 VDC 1 A strømforsyning medfølger

4 other products in the same category:

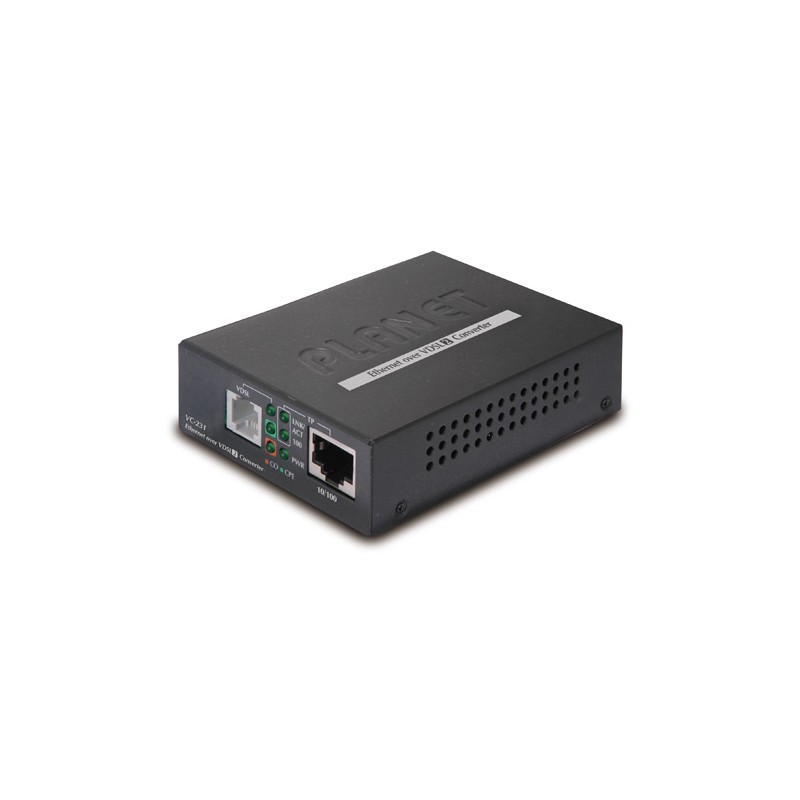

Ethernet over 2-wire...

Ethernet over 2-wire connection with VDSL. 10/100Mbit. 4 Ports Switch. Up to 1.4 km between 2 VDSL modules

Use VDSL connection over 2-thread cable where WiFi is an unstable connection

up to 1.4 km above eg. Conducted phone cable with 2 pcs. VDSL modules
Use 2 pcs. ETH-VDSL2+4+ or ETH-VDSL2+A and ETH-VDSL2+4+
Ethernet over 2-wire connection with VDSL
Ideal solution When the network distance is over 100 meters of border
ideal solution when a WiFi Link is an unstable connection
providing a transparent data connection
supply: 5VDC, 2A power supply included
DIP switch: VDSL connection must be set to CPE and the other for CO.
Prepared for your Montage, wall assembly. Your fittings are purchased
Order 2 pcs for a set.

Price 1,079.00 DKK
Product code: ETH-VDSL2+4+
On the way in
Quick view
Long Reach Ethernet...

Long Reach Ethernet Extender, VDSL over a point to point RJ45 UTP cable. Up to 80 Mbps at 200 meters, 30 Mbps at 600 meters.

Transparent Ethernet connection up to 1200 meters
Medium range from 11 - 80 Mbps up to 1200 meters
Long range from 14 - 89 Mbps up to 700 meters
Range depends on cable quality etc.
Note: 2 pcs. to make a connection.
1 x RJ45 for LAN
1 x RJ45 for Link (RJ11 can also fit in the female connector
DIP switch to select Master or Slave mode
Dimensions: 97 x 70 x 26 mm
Cabinet: Metal
Weight: 189g
Supply voltage: 5VDC/2A
Temperature: 0 - +50°C

Price 1,120.00 DKK
Product code: ETH-VDSL2+AL
Physically in stock
Quick view
Ethernet over STP/UTP RJ45...

Ethernet over STP/UTP RJ45 cable, max. 800m with PoE pass-through. Set with TX and RX. Transparent Data

Up to 800 meters - Network extender over RJ45 UTP/STP patch cable

PoE is transmitted in cable from PSE to PD

PoE in to RX, PoE out from RX

1 x 10/100Mbit BASE-TX RJ45 with PoE

Data speed: up to 100Mbit auto-optimization

Auto-optimization / auto-MDI/MDI-X

PoE Standard: IEEE 802.3at/af

PoE Output: 48-56VDC from 15.6 to 67 Watts

1 x RJ45 for VDSL + PoE

PoE in (RX) pin 1/2/4/5(+), 3/6/7/8(-)

PoE out (TX) pin:1,2,4,5(+), 3/6/7/8(-)

Distance: 100m w/PoE+, 500m w/PoE, 1000m without PoE

Purchase power supply from 48-56VDC min. 2Amp

Dimensions: 104 x 70 x 30 mm

Price 3,327.00 DKK
Product code: ETH-VDSL-KIT+P
  • New
Physically in stock
Quick view
