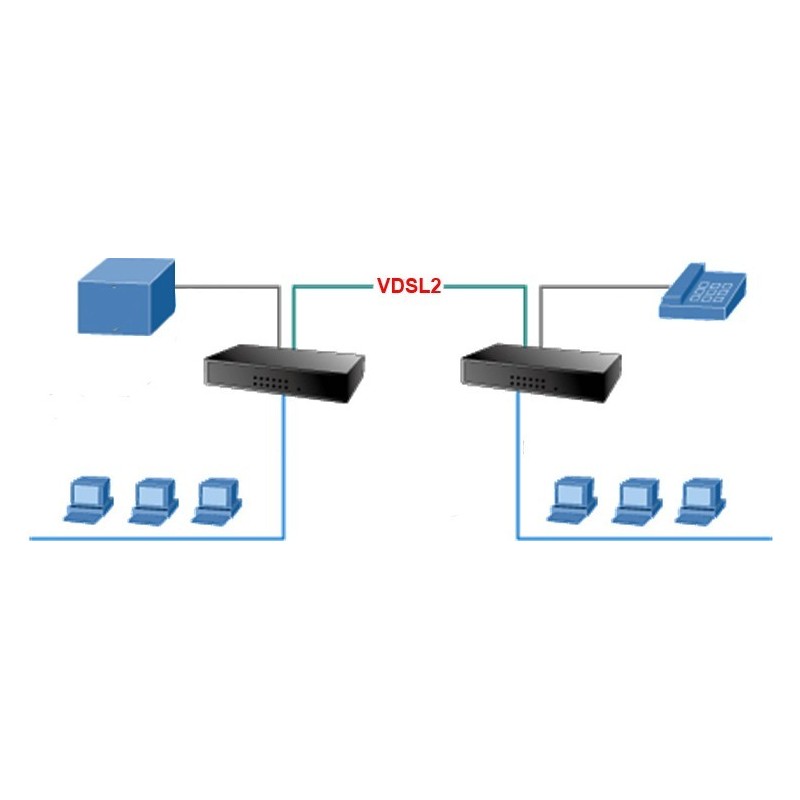

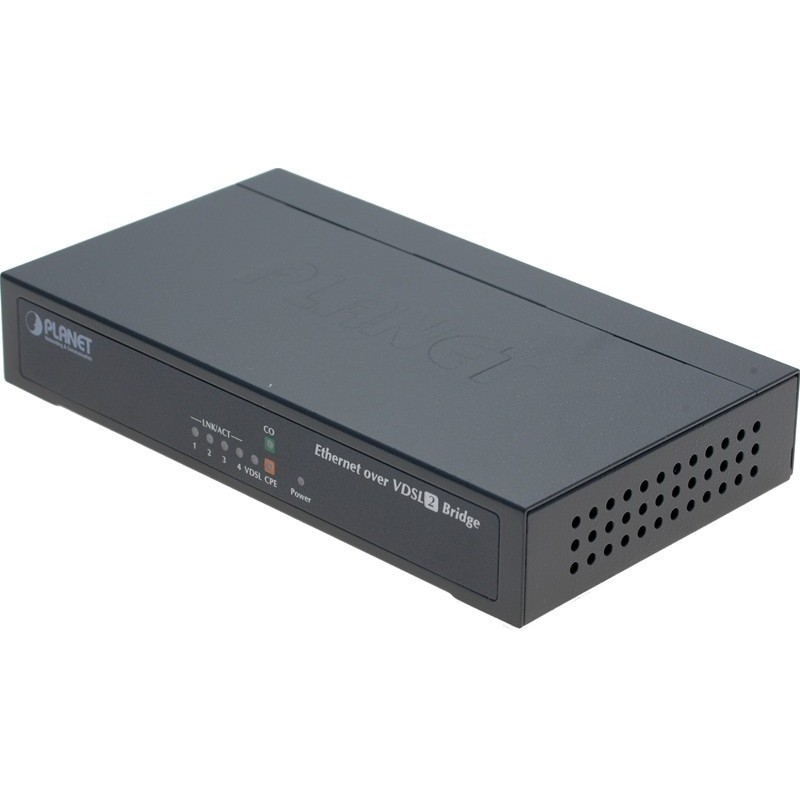

Ethernet over 2-wire connection with VDSL. 10/100Mbit. 4 Ports Switch. Up to 1.4 km between 2 VDSL modules

Use VDSL connection over 2-wire cable, where Wifi is an unstable connection
Provides a network connection without affecting data
Up to 1.4 km Ethernet bridge over e.g. 2-wire laid down telephone cable
Speed depends on cable and length - up to 90Mbps
Automatically adjusts speed to highest speed
Can also communicate with ETH-VDSL2+4+ (with 4 port switch)
1 x LAN 10/100 BASE-T RJ45 auto-MDI/MDI-X port
1 x RJ11 female (pin 3 and 4)
Supply: 5VDC, 2A power supply included
DIP switch: VDSL connection, one must be set to CPE and the other to CO.
Prepared for DIN mounting, wall mounting. Your bracket is purchased separately
SOLD SINGLELY! Order 2 pieces for a set.

Use 2 pcs. Eth-VDSL2 + for an Ethernet connection (Bridge)

up to 1.4 km Ethernet connection with 2 pcs. VDSL devices
Poe over 2-wire connection
1 x LAN 10/100 / 1000Base-T RJ45 Auto-MDI / MDI-X Port
1 x VDSL2 RJ11 She
Splitter for analogously Telephone connection included
Power supply: 54V / 0.74A included
POE + (30W) for eg. Access Point, IP camera.
Prepared for your mounting, wall mounting
Your fittings are purchased

REMAINING STOCK

Ethernet over telephone cable 1 x twisted pair cable

VDSL module with 8 port switch and SFP slot

Up to 100Mbps at 300 meters

Up to 1km - automatic speed adjustment

Break the 100 meter limit with a VDSL connection

Transparent data connection

8 port VDSL2 switch with 2 shared RJ45/SFP ports

Purchase ETH-VDSL2ROUTER to create a link

1000 meter - network extender over coax cable.
Poe transferred in cable
1 x 10 / 100mbit base-TX RJ45
Auto-Negotiation / Auto-MDI / MDI-X
Poe Standard: IEEE 802.3AT / BY
PoE Output: 48-56VDC Max. 25 Watt
PoE Mode: End-Span, RJ45 Pin 1/2 (+), 3/6 (-)
1 x BNC Hun - RG59 Coax
Max. Distance: 200m w / Poe +, 1000m w / Poe, 1600m without Poe
Power supplied from 48-56VDC min. 2amp

2x SFP module for VDSL2Sold as a pair of 2 SFP modules, 1x receiver & 1x transmitter
Mounted in contacts with SFP slot
RJ45 connector (for 2 wires)
Up to 2 km, depending on the cable quality
Temperature: -20°C to 75°C
Power consumption of 3W from SFP port

Break 100 meter border with VDSL over RG59 Coax cable
1 x RJ45 10/100 / 1000Mbit
Up to 300mbit / s - duplex (automatic speed optimization)
Unroubing Data connection
Temperature: 0-50 ° C
5VDC 2A Power supply included
75Ω cable must be used
Use 2 pcs. Eth-VDSL-RG + G to a connection

REMAINING STOCK

VDSL2 router with 4 x RJ45 and Wifi

Network connection up to 1.4 km over 2-wire telephone cables

Point to point connection

2 pcs. ETH-VDSL2ROUTER for one connection

Network Extender of RJ45 UTP patch cable
PoE transmitted in the cable from the PSE to the PD
1 x 10 / 100Mbit BASE-TX RJ45
Data rate: 94 - 30Mbps auto-optimization
Auto -negotiation / auto-MDI / MDI-X
PoE Standard: IEEE 802.3at / PoE of
Output: 48-56VDC max. 38 Watt
1 x RJ45 to VDSL + PoE
PoE pin: Pin 1/3/5/7 (+ ) 2/4/6/8 (-)
Distance: 100m m / PoE +, 500m w / PoE, without PoE 1000m
Powered by the 48-56VDC min. 2Amp
