AVE-304TR & nbsp;
4 Port VGA Over CatX Transceiver
4 Port AV Receiver
AV Input: RJ45 x 1
AV Output: RJ45 x 4, VGA x 1, 3.5mm jack x 1
LED: 2 Colored LED
Video Quality: Maximum VGA Resolution & distance: 2048 x 1536 at 300m

Display of 4 screens assembled on one screen
More image combinations
Remote control
4 x HDMI inputs
1 x HDMI output 1080p
PIP and POP functions
hot-Preset keys, IR remote
Can be controlled from the RS232, Telnet and push buttons on the front

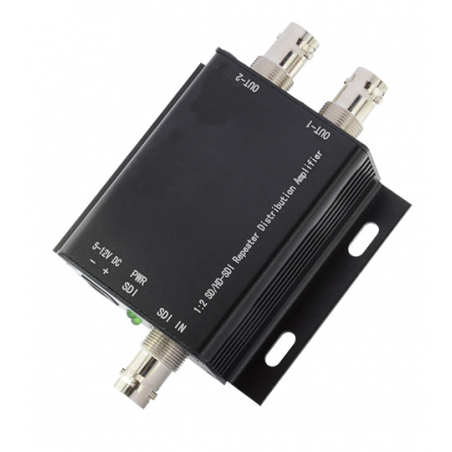

SDI in to 2 x SDI out
Repeater (booster) up to 400 meters
3G-SDI, HD-SDI and SD-SDI
2 x amplifier outputs
3 x BNC male
Impedance: 75 ohms
Signal output: 0.8Vp-p
Video: 480i, 567i, 720p, 1080i, 1080p
Temperature: 0 - +40°C
Supply voltage: 5 - 12VDC (PSU included)
Flange mounted
Can daisy-chain with multiple devices

Sends audio/video wirelessly to the recipients
Use: Computer, screen, DVD player, television, TV box, camera
Function 1: Wireless transmitter and receiver
Function 2: Wireless extender
Feature 3: Video Converter
Feature 4: Screen Share mirroring
Transmitter HDMI ports: 1x local output (female), 1x input (female)
Receiver HDMI ports: 1x output (female)
Infrared remote control
Contains a transmitter and a receiver
Supports up to 4 receivers (reduces the range per increased number of receivers)

For additional receivers, see product number: "HDMI-WIFI-MULTI+R"

Perfect table box to the meeting room for viewing on a large screen
can be mounted under the table
6 x video inputs selected for 1 x output
4 x HDMI input
1 x DisplayPort
1 x VGA + audio
1 x HDMI output for local monitor
1 x RJ45 for remote receiver with HDMI out (extras)
Sending of CAT6a cable up to 100m in HD 1080p
4K UHD (3840 x 2160) up to 70m
Front panel push button and IR remote control or serial or GUI control
EDID and HDCP function
USB 2.0 port for Pass Through
Size: 135 x 100 x 40 mm

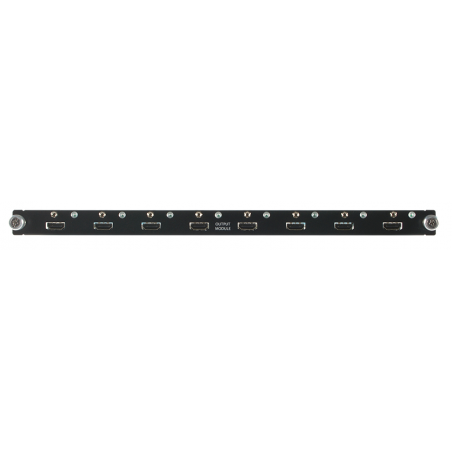

Video Bandwidth: 225 MHz / 6.75 Gbps to 8 x HDMI female
Resolutions: 480i to 1080p
Audio: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Sampling frequency of audio: 32 ~ 192 kHz
Outputs 8 x HDMI
8 x uncompressed AV and data

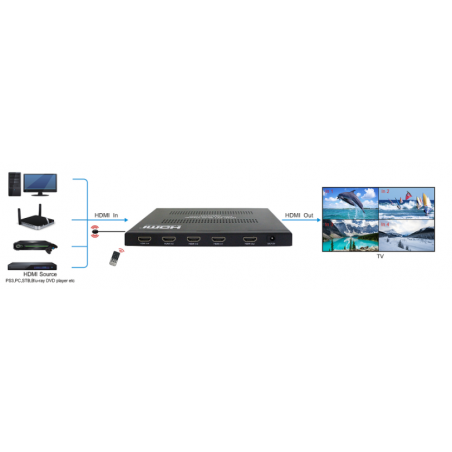

4 x HDMI inputs for 1 HDMI output
The 4 inputs can be combined into 10 variants
Seamless switching of HDMI signal
Supports Audio switching
Resolution: up to 4K@30Hz input
Supports IR remote control
Push buttons on the front for output mode selection
Bandwidth: 6.75Gbps
Operating temperature: 0 - +40°C
Supply voltage: 12VDC PSU included
Power consumption: 8 Watts
Cable distances, max.: Input 8m, output 10m
Dimensions: 191 x 113 x 17 mm
Weight: 480g

HDMI Matrix over IP.
Video Wall configuration
Setup with DIP switches (TX-RX Pair)
Max 24 transmitters and 96 receivers (contact us for buying TX or RX units separately.) < br> HDMI 1.3, HDCP 1.3.
HDMI loop out to the local monitor
Resolution 1080p @ 60/50/30/25 / 24Hz, 720p @ 60 / 50Hz.
point to point over Cat 6. Maximum . 100meter. Point to many Hotels can be supplied via PoE (802.3af) or 12VDC 1A (PSU included).
Power Consumption: 2.5W.
Switch must support protocol: IGMP Snooping or IFMP.
Delay: 120ms
Operating temperature: 0 ~ 40 ° C.

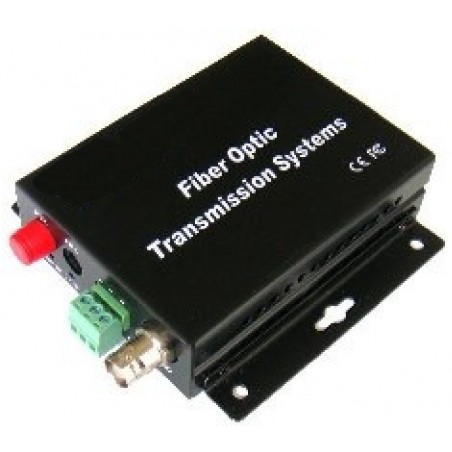

Composite Video, BNC, over Single Mode 9/125my fiber cable
Set consists of transmitter and receiver module
Only single fiber (simplex) is used for digital transmission
Feel free to use normal duplex fiber cable, where one fiber is not used
Up to 10km between transmitter and receiver
Stand-alone or rack mounting

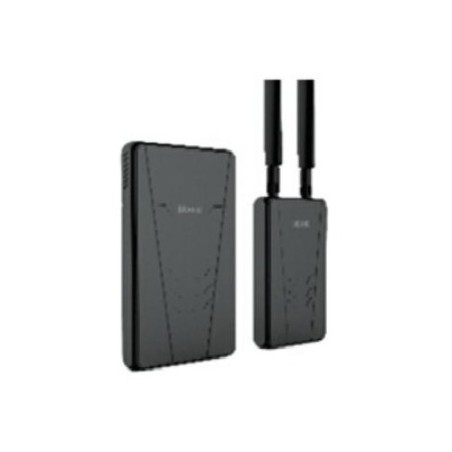

Professional wireless HDMI 1.3 link, very high quality, very high performance
Max. distance up to 120 meters, depending on conditions
HDMI HD and 3G SDI input and output
No delay and no compression
Audio formats include Dolby True HD, DTS master, etc.
AES-128 encryption with air-interface HD video data stream
Can transfer HDMI from point to point
Transmitter and receiver are paired for optimal performance from the factory
Within the same coverage area, 4 sets can work simultaneously
Signal power indicators
Metal housing, compact design
Note: take home only on order.
Orders placed cannot be cancelled.
No right of return.

HDMI video transmitter PoE
Suitable for video wall
With HDMI Loop Out
Delay of approx. 1 second from transmitter to receiver
HDMI 1.4a - H.264
By IP multicast use switch with IGMP Snooping
Range up to 100m
Cables Kat. 5th / 6
EDID Emulation
IR Transfer
1 x RJ45, 1 x DB-9, 1 x HDMI Input, 1 x HDMI Output
Supply IEEE 802.3af / at PoE +; 5V DC, 2A (not supplied)
As receiver, use HDMI-MULTI-HD-M

HDMI Video Receiver with PoE
Transmitter Module is purchased: HDMI-Multi-HD-T
Video Wall with a maximum of 64 units
H.264 Video Encoder / Decoder, IR transfer
Delay of approximately 1 second from transmitter to receiver
HDMI 1.4a
Connection over IP - Use switch with IGMP Snooping
Max. 64 Groups
Range Up to 100m - Point to Switch or to Transmitter
Cables Cat 6a. Good quality
Edid Emulation - possibly not on all screens, then buy it from Danbit
1 x RJ45, 1 x DB-9, 1 x HDMI exits
Supply IEEE 802.3AF / to POE + or 5V DC, 2a (not included)
Requires quality switch When used over IP
Dim: 130 x 82 x 30 mm

The same picture on 16 VGA monitors
1 x VGA male - input
16 x VGA female - output
Resolution up to 1920 x 1440 points
Active splitter means that the distance to the VGA monitor up to 65 meters
Use good quality VGA cables - K-DB15HDM-Mxx from DANBIT

HDMI receiver for HDMI-MULTI-T4

Up to 70 meters with 1080p@60Hz

Input for 5VDC if cable is too long

1 x HDMI male

1 x RJ45 female for patch cable

Point to point cabling

With EDID transmission

1 pc. 4 channel HDMI transmitter

4 pcs. HDMI-MULTI-R4 receivers

Up to 70 meters to receivers

Resolution up to 1080p@60Hz.

HDMI distribution up to 70M.

No external power is required for the RX unit.

Built-in HDMI loop out port on TX unit for an additional HDMI display.

Can be stacked to another TX for 1 in 8/12 out.

Supports RS232, CEC, EDID.

Supports RS232 control.

Receives HDMI video signal via Cat.6A cable up to 100 meters
Resolution: 4K @ 60Hz 4: 2: 0)
Resolution: 4K @ 30Hz 4: 4: 4
Full HD (1920 x 1080)
User hdbaset technology
PoE (POH) - only a power supply of the receiver unit.
HDCP compliant and ready for Blu-ray
Supports IR remote
automatic power saving function (can selectable)
Plug and Play, no software installation
Powered by 48VDC
Dimensions: 140 x 85 x 34 mm
REQUIRE THE BEST QUALITY CABLE! No support if the cord is not from Danbit

Transmits uncompressed HD video and audio over CAT6a / 7 cable up to 100 meters
Can be powered monitors or receivers with hdbaset with PSE
PSE is the equipment that sends PoE out on RJ45 port
Power from mini-USB with no PSE connected
Map HDMI cable, eliminating the need for extra cables
Resolution up to UHD (3840 x 2160), Deep Color and HD Audio formats
4K @ 60Hz 4: 2 : 0
4K @ 30Hz 4: 4: 4
HDCP compliant and Blu-ray ready
Plug and Play no software installation
Compact size.
Easy to install
REQUIRE THE BEST QUALITY CABLE! No support if the cord is from Danbit

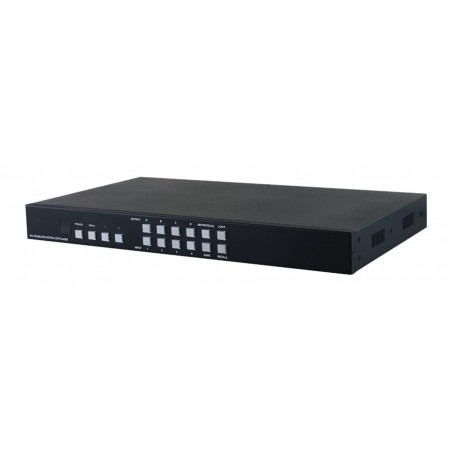

4 x HDMI inputs to 4 x HDMI outputs
Viewing the screens 4 are summarized on a screen
display screen 1 distributed over 4 skærme
Can used with DVI adapters
