Mini DisplayPort splitter
Splitter, fra 1 til 3 Mini DisplayPort enheder

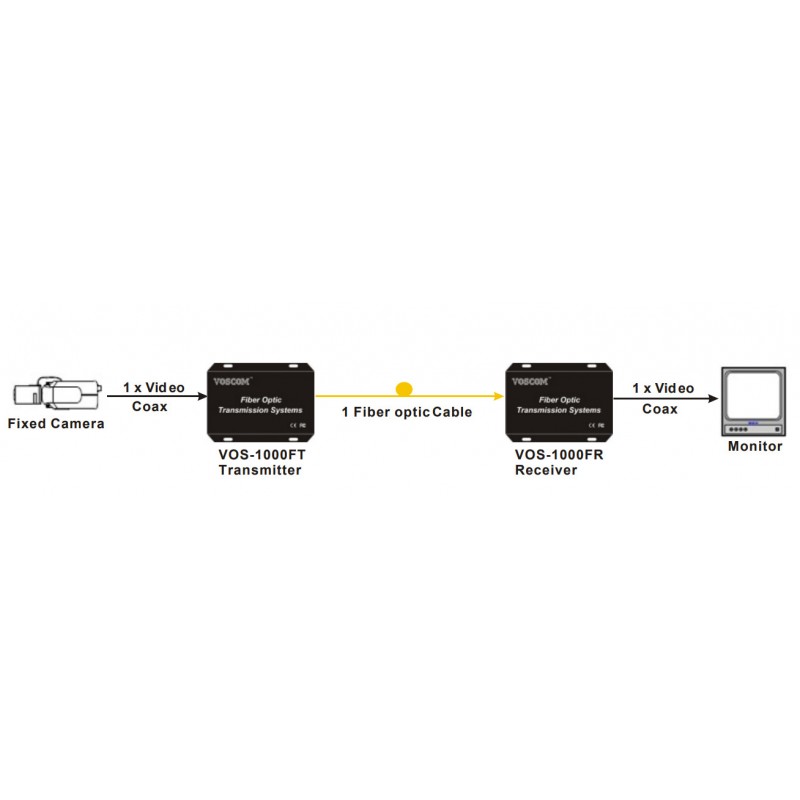

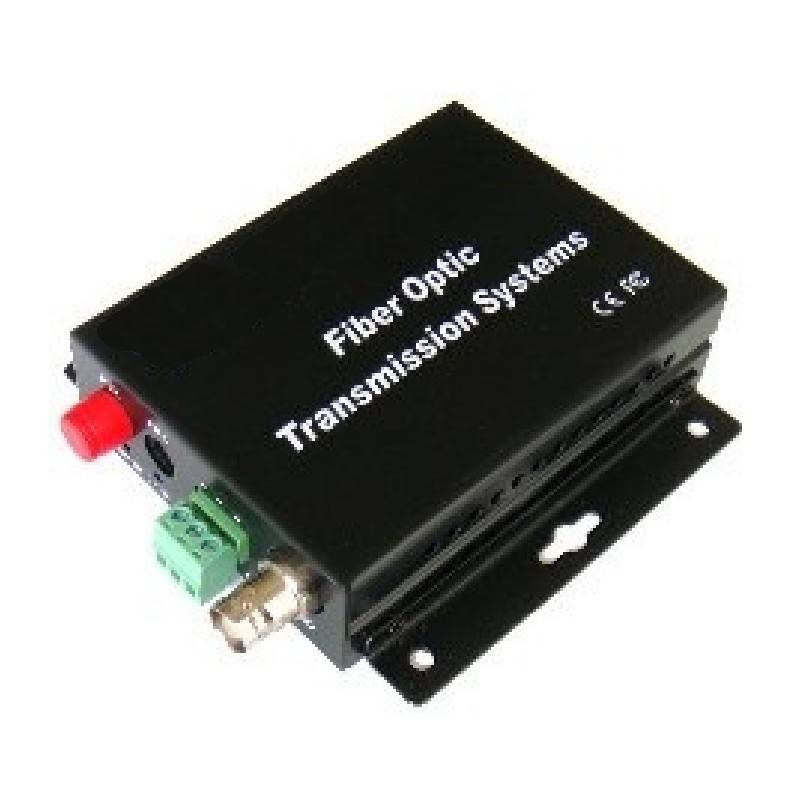

Composite Video, BNC, over Single Mode 9/125my fiber cable
Set consists of transmitter and receiver module
Only single fiber (simplex) is used for digital transmission
Feel free to use normal duplex fiber cable, where one fiber is not used
Up to 10km between transmitter and receiver
Stand-alone or rack mounting
Number of channels: 1 channel video
Video input/output impedance: BNC 75Ω
Video input/output Compatibility: PAL, NTSC, SECAM
Video input/Output voltage: 1.0 Voltpp
Bandwidth: 6.5MHz
Bit resolution: 8-bit digital transmission
Signal-to-noise ratio (SNR): 67 dB
Video: 75 Ohm BNC (Gold Center Pin)
Optical: ST
Stand-Alone Power: Screw terminal block
Rack Power: AC cord
Input power requirement: 5VDC/2A
Power adapter: 100V ~ 240VAC
Power consumption: 3W
Stand-Alone Dimensions: 95mm × 70mm × 25mm
Operating temperature: -40°C ~ +75°C
Humidity: 0% ~ 95% (non-condensing)
MTBF: over 100,000 hours
Splitter, fra 1 til 3 Mini DisplayPort enheder
Hybrid HDMI fiber optic with DC to receiver
ultra resolution 8K, 7680 x 4320
backward compatible
built-in network channel (Ethernet)
EARC (Enhanced Audio Return Channel)
Also supports ARC ( Audio Return Channel)
one-way transmission
bandwidth: 48Gbps
Supporter HDCP2.2 / CEC / EDI
Cable thickness: 4.8mm
3 meters
non-galvanically isolated
Supply From HDMI Source
Transmits uncompressed HD video and audio over CAT6a / 7 cable up to 100 meters
Can be powered monitors or receivers with hdbaset with PSE
PSE is the equipment that sends PoE out on RJ45 port
Power from mini-USB with no PSE connected
Map HDMI cable, eliminating the need for extra cables
Resolution up to UHD (3840 x 2160), Deep Color and HD Audio formats
4K @ 60Hz 4: 2 : 0
4K @ 30Hz 4: 4: 4
HDCP compliant and Blu-ray ready
Plug and Play no software installation
Compact size.
Easy to install
REQUIRE THE BEST QUALITY CABLE! No support if the cord is from Danbit
HDBaseT Repeater med HDBase ind / ud
Maks. afstand 100 meter
Egnet til Mid-range Repeater.
Input og output for HDMI
Kan fjernbetjenes med RS232
Med EDID
Forsyningsspænding: 12VDC
Mål: 190 x 125 x 34 mm
