DVI-D 24 pin male to DVI-I 24 + 5 pin female adapter
Adapter DVI-D Male to DVI-I female

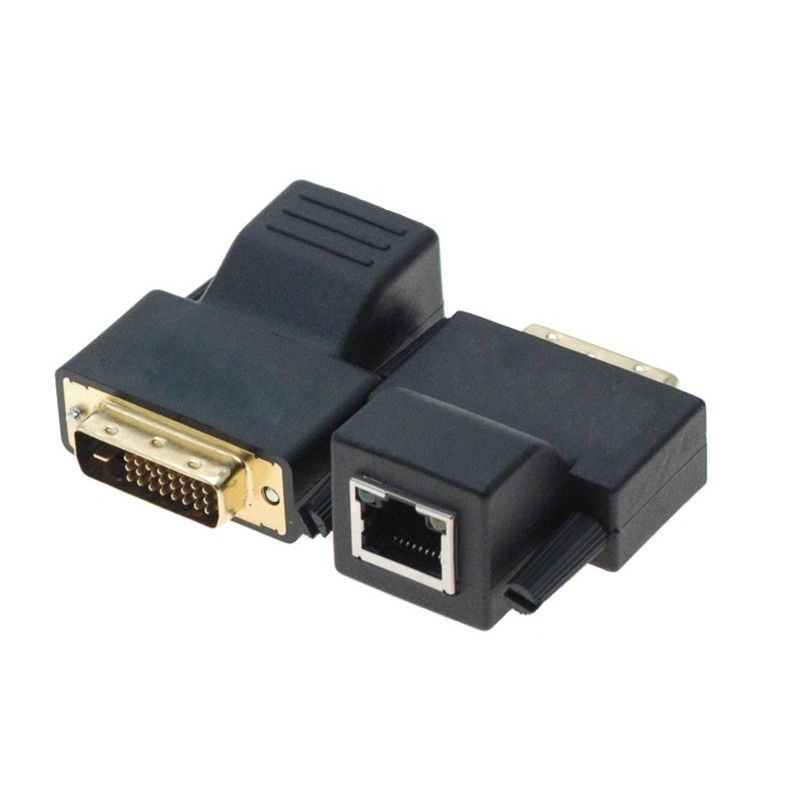

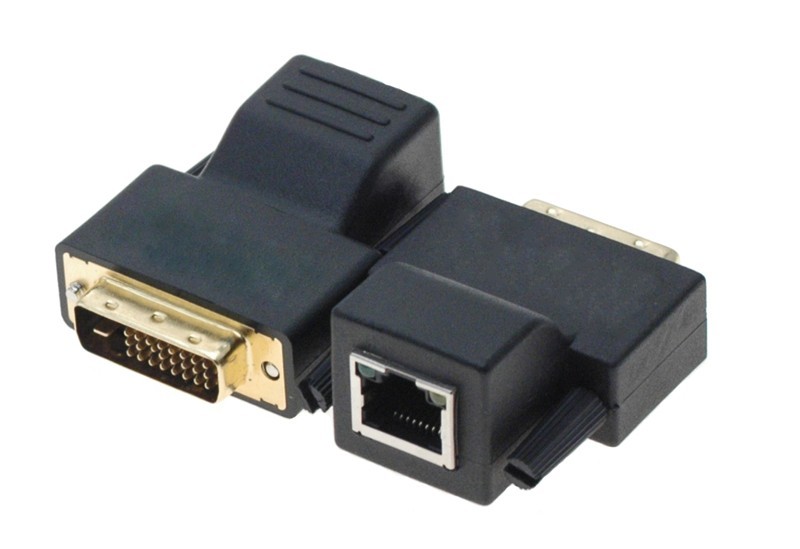

DVI-D Extender with local and remote module up to 50 meters.
Extend DVI-D up to 50 meters via Cat. 6 RJ45 cable
Both units are with DVI-D male
Do not connect network switch
With built-in EDID (emulates monitor)
Power is supplied with 5VDC from the DVI connector on the PC
Can be powered with 5VDC USB Micro
Power consumption at 5VDC is approx. 350mA
External power supply: Purchase additional DC5V with USB A female connector
Consisting of a local module that plugs into the PC's video card with DVI-D output, and a remote module attached to a monitor with DVI-D input. Local module and remote module is connected through a UTP RJ45 category 6 network cable. See DANBITs range of Category 6 network cables in Chapter 27 BOOST DVI50 supports image resolutions up to 1920 x 1200 at 60 Hz.2 paragraph. BOOST DVI50 can be placed next to each other, if the adapter DVIM-F is used.
Adapter DVI-D Male to DVI-I female
Transmits DVI video and audio signals up to 120m over a single CAT6 cable
Supports resolutions up to 1920*1080@60Hz
Supports keyboard and mouse signal transmission
A cable can transmit several signals simultaneously
Transmission distance: CAT 6 120m or TCP/IP
LAN diode flash at link
Plug and play support without any settings
Including DC12V/1A power supply
Size: 164 x 85 x 25 mm
Weight: 2 x 220g
Temperature: 0 - +50°C

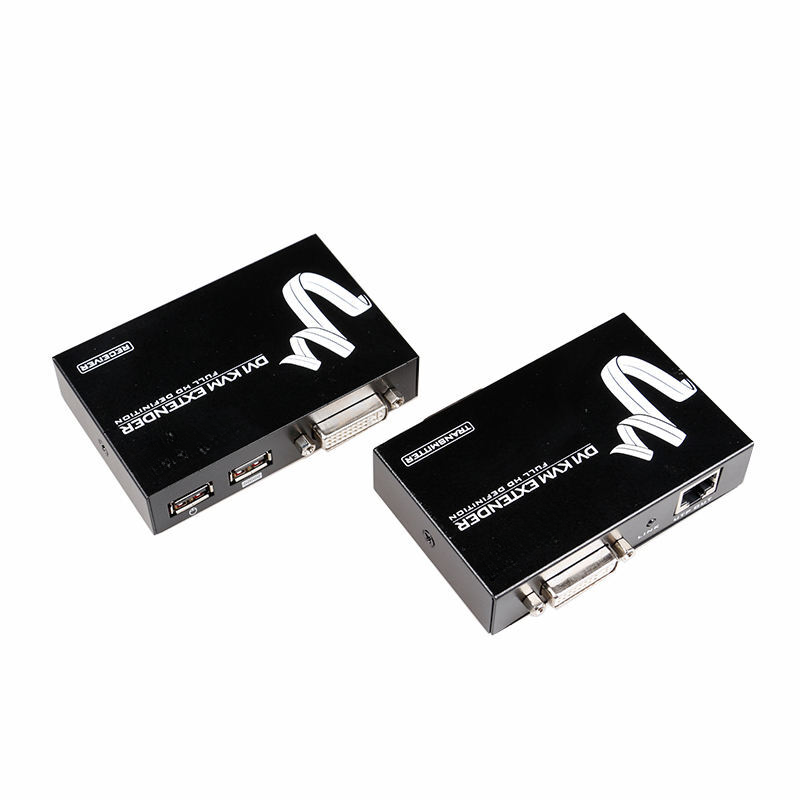

DVI KVM extender
Cat.6 (must be of good quality)
Max. 70 meters
1920*1440 at 60Hz
Supports HDbaseT
1 x USB for keyboard
1 x USB for mouse
consists of a transmitter and a receiver
DC5V, mains adapter included
With the included software for PC can be DVI-D shared via LAN
DVI-ETH + connect a DVI-D screen where desired and retrieves DVI signal over the network
Multiple DVI-ETH + can be connected to the same network
DVI-ETH + can also act as external graphics card via the PC USB port
DVI-I Extender, set of transmitter and receiver
Up to 60 meters with Cat 6
RJ45 Point to point wiring
Supports HDCP 1.2
Supports EDID
Power Supply 5VDC / 1A ( 2 pcs. included)
Dimensions: 87 x 44 x 23mm (L x W x H)
Weight 105g
