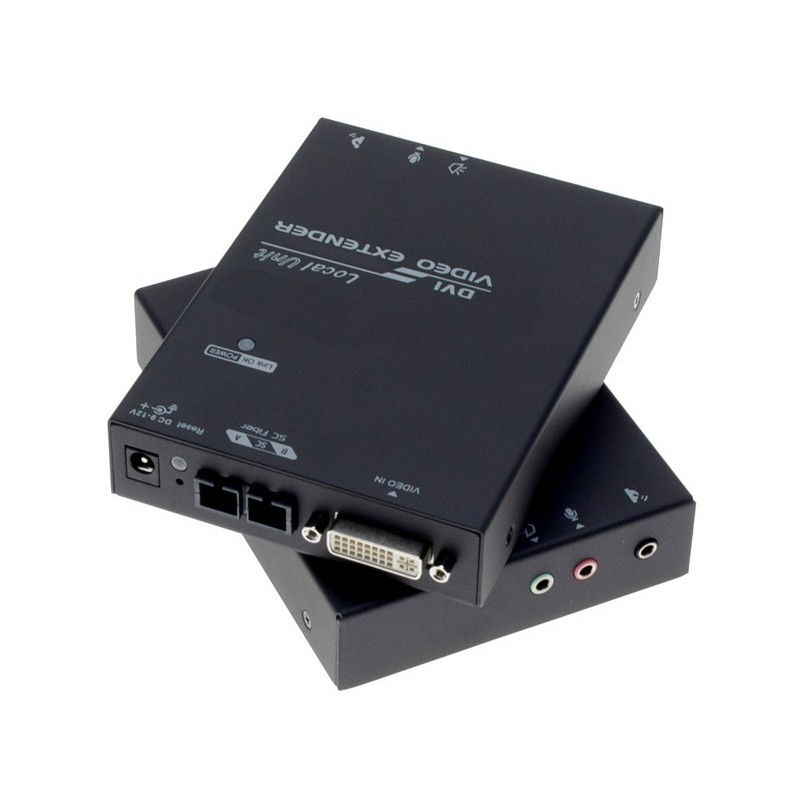

DVI-D extender via Multi Mode fiber cable with SC, up to 1.2 km, 1080I, transmitter and receiver

Sender and receiver for the transfer of DVI signal up to 1.2 km via fiber optics
SC Multi Mode fiber cable PC and monitor
Also transmits audio signals to microphone and speaker
REMAINING STOCK - limited quantity

BOOST-DVI-F-SC
4,455.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Consisting of a local module that plugs into the PC's video card with DVI-D output and a remote module attached to a monitor with DVI-D input. Local module and remote module is connected with a 1 x duplex multimode SC fiber optic cable. See DANBITs selection of SC fiber optic cables

Afstand
Fra nærmodul til fjernmodul Med 50/125 μm fiberkabel op til 1,2 km Med 62,5/125 μm fiberkabel op til 700 meter
DVI
DVI-D (digital DVI signal)
Forsyning
230 VAC til 12 VDC, 1,5 A netadaptere medfølger
Lyd
2 x 3,5 mm jack hunstik til mikrofon og højtaler ind/udgang
Opløsning
1080I v/1,2 Km og 50/125 μm fiberkabel 1080P v/800 meter og 50/125 μm fiberkabel 1080I v/700 meter og 62,5/125 μm fiberkabel 1080P v/350 meter og 62,5/125 μm fiberkabel
