HDMI Matrix over IP.
Video Wall configuration
Setup with DIP switches (TX-RX Pair)
Max 24 transmitters and 96 receivers (contact us for buying TX or RX units separately.) < br> HDMI 1.3, HDCP 1.3.
HDMI loop out to the local monitor
Resolution 1080p @ 60/50/30/25 / 24Hz, 720p @ 60 / 50Hz.

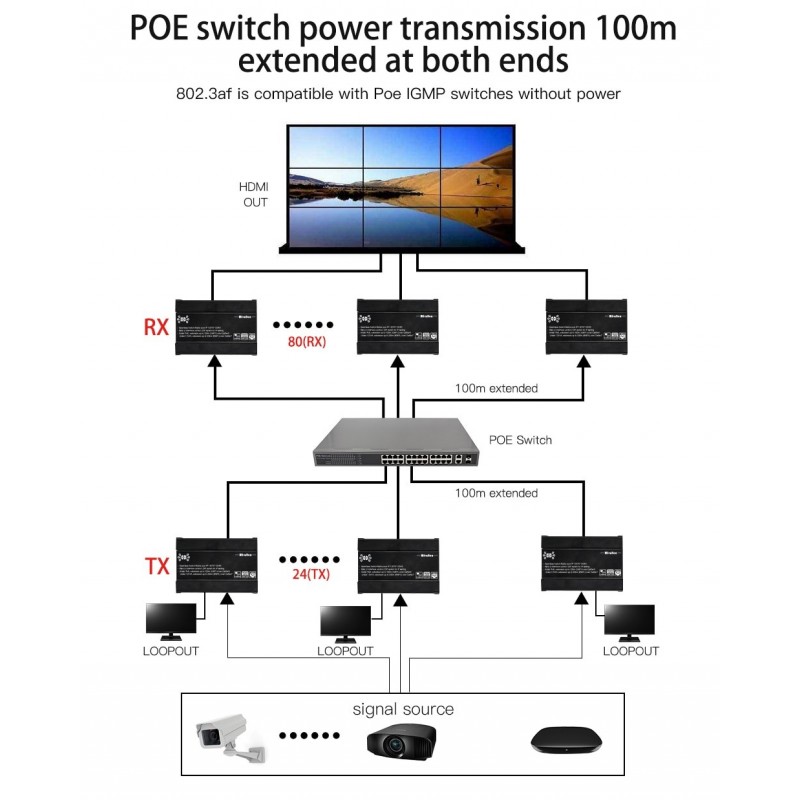

point to point over Cat 6. Maximum . 100meter. Point to many Hotels can be supplied via PoE (802.3af) or 12VDC 1A (PSU included).
Power Consumption: 2.5W.
Switch must support protocol: IGMP Snooping or IFMP.
Delay: 120ms
Operating temperature: 0 ~ 40 ° C.

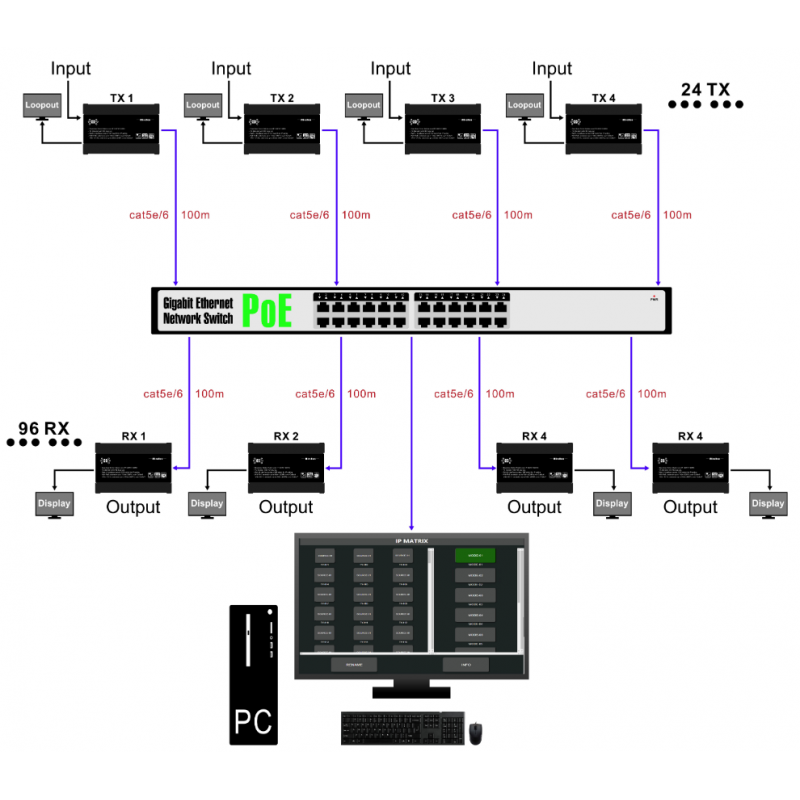

HDMI MATRIX24X96-IP, for example. connected to a 48 port PoE switch (with IGMP eller IFMP Snooping). So you decide how many inputs and outputs you want. In this way you can achieve longer range, since a network cable can run 100 meters.
Technician: TS
Videograbber HDMI til USB 2.0
Opløsning som videokilde
H.264 komprimeret video
Video og snapshot
4K2K Video Wall kontroller boks til 4 skærme med HDMI
Visnings-opsætning med DIP-switche
3 indgange HDMI, DisplayPort, DVI-I (VGA) og YPbPr
4 x HDMI udgange
Kan kaskadekobles til flere kontrollere - large-scale video wall
Mange visnings-muligheder - landskab/portræt
30 pre-definerede playback modes
4K2K HDMI loop out port - kaskadeforbindelse
Har PIP og and POP
Dynamisk aspect justering uden forvrængning
Power on/off via signal detektering
Ingen software kræves
HDMI, HDCP and DVI compatible 32 x 32 MATRIX
Modular - input and output modules
Input and output modules can be mixed and added to 8 × 8 input module and output module
4 input and 4 output modules with HDMI, DVI
VGA module is only input
Supports a wide range of PC and HDTV resolutions from VGA to WUXGA
480i to 1080p and 4K2K @ 24/25/30 Hz
Control of the matrix via the front panel, RS-232, Telnet, WebGUI controls
10 available preset settings
3 EDID modes: Standard, Dynamic and Manuel
Power supply with redundancy
HDMI cable up to 15 m
HDbaset 5Play ™ convergence support HD video, HD audio, PoC
Ethernet and IR / RS-232 control
HDBaseT Repeater med HDBase ind / ud
Maks. afstand 100 meter
Egnet til Mid-range Repeater.
Input og output for HDMI
Kan fjernbetjenes med RS232
Med EDID
Forsyningsspænding: 12VDC
Mål: 190 x 125 x 34 mm
