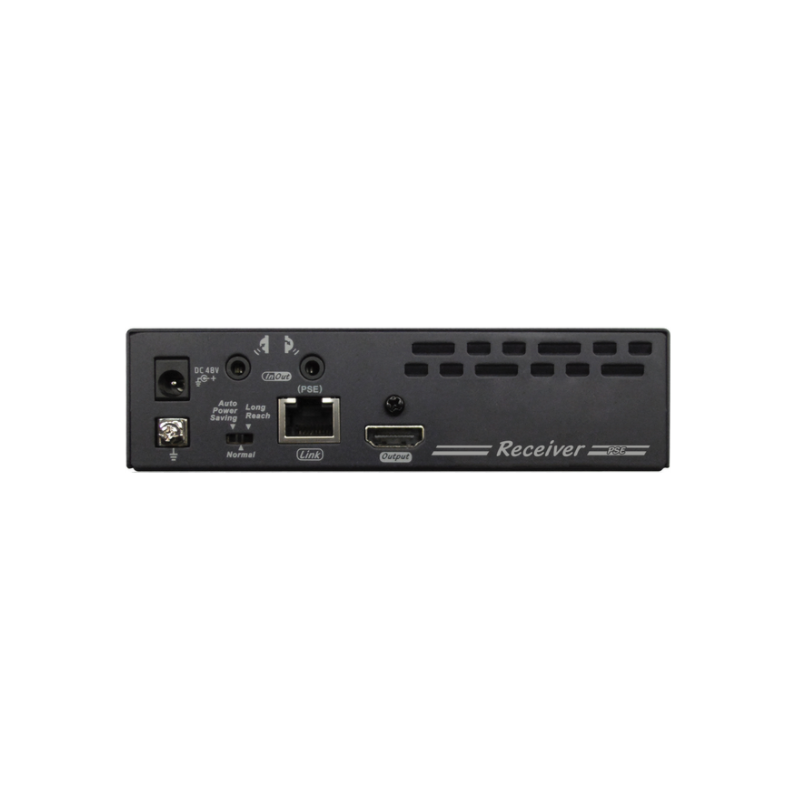

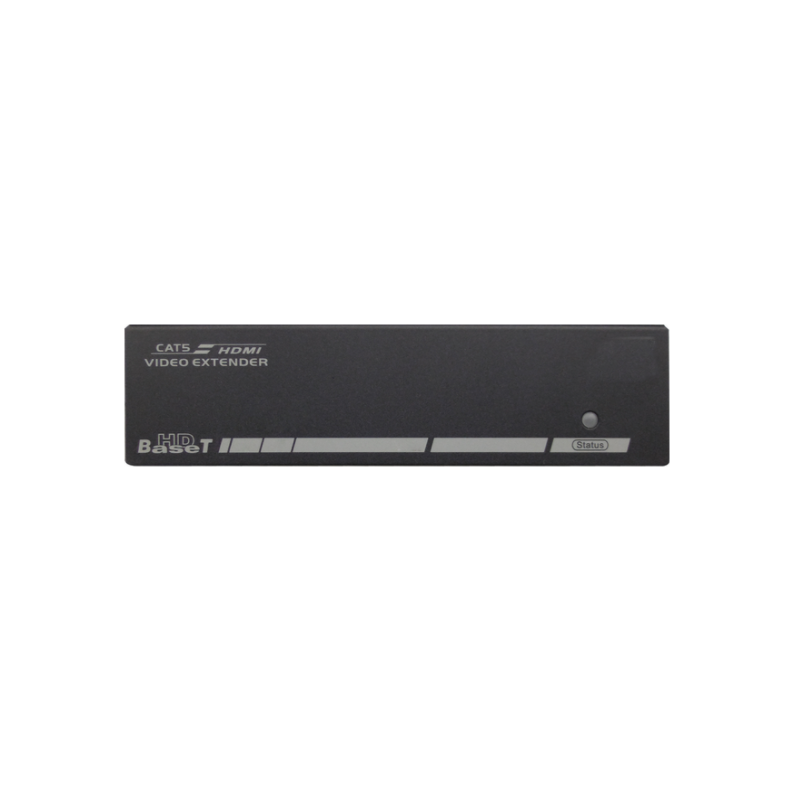

4K HDMI Receiver of Cat.6A, 60Hz @ 4K, 4K @ 30Hz, up to 100 meters, with PoH, PoE

Receives HDMI video signal via Cat.6A cable up to 100 meters
Resolution: 4K @ 60Hz 4: 2: 0)
Resolution: 4K @ 30Hz 4: 4: 4
Full HD (1920 x 1080)
User hdbaset technology
PoE (POH) - only a power supply of the receiver unit.
HDCP compliant and ready for Blu-ray
Supports IR remote
automatic power saving function (can selectable)
Plug and Play, no software installation
Powered by 48VDC
Dimensions: 140 x 85 x 34 mm
REQUIRE THE BEST QUALITY CABLE! No support if the cord is not from Danbit

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number BOOST-HDMI100-4K-RS
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

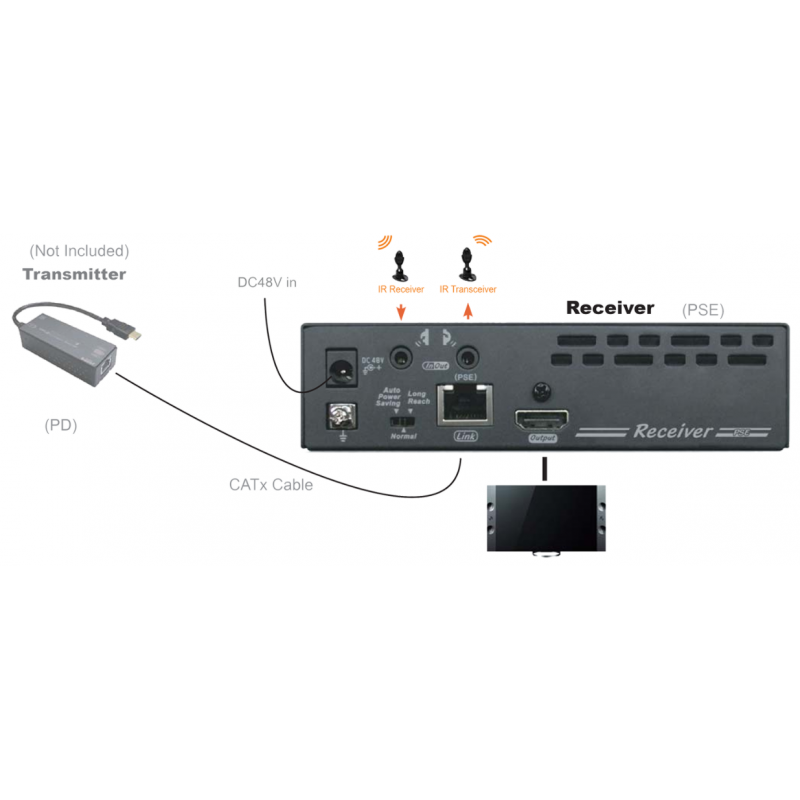

HDMI receiving the BOOST HDMI100-4K-RS is a hdbaset Extender solution which enables the HDMI extension through a single cat. 6a cable up to 100 meters at 1080p (or 70 meters by dissolving 4K), comply with HDCP 1.4. The built-in Auto EDID configuration function ensures the optimized output. It is the best solution to the factory, campus, military, office, medical use, control or simple digital signage.

It also requires no software or drivers and easy to install. Extender is compatible with all leading operating systems and supports all USB device types from high-speed web cameras, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.

The producer joined hdbaset Alliance and developed hundreds of hdbaset Extenders. Via hdbaset Extenders, users have a better experience of ultra-high-definition video audio, Ethernet, control, USB and POH (Power over hdbaset). Hdbaset Extenders transmit long as 100 meters through a single cable, even more, they can provide up to 4K video, and we expect 8K in the near future.

4K HDMI Transmitter of Cat.6A cable, with POH.
4K HDMI Transmitter of Cat.6A cable, with POH. 4K @ 60Hz, 30Hz @ 4K, 100 meters. Can be powered from hdbaset with PSE

Transmits uncompressed HD video and audio over CAT6a / 7 cable up to 100 meters
Can be powered monitors or receivers with hdbaset with PSE
PSE is the equipment that sends PoE out on RJ45 port
Power from mini-USB with no PSE connected
Map HDMI cable, eliminating the need for extra cables
Resolution up to UHD (3840 x 2160), Deep Color and HD Audio formats
4K @ 60Hz 4: 2 : 0
4K @ 30Hz 4: 4: 4
HDCP compliant and Blu-ray ready
Plug and Play no software installation
Compact size.
Easy to install
REQUIRE THE BEST QUALITY CABLE! No support if the cord is from Danbit
