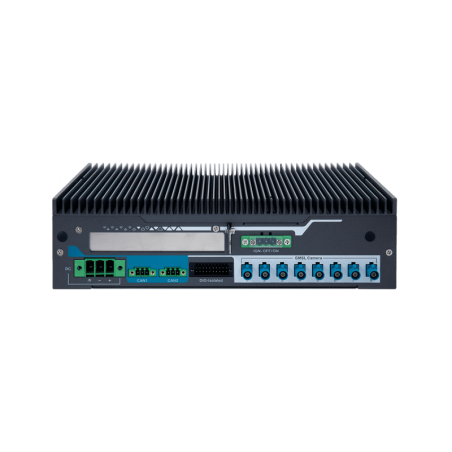

Supports NVIDIA® Jetson AGX Orin™
1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores
Support 2 x GbE + 4 x IEEE 802.3at GbE PoE+ ports
Support 8 GMSL cameras (ON Special request, not standard)
2 x RS-232/422/485
5 x USB
16 isolated DI/O (special request, not standard)
2 x isolated CAN Bus
HMDI 2.1, up to 8K@60 Hz
Operating Temperature -25°C ~ +70°C (TDP: 30W)
DC 9~48V wide range power input & Ignition power control
REMARK! 2 versions :
Ver 1: Jetson AGX Orin 32GB,2 x LAN, 8 x GMSL, 2 x serial, 16 x DIO(8 x DI, 8 x DO), 2 x CANbus
Ver 2: Jetson AGX Orin 32GB,2 x LAN, 4 x PoE+, 2 x serial, 16 x DIO(8 x DI, 8 x DO), 2 x CANbus

Fanless design (embedded heat pipe cooling solution)

12/13 generation CoreTM i9/i7/i5/i3 processor (Alder Lake-S/Raptor Lake-S)

Up to 60W GPU MXM module expansion

802.3af (15.4W)/802.3at(25.5W) Gigabit PoE ports

DP x2 + HDMI x 1 and DVI x 1 (supports 4 independent displays)

On/off delay control / configurable ignition current control

Supports TPM 2.0 and Time-Sensitive Networking (TSN)

Two mPCIe for optional WiFi/3G/4G/GPS or I/O expansion supported

Front-accessible I/O

1 x M.2 B for storage or 5G/LTE +1 x M.2 E-key for WiFi/BT

1 x M.2 M for NVMe SSD

285x230x 90 mm (9.84" x11.50" x 3.54"), fanless 285x230x110 mm (9.84" x11.50" x 4.33"), w/ FAN

DC 9~36V input

CE, FCC Class A, E-mark

optional extras

Dual DDR5 SO-DIMM memory slots (up to 96 GB)

Optional Hailo AI accelerator via M.2 (up to 26 TOPS)

1x M.2 M-Key NVMe PCIe x4 (2242/2260/2280)

1x M.2 E-Key 2230 for Wi-Fi/Bluetooth

2x SATA III ports for storage expansion

1x HDMI and 3x DisplayPort outputs (up to 8K resolution)

1x 2.5GbE and 1x 1GbE RJ45 LAN ports

4x COM ports (2x RS-232/422/485 selectable)

3x USB 3.2 Gen 2 (2x Type-A, 1x Type-C), 1x USB 3.2 Gen 1, 4x USB 2.0

8-bit programmable GPIO header

Line-in/Line-out audio ports (Realtek ALC897)

Wide-range DC IN: 12–36 V via 3-pin terminal block

Operating temperature: -20°C to 60°C

Dimensions: 253 x 201 x 111.8 mm

Weight: 5.25 kg

Wall-mountable design for flexible installation

8//6-core Cortex A78AE v8.2 64-bit Arm CPU

8GB/16GB LPDDR5

1x M.2 2280 M-Key NVMe

Supports 1x M.2 2230 E-Key, 1x M.2 3042/3052 B-Key

2x Nano SIM slots

4x RJ45 GbE or 4x M12 PoE (optional configuration)

3x USB 3.2 Type-A ports

2x USB 2.0 Type-A, 1x USB 2.0 Type-C, 1x USB 2.0 Micro-USB

2x DB9 COM ports (RS-232/422/485) and 1x DB9 CANbus

HDMI output with max. resolution 3840x2160@60Hz

Operating temperature -20°C to 60°C

Dimensions: 277 x 180 x 62 mm

Weight: 3.5 kg

Wall mounting ready

DC IN 12V–24V via 3-pin terminal block

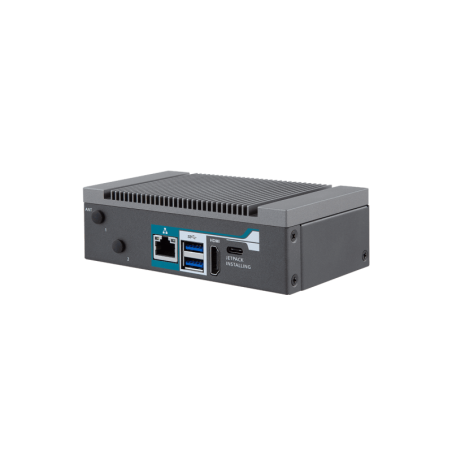

Fanless PC with NVIDIA Jetson Orin module Up to 100 TOPS

4GB/8GB 64-bit LPDDR5

1x M.2 2280 M-Key NVMe PCIe x4

Supports 1x M.2 2230 E-Key, 1x M.2 3042/3052 B-Key

2x Nano SIM slots

2x RJ45 GbE

3x USB 3.2 Type-A ports

2x DB9 COM ports and 1x DB9 CANbus

HDMI output with max. resolution 3840x2160

Operating temperature -20°C to 60°C

Dimensions: 152 x 112 x 62 mm

Weight 1.4 kg,

Wall mounting and DIN-Rail

DC IN 12V-24V with 3-pin terminal block

Intel® 14th/ 13th/ 12th-Gen Core™ 35W/ 65W LGA1700 CPU

Supports single NVIDIA® 350W GPU with Gen4 x16 single and dedicated GPU-locking bracket

3 x8 PCIe slots (Gen3 x4) for add-on cards

Up to 64GB ECC/ non-ECC DDR5 4800 with Intel R680E chipset (2x SODIMM)

6 x USB 3.2 Gen2

2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2)

3 x 2.5GbE, and 1x optional 10GbE connectivity

3 x PCIe slots for add-on cards and industrial cameras

2 x Mini PCIe sockets for CAN bus, WiFi, and mobile connectivity

1x VGA connector, supporting 1920 x 1200 resolution

1x DisplayPort connector, supporting 4096 x 2304 resolution

1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD

Two front-accessible storage options: 1x 2.5" SATA tray and request 1x NVMe tray

Wide temperature operation range from -25°C to 60°C

Dimensions: 214 mm W x 400 mm D x 196 mm H, weight 6.2 kg

8V to 48V wide-range DC input with ignition power control, 3-pin + 4-pin pluggable terminal block for 8V to 48V DC input with ignition control

Supports Intel® 14th/13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU

1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 130W TDP (Max. graphics card dimension is 188 mm(L) x 131 mm(W), dual slot allocation)

Support NVIDIA® RTX series GPU card up to 130W TDP

5 x 2.5GbE and 1xGbE with on special request PoE+ (ports 3~6)

1 x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screwlock

4 x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors

2 x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors7 x USB 3.2

2 x USB 2.0

2 x RS232/422/485 (COM1/2), 2 x RS232 (COM3/4)

1 x Mini PCIex, 1 x Full-size mini PCI Express socket

M.2 2280 M key socket (Gen4x4) supporting NVMe SSD

Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support*

1 x VGA 1920x 1200, 1 x DVI-D 1920x1200, 1 x Display port 4096x2304

MezIO™ interface for add-on expansion

-25°C to 60°C wide temperature rugged operation

CE/FCC Class A, according to EN 55032 & EN 55035

240 mm (W) x 225 mm (D) x 110.5 mm (H)

Model 0: No PCI/PCIe expansion

Model 1: 1 x PCI/PCIe slot

Model 2: 2 x PCI/PCIe slots - supports GPU cards up to 130W

CPU: Intel® Core™ i9/i7/i5/i3 (14th/13th/12th generation, LGA1700, max. 65W TDP)

RAM 2x DDR5 SO-DIMM, ECC/non-ECC, up to 5600 MHz, max. 64 GB

2x 2.5" SATA

3x mSATA sockets

1x M.2 Key M for NVMe SSD

2x GbE LAN (upgradable to 2x 10 GbE LAN upon order)

Up to 2x PCI/PCIe slots

1x M.2 + 2x Full-size Mini PCIe

Support for CMI and CFM modules (including for I/O expansion, ignition control, and PoE+)

2x DisplayPort

1x VGA

Up to 8x USB (USB 3.2 Gen2 and USB 2.0)

4x COM (RS-232/422/485)

9–48 VDC input, with ignition control

Operating temperature: -40 °C to 70 °C

Certifications: Military: MIL-STD-810G, Transportation: EN50155 (EN 50121-3-2), Safety: UL, cUL, CB, IEC/EN 62368-1

Supports Intel® OpenVINO™

Intel® ESDQ Certified: Edge Insights for AMR Software Stack

The system is assembled according to your needs. Contact us for advice and pricing.

14/13/12th Gen Intel® Core™ Series 65W max
2x DDR5 4800 MHz SO-DIMM Socket, 64GB max
1x DP, 1x HDMI, 1x VGA
1x MXM 3.1 Type A/B for GPU module
1x 2.5GbE and 1x 1GbE LAN,
1x 20Gbps USB3.2 Gen2 x2, Type C Connector
3x 10Gbps USB3.2 Type A, 4x 5Gbps USB3.2 Type A
4x M.2 NVMe SSD or SATA SSD
Operating temperature -40°C to 70°C
Power Input 9-48 VDC
Dimension 260 x 200 x 85 mm
Support OS: Windows®11, Windows®10, Ubuntu Desktop 22.04 LTS

IP67 waterproof GPU computer with NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Patented waterproof 2U 19" chassis for rack or wall-mount*
Guaranteed non-throttling GPU performance up to 62°C ambient
Up to eight 802.3at Gigabit PoE+ ports via M12 X-coded connectors
VGA, USB 2.0 and COM ports via M12 A-coded connectors
8~48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 certified
*R.O.C Patent No. I697759, *CN Patent Pending

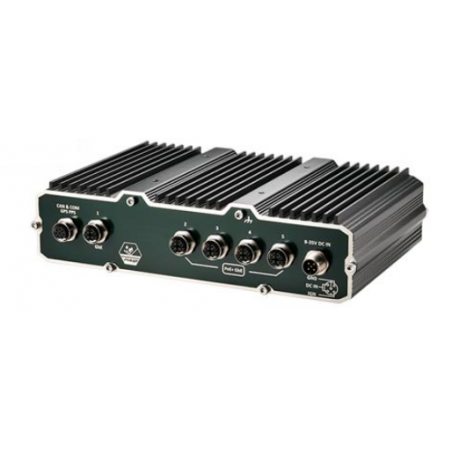

Powered by NVIDIA® Orin™ NX or Orin™ Nano SoM bundled with JetPack
IP66 waterproof and dustproof
4x PoE+ GbE via M12 X-coded connectors
1x CAN FD
1x RS232 via M12 A-coded connectors
-25°C to 70°C fanless operation (No throttling at 70°C with 20W TDP Mode)
225 x 136 x 55 mm low-profile design
8V to 35V wide-range DC input with built-in ignition power control

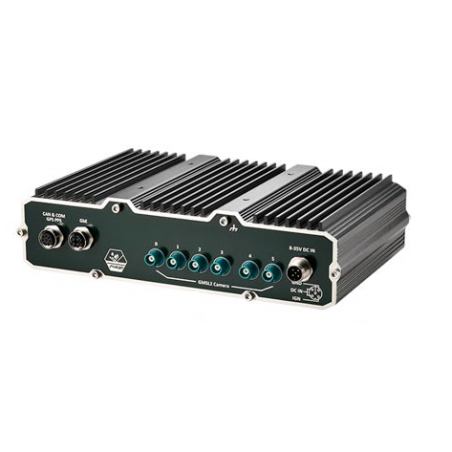

Powered by NVIDIA® Orin™ NX or Orin™ Nano SoM with JetPack
IP66 waterproof and dustproof
6x GMSL2 car cameras via FAKRA Z connector (requires camera manufacturers to have dedicated drivers)
(We can offer GMSL camera with driver support)
1x CAN FD
1x RS232 via M12 A-coded connectors
-25°C to 70°C fanless operation (no throttling at 70°C with 20W TDP mode)
225 x 136 x 55 mm low profile design
8V to 35V wide range DC input with built-in ignition current control

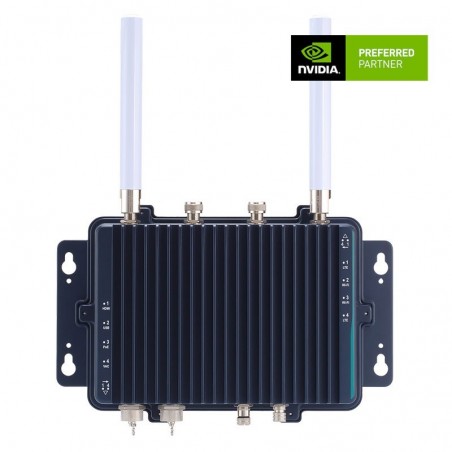

IP67-rated design, specifically for outdoor environments
NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
High AI computing performance for GPU accelerated processing
8GB RAM
1 x C3 USB 2.0
1 x M12 Ethernet
1 x C3 HDMI
4 N-jack antenna openings with water-proof design
Features M12 lockable I/Os
1 IEEE 802.3at GbE PoE (30W)
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
OS support Linux Ubuntu 18.04

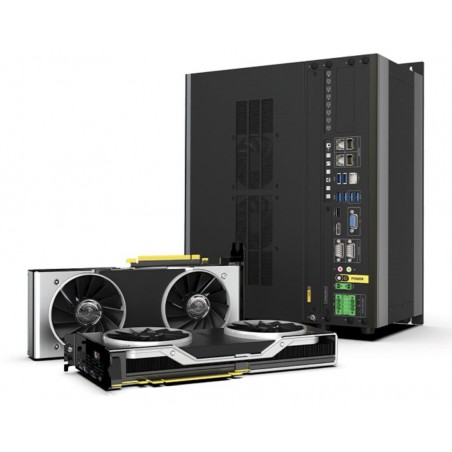

Supports 9th/8th Gen Intel® Xeon®/Core ™ processor (35W/65W/80W)
Nvidia / AMD GPU Support up to 328mm
Intel Gen. 8/9, C246 Chipset
2 x DDR4 SO-DIMM, supports ECC/non ECC type up to 2666 MHz, 64GB
4 X 2.5" Hot Swappable SATA III HDD/SSD BAYS (MAX HEIGHT 15 mm)
1 x M.2 m Key operation (NVME), 1 x M.2 E key (CNVI)
VGA, HDMI, DP
6x USB, 1x UBS internal
2 x RS232/422/485
2 x Front Available SIM card slot for signal redundancy
Power 9~48Vdc, 220W
Dimensions 105x190x360mm (wxDxH)
Operating temperature -40°C to 70°C depending on CPU

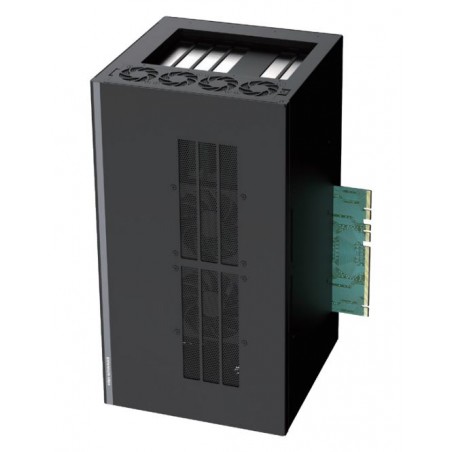

9~48VDC via 3-pin Terminal Block
​Optional AC/DC or DC/DC 24V 480W Power Supply
Optional AC/DC or DC/DC 24V 1000W Power Supply

2 x PCIE X16 Slots for full length GPU cards
1 x PCIE X4 Slot and 1 x PCIE X1 Slot for add-on cards
Intelligent cooling Design for high-performance GPU cards
Military Standard Shock Vibration Resistant
