Fanless PC with NVIDIA Jetson Orin NX/Nano module – Up to 100 TOPS

Supports NVIDIA® Jetson AGX Orin™

1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores

Supports 2 x GbE

Supports 8 GMSL cameras (Can be specially ordered with 4x PoE instead)

2 x RS-232/422/485

5 x USB

16 isolated DI/O (special request, not standard)

2 x isolated CAN Bus

HDMI 2.1, up to 8K@60 Hz

Operating temperature -25°C ~ +70°C (TDP: 30W)

DC 9~48V wide range power input and ignition power control

Powered by NVIDIA® Orin™ NX or Orin™ Nano SoM with JetPack
IP66 waterproof and dustproof
6x GMSL2 car cameras via FAKRA Z connector (requires camera manufacturers to have dedicated drivers)
(We can offer GMSL camera with driver support)
1x CAN FD
1x RS232 via M12 A-coded connectors
-25°C to 70°C fanless operation (no throttling at 70°C with 20W TDP mode)
225 x 136 x 55 mm low profile design
8V to 35V wide range DC input with built-in ignition current control

Powered by NVIDIA® Orin™ NX or Orin™ Nano SoM bundled with JetPack
IP66 waterproof and dustproof
4x PoE+ GbE via M12 X-coded connectors
1x CAN FD
1x RS232 via M12 A-coded connectors
-25°C to 70°C fanless operation (No throttling at 70°C with 20W TDP Mode)
225 x 136 x 55 mm low-profile design
8V to 35V wide-range DC input with built-in ignition power control

IP67-rated design, specifically for outdoor environments
NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
High AI computing performance for GPU accelerated processing
8GB RAM
1 x C3 USB 2.0
1 x M12 Ethernet
1 x C3 HDMI
4 N-jack antenna openings with water-proof design
Features M12 lockable I/Os
1 IEEE 802.3at GbE PoE (30W)
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
OS support Linux Ubuntu 18.04

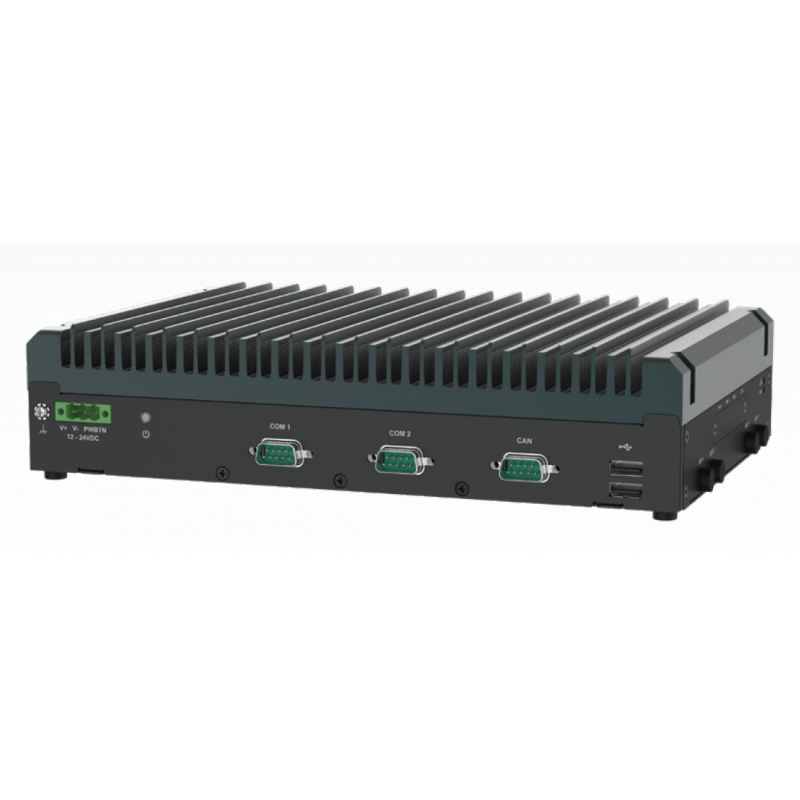

Fanless PC with NVIDIA Jetson Orin module Up to 100 TOPS

4GB/8GB 64-bit LPDDR5

1x M.2 2280 M-Key NVMe PCIe x4

Supports 1x M.2 2230 E-Key, 1x M.2 3042/3052 B-Key

2x Nano SIM slots

2x RJ45 GbE

3x USB 3.2 Type-A ports

2x DB9 COM ports and 1x DB9 CANbus

HDMI output with max. resolution 3840x2160

Operating temperature -20°C to 60°C

Dimensions: 152 x 112 x 62 mm

Weight 1.4 kg,

Wall mounting and DIN-Rail

DC IN 12V-24V with 3-pin terminal block

NVIDIA® Jetson Orin™ Nano with up to 1024 CUDA cores

8-core Arm® CPU and 4GB/8GB LPDDR5 RAM

1× GbE LAN and 2× USB 3.2 + USB-C

HDMI 2.0 with 4K output

Integrated 128GB NVMe SSD (M.2 2280)

Supports Wi-Fi module via M.2 E-key

9–24V DC input, low power consumption

Operation from -25°C to +50°C

Ideal for compact AI, IoT and vision solutions
