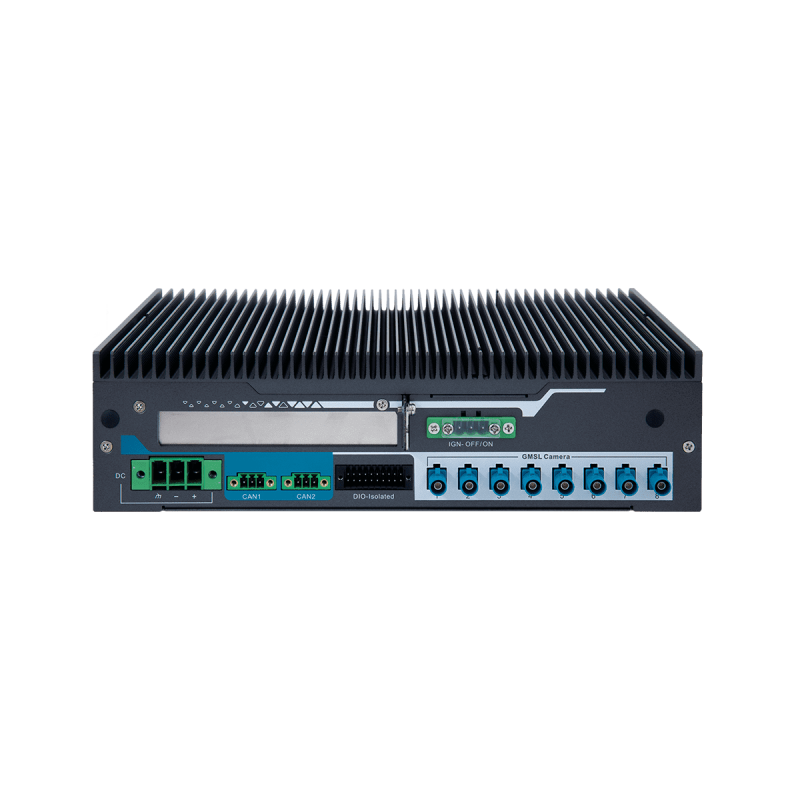

NVIDIA® Jetson AGX Orin™ AI Embedded Computer, 2x Isolated CAN Bus, NVIDIA Ampere™ architecture GPU with 56 Tensor Cores

Supports NVIDIA® Jetson AGX Orin™
1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores
Support 2 x GbE + 4 x IEEE 802.3at GbE PoE+ ports
Support 8 GMSL cameras (ON Special request, not standard)
2 x RS-232/422/485
5 x USB
16 isolated DI/O (special request, not standard)
2 x isolated CAN Bus
HMDI 2.1, up to 8K@60 Hz
Operating Temperature -25°C ~ +70°C (TDP: 30W)
DC 9~48V wide range power input & Ignition power control
REMARK! 2 versions :
Ver 1: Jetson AGX Orin 32GB,2 x LAN, 8 x GMSL, 2 x serial, 16 x DIO(8 x DI, 8 x DO), 2 x CANbus
Ver 2: Jetson AGX Orin 32GB,2 x LAN, 4 x PoE+, 2 x serial, 16 x DIO(8 x DI, 8 x DO), 2 x CANbus

EPC-JETSON
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

This embedded pc is an AI-powered industrial system, integrating the NVIDIA Jetson AGX Orin, a highly capable platform optimized for AI and deep learning. The Jetson AGX Orin boasts a 1792-core Ampere GPU and 8-core ARM Cortex-A78AE CPU, providing immense processing power. It supports up to 275 TOPS of AI performance, enabling real-time decision-making, advanced video analytics, and robotics control. With multiple I/O interfaces, it handles high-bandwidth applications like GMSL cameras for autonomous systems. This makes the AEC-6100 perfect for industrial automation, machine vision, and AI-driven edge applications in harsh environments.

CPU
Arm
8-core Arm® Cortex® -A78AE v8.2 64-bit CPU
Andet
1
1 x eMMC 5.1, 64GB
Antenne
6
6 Antenna hole for WiFi/4G/5G/LTE/GPRS/ UMTS
Chok/Vibration
MIL-STD-810G
Shock Operating, MIL-STD-810G, Method 516.7, Procedure I Vibration Operating, MIL-STD-810G, Method 514.6, Procedure I, Category 4
Dimensioner
260 x 182 x 69 (W x D x H)
260 x 182 x 69mm (W x D x H)
Driftstemperatur
-25~70
-25 ~ 70°C (-13 ~ 158°F) (TDP: 30W), -25 ~ 55°C (-13 ~ 131°F) (TDP: 40/50W)
Forsyning
9V ~ 48V
DC 9V ~ 48V
Grafik
GPU
1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores
HDMI
1
1 x HDMI 2.1, up to 8K 60Hz,
LAN
2
2 x 10/100/1000 Base-T Ethernet GigE LAN, RJ45 connector
Luftfugtighed
5 ~ 95%
Operating Humidity 5 ~ 95% (non-condensing)
M.2
2
M.2 Key M Socket (2280, PCIe x4)
Montering
Vesa, DIN, Wallmount
Wallmount by mounting bracket, DIN Rail and VESA Mount (Optional)
Mål og vægt
kg
3.8 Kg
OS SUPPORT
Linux, NVIDIA JetPack SDK
Linux / NVIDIA JetPack SDK
USB
5
1 x USB 3.2 Gen 2, 4 x USB 3.1(5Gbps)
VESA standard
Vesa
VESA Mount (Optional)
CAN Bus Connection
2
2 x Isolated CAN Bus support CAN FD
Serial Porte
2
2 x RS-232/422/485 ports
RAM
32GB
32GB LPDDR5 DRAM
WiFi
1
Wifi is option
GSM/LTE Option
4G, 5G, LTE, GPRS, UMTS
Options
EMC
CE,FCC
CE,FCC, EN50155(TBA), EN50121-3-2 (TBA)
