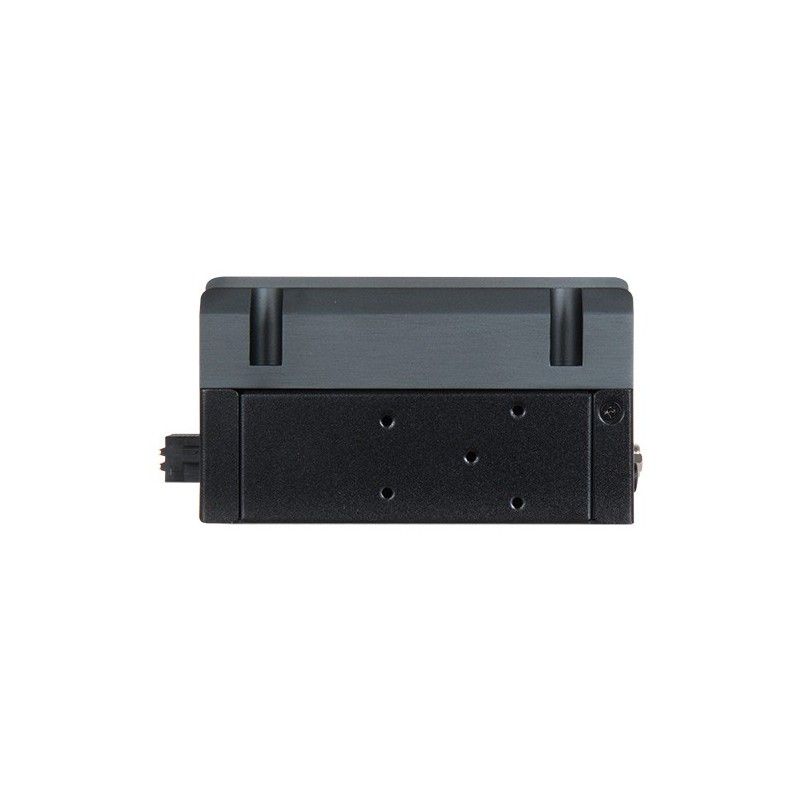

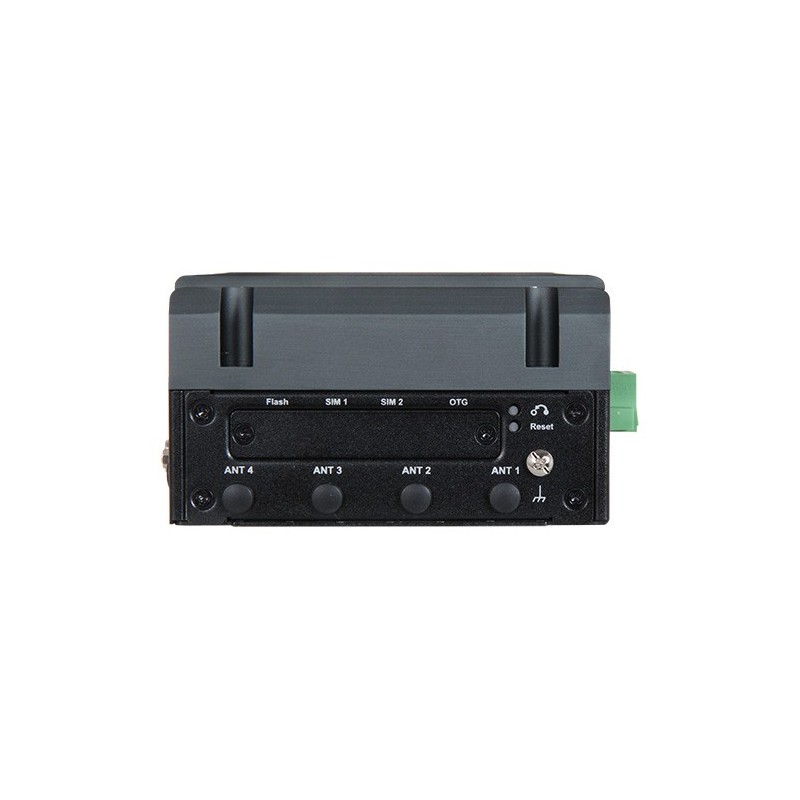

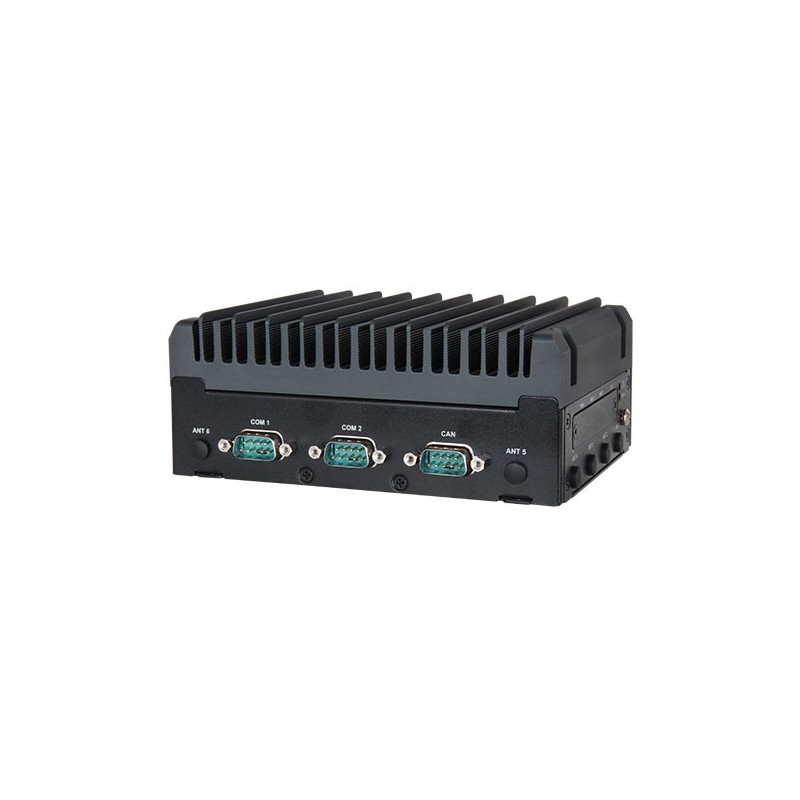

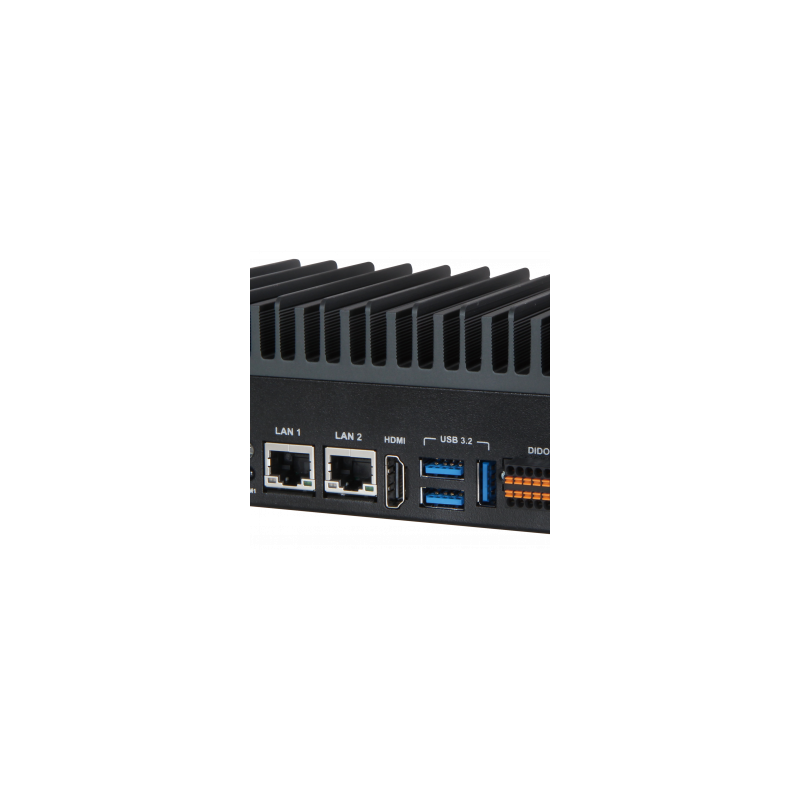

Fanless GPU PC with NVIDIA Jetson Orin Module - Up to 100 TOPS, 4GB/8GB LPDDR5, Multiple Expansion Slots and Ports

Supports NVIDIA® Jetson AGX Orin™

1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores

Supports 2 x GbE

Supports 8 GMSL cameras (Can be specially ordered with 4x PoE instead)

2 x RS-232/422/485

5 x USB

16 isolated DI/O (special request, not standard)

2 x isolated CAN Bus

HDMI 2.1, up to 8K@60 Hz

Operating temperature -25°C ~ +70°C (TDP: 30W)

DC 9~48V wide range power input and ignition power control

Powered by NVIDIA® Orin™ NX or Orin™ Nano SoM with JetPack
IP66 waterproof and dustproof
6x GMSL2 car cameras via FAKRA Z connector (requires camera manufacturers to have dedicated drivers)
(We can offer GMSL camera with driver support)
1x CAN FD
1x RS232 via M12 A-coded connectors
-25°C to 70°C fanless operation (no throttling at 70°C with 20W TDP mode)
225 x 136 x 55 mm low profile design
8V to 35V wide range DC input with built-in ignition current control

Powered by NVIDIA® Orin™ NX or Orin™ Nano SoM bundled with JetPack
IP66 waterproof and dustproof
4x PoE+ GbE via M12 X-coded connectors
1x CAN FD
1x RS232 via M12 A-coded connectors
-25°C to 70°C fanless operation (No throttling at 70°C with 20W TDP Mode)
225 x 136 x 55 mm low-profile design
8V to 35V wide-range DC input with built-in ignition power control

IP67-rated design, specifically for outdoor environments
NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
High AI computing performance for GPU accelerated processing
8GB RAM
1 x C3 USB 2.0
1 x M12 Ethernet
1 x C3 HDMI
4 N-jack antenna openings with water-proof design
Features M12 lockable I/Os
1 IEEE 802.3at GbE PoE (30W)
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
OS support Linux Ubuntu 18.04

8//6-core Cortex A78AE v8.2 64-bit Arm CPU

8GB/16GB LPDDR5

1x M.2 2280 M-Key NVMe

Supports 1x M.2 2230 E-Key, 1x M.2 3042/3052 B-Key

2x Nano SIM slots

4x RJ45 GbE or 4x M12 PoE (optional configuration)

3x USB 3.2 Type-A ports

2x USB 2.0 Type-A, 1x USB 2.0 Type-C, 1x USB 2.0 Micro-USB

2x DB9 COM ports (RS-232/422/485) and 1x DB9 CANbus

HDMI output with max. resolution 3840x2160@60Hz

Operating temperature -20°C to 60°C

Dimensions: 277 x 180 x 62 mm

Weight: 3.5 kg

Wall mounting ready

DC IN 12V–24V via 3-pin terminal block

NVIDIA® Jetson Orin™ Nano with up to 1024 CUDA cores

8-core Arm® CPU and 4GB/8GB LPDDR5 RAM

1× GbE LAN and 2× USB 3.2 + USB-C

HDMI 2.0 with 4K output

Integrated 128GB NVMe SSD (M.2 2280)

Supports Wi-Fi module via M.2 E-key

9–24V DC input, low power consumption

Operation from -25°C to +50°C

Ideal for compact AI, IoT and vision solutions
