GPU Expansion box for IPC-GEN8/9-GPU with 2 x PCIe X16

2 x PCIE X16 Slots for full length GPU cards
1 x PCIE X4 Slot and 1 x PCIE X1 Slot for add-on cards
Intelligent cooling Design for high-performance GPU cards
Military Standard Shock Vibration Resistant

Call +45 56 66 20 20 for price
Quantity
Physically in stock
LÆG I KURV
Product number IPC-GEN8/9-GPU-2PCIE
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

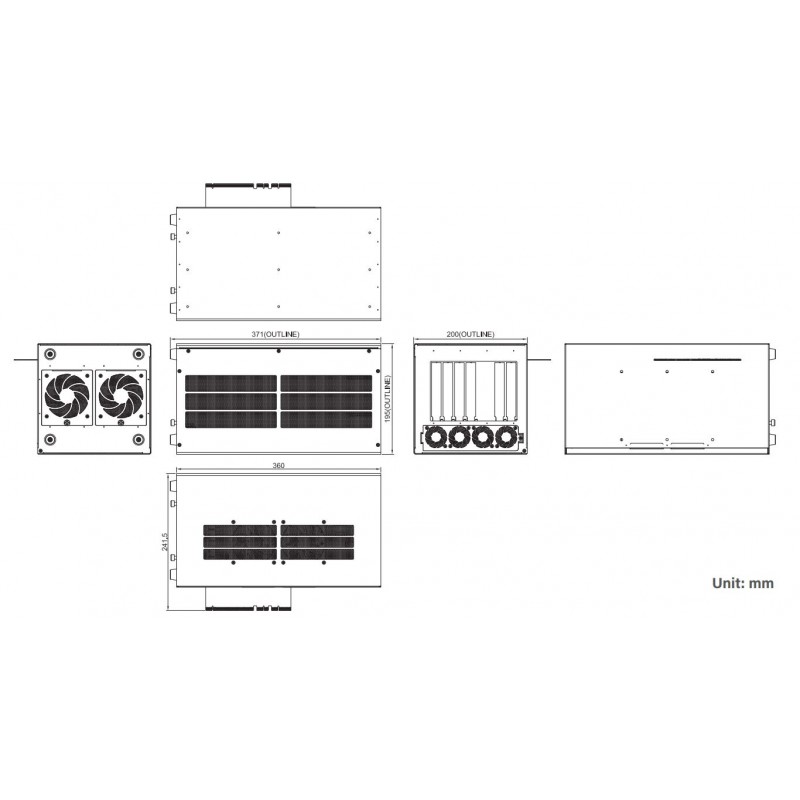

Andet Max Card Length: 328mm, Max Card Height: 64mm ( Standard Triple-Deck ), Max Card Width: 134mm

The IPC-GEN8/9-GPU-2PCIE is a selectable expansion box compatible with the IPC-GEN8/9-GPU. In addition to 2X PCIEX 16 (Signal PCIE X8) for GPU graphics card installation, the other has 1x PCIE X 4 and 1 x PCIE X 1 slots for extended functions such as high-speed I / O, data acquisition, Frame Grabber card and motion card. IPC-GEN8/9-GPU-2PCIE supports maximum dual 250W 328mm full length NVIDIA® / AMD® graphics card expansion.

Andre produkter i samme kategori:

Dual Head VGA KVM Switch - KVM switch - 4 ports - USB
Iot Embedded PC Fanless, Railway Approved, -40°C to 70°C RS232 / 422/485, USB, Triple Display Support, 9 ~ 48VDC

Embedded 8th Gen Intel® Core™ U i7/i5/i3 CPU (TDP 15W)
1x 2.5" front-accessible SATA HDD bay for quick access and 1x mSATA socket
2x full-size Mini PCIe sockets for module expansion
2x front-accessible SIM card slots for signal redundancy
Optional CMI modules (2x 10 GbE LAN, M12 A-coded, or M12 X-coded)
Optional CFM modules (power ignition sensing, or 4x PoE)
Wide operating temperature -40°C to 70°C
203 mm (W) x 142 mm (D) x 66.8 mm (H)
MIL-STD-810G, EMC CE, FCC, ICES-003 Class A, EN50155 (Only EN50121-3-2), E-mark Safety IEC/EN 62368-1
9~48VDC via 3-pin Terminal Block

Call +45 56 66 20 20 for price
Item Number: EPC-IXGEN8C-2E2C6U
On the way in
ADD TO CART
Quick view
10" High-Brightness Android Panel PC
10" Industrial Panel PC with Android, Capacitive Touch, 1000 nits High Brightness with Auto Dimming, 9~36VDC

10" Industrial Panel PC
OS: Android 10
Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
Resolution: 1280 x 800 (16:10)
Viewing angle: 170°/170°
Light sensor (automatic dimming)
10.1" IPS screen with 1000 nits brightness and capacitive touch
1 x RJ45 Gigabit Ethernet
4 x GPIO (2 inputs, 2 outputs)
3 x RS232 (via DB9 octopus cable)
1 x HDMI output
2 x USB-A host
1 x USB-C OTG
3.5mm audio output
Memory: 2GB LPDDR3 + 16GB eMMC, Option: 4GB + 64GB
Supply voltage: 9~36VDC (mains adapter not included)
Operating temperature: -10° ~ +60°C
Dimensions: 249 × 166 × 32mm
Weight: 980g

$717.36
Item Number: IPP10A
On the way in
ADD TO CART
Quick view
GPU industrial AI I7,I9 of Intel and Nvidia/AMD GPU support GP-3000-R10
Powerful industrial GPU computer with Intel® Gen. 8/9 CPU I3 / I5 / I7 or Xeon CPU Support, 9~48VDC

Supports 9th/8th Gen Intel® Xeon®/Core ™ processor (35W/65W/80W)
Nvidia / AMD GPU Support up to 328mm
Intel Gen. 8/9, C246 Chipset
2 x DDR4 SO-DIMM, supports ECC/non ECC type up to 2666 MHz, 64GB
4 X 2.5" Hot Swappable SATA III HDD/SSD BAYS (MAX HEIGHT 15 mm)
1 x M.2 m Key operation (NVME), 1 x M.2 E key (CNVI)
VGA, HDMI, DP
6x USB, 1x UBS internal
2 x RS232/422/485
2 x Front Available SIM card slot for signal redundancy
Power 9~48Vdc, 220W
Dimensions 105x190x360mm (wxDxH)
Operating temperature -40°C to 70°C depending on CPU
9~48VDC via 3-pin Terminal Block
​Optional AC/DC or DC/DC 24V 480W Power Supply
Optional AC/DC or DC/DC 24V 1000W Power Supply

Call +45 56 66 20 20 for price
Item Number: IPC-GEN8/9-GPU
Physically in stock
ADD TO CART
Quick view
Industri PC med XP, Windows 2000 support med 3xISA SLOT og 4xPCI slot
Industrial 4 unit PC to XP, 2000 with 3x ISA and 4x PCI slot

Complete industril 4 unit PC to older OS
4GB RAM 120GB SSD
Celeron CPU
ATX format
Intel G41 Chipset
775 Socket two Core 2 Duo / Pentium / Celeron D / Pentium D
2 X DDR3 Slots
3 X ISA, 4 X PCI
1 x LPT, 6 X-COM to 8 X USB 2.0 to 4 X SATA, 1x IDE
2 x 1Gbit LAN Ports
1 X VGA
support Windows 2000 / XP / Vista / 7

Call +45 56 66 20 20 for price
Item Number: IPC-ISAPCIXP2000
On the way in
ADD TO CART
Quick view
Full IP67 vandtæt industrial IOT PC, Intel i3/i5/i7 or celeron - DANBIT
Waterproof fanless PC, Intel H61 i3/i5/i7/Celeron Full IP67

Fanless
Support Intel® i3/i5/i7/Celeron Processor
Intel® H61 Chipset
1 x VGA
2 x  USB 1.0
1 x RS232
IP67 Fanless operation design
RAM Max. up to 16 GB
One 2.5" SATA HDD drive bay
Option (WiFi / 3G / Bluetooth Optional)
OS Support Windows XP, 7, CE6.0, Linux

Call +45 56 66 20 20 for price
Item Number: EPC-BC10-IP67
On the way in
ADD TO CART
Quick view
Powerful Industrial GPU Computer with Medical Approval
Industrial GPU Computer with Medical Approval, Gen 9 i7 CPU

Core i7-9700E 2.6Ghz
16GB Ram (optional up to 64GB)
DP x 1, VGA x 1, HDMI x 2
1x PCIe 16x to GPU 250W max
2x COM,2x LAN, 10x USB
Windows® 10 , Linux

Call +45 56 66 20 20 for price
Item Number: IPC-GEN9-MEDIC
On the way in
ADD TO CART
Quick view
Surplus: Inddusti PC m/HDD+RAM uden OSforSurplus / DEMO PRODUCTS
Surplus: Inddusti PC m/HDD+RAM uden OS

Med +5V- og +12V spænding på seriel portene til POS udstyr

$1,057.74
Item Number: IPC-FANLESS+
Physically in stock
ADD TO CART
Quick view

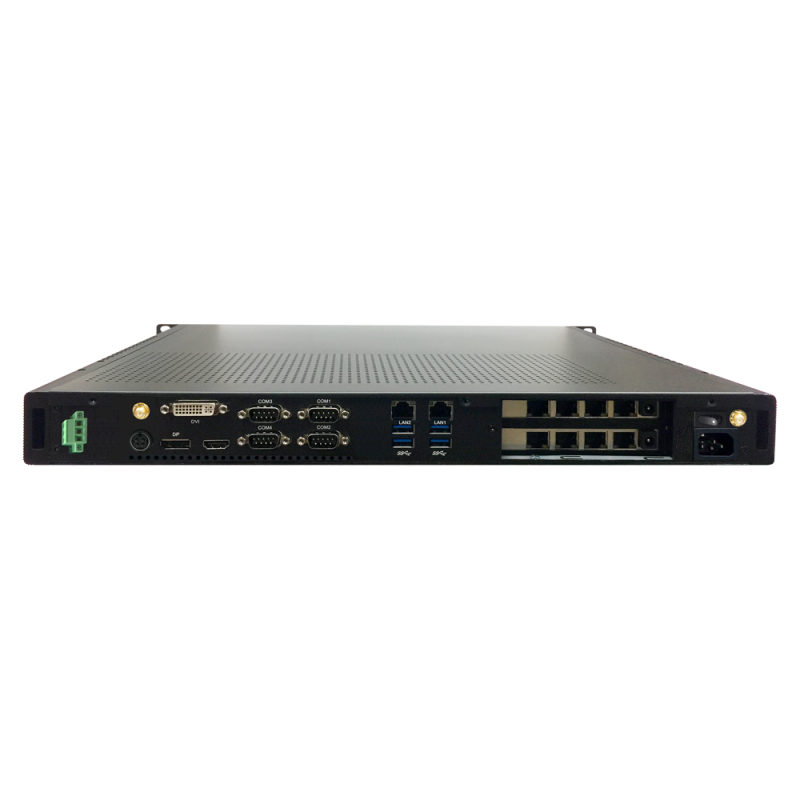

1 Unit server til 19\" Rack montage med 2 x PCIes udvidelse, 3xCOMf...
1 UNIT server to 19 "Rack mounting with 2 x PCIEX (X8) Expansion, SIM, 4xRS232 / 422/485, 4xusb

6th / 7th Gen Intel® skylake-s / kaby lake-s i7 / i3 CPU
Intel® Q170 Express chipset
2 x DDR4 Sodimol socket, max. 64GB
Multiple Independent Display: DP, HDMI DVI
2 x Intel GBE LAN
4 x USB 3.0
4 x COM
2 x PCIE X 8 (Option: 1xPCI, 1xPCIex)
2 x Mini PCIE
1 x M.2
2 x SIM
1u Rackmount Server Design

$2,418.09
Item Number: IPC-1U
On the way in
ADD TO CART
Quick view
