Model 0: No PCI/PCIe expansion

Model 1: 1 x PCI/PCIe slot

Model 2: 2 x PCI/PCIe slots - supports GPU cards up to 130W

CPU: Intel® Core™ i9/i7/i5/i3 (14th/13th/12th generation, LGA1700, max. 65W TDP)

RAM 2x DDR5 SO-DIMM, ECC/non-ECC, up to 5600 MHz, max. 64 GB

2x 2.5" SATA

3x mSATA sockets

1x M.2 Key M for NVMe SSD

2x GbE LAN (upgradable to 2x 10 GbE LAN upon order)

Up to 2x PCI/PCIe slots

1x M.2 + 2x Full-size Mini PCIe

Support for CMI and CFM modules (including for I/O expansion, ignition control, and PoE+)

2x DisplayPort

1x VGA

Up to 8x USB (USB 3.2 Gen2 and USB 2.0)

4x COM (RS-232/422/485)

9–48 VDC input, with ignition control

Operating temperature: -40 °C to 70 °C

Certifications: Military: MIL-STD-810G, Transportation: EN50155 (EN 50121-3-2), Safety: UL, cUL, CB, IEC/EN 62368-1

Supports Intel® OpenVINO™

Intel® ESDQ Certified: Edge Insights for AMR Software Stack

The system is assembled according to your needs. Contact us for advice and pricing.

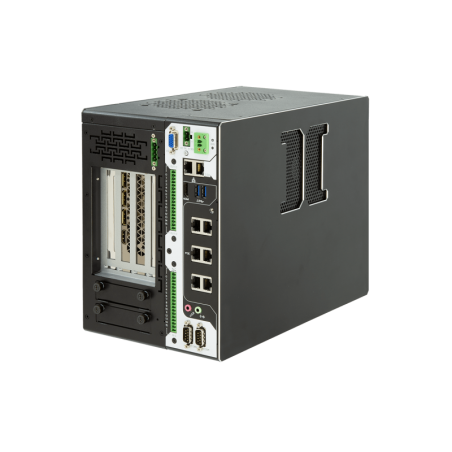

Industry AI computing platform
Supports NVIDIA RTX 3070 or dual Tesla T4 GPUs
Supports 10th Gen Intel® Xeon®/Core ™ processor
Intel Gen. W480E Chipset
2 x DDR4 SO-DIMM, supports ECC/non ECC type up to 2666 MHz, 64GB
2x USB 3.2 Gen2, 1x internal usb dongle.
2 x RJ-45 ports for GbE/2.5GbE
6 x RJ-45 ports for PoE (60W)
DC power input: 12 - 36V
Dimensions: 181 x 320 x 250 mm
Weight: 7.4 kg (16.31 lb)

9"

Resistive Capacitive ARM/NXP i.MX8MMini 1.6GHz

1GB 2GB 4GB

RS-232 RS-485

USB

GLAN

Mini PCIe

eMMC

microSD

CPU Xeon, i9,i7,i5,i3 Gen.10
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI 4096x2160 at 30Hz
2x DisplayPort 4096x2304@60Hz (according to CPU specifications)
1 x VGA
3 x full-size Mini-PCIe connectors
2 x SIM slots
4 x CMI interface: different I/O moduls see picture
1 x CFM IGN Interface need to be ordere separately
2 x PCI/PCIe slots
Vibration/Shock MIL-STD-810G
CE, UKCA, FCC, ICES-003 Class A, EN50121-3-2 (Rail), IEC/EN 62368-1
REQUEST about additional information with details

IP67 waterproof GPU computer with NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Patented waterproof 2U 19" chassis for rack or wall-mount*
Guaranteed non-throttling GPU performance up to 62°C ambient
Up to eight 802.3at Gigabit PoE+ ports via M12 X-coded connectors
VGA, USB 2.0 and COM ports via M12 A-coded connectors
8~48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 certified
*R.O.C Patent No. I697759, *CN Patent Pending

IP67-rated design, specifically for outdoor environments
NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
High AI computing performance for GPU accelerated processing
8GB RAM
1 x C3 USB 2.0
1 x M12 Ethernet
1 x C3 HDMI
4 N-jack antenna openings with water-proof design
Features M12 lockable I/Os
1 IEEE 802.3at GbE PoE (30W)
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
OS support Linux Ubuntu 18.04

Supports Intel® 14th/13th/12th Generation Alder Lake Core™ CPU (LGA1700, 35/65W TDP)

Intel® Q670E chipset, integrated Intel® UHD Graphics 770

Max. 64 GB DDR5 4800 MHz SDRAM (2 x SO-DIMM)

Up to 6 x 2.5 GbE/GbE LAN with screw lock (must be ordered separately. 1 x 2.5 GbE + 1 x GbE on 2-port models / 5 x 2.5 GbE + 1 x GbE on 6-port models)

Can be ordered IEEE 802.3at PoE+ PSE on 2.5GbE port 3-6, total PoE budget 100 W

1 x USB 3.2 Gen2x2 (20 Gbps) Type-C with screw lock

4 x USB 3.2 Gen2x1 (10 Gbps) type-A + 2 x USB 3.2 Gen1x1 (5 Gbps) type-A

2 x USB 2.0 ports

1 x VGA, 1 x DVI-D, 1 x DisplayPort (up to 4K resolution)

COM: 2 x RS-232/422/485 (COM1/COM2, software configurable) + 2 x RS-232 (COM3/COM4)

2 x internal SATA ports for 2.5" HDD/SSD (RAID 0/1 on E/P/DE models) or 1 x hot-swap 2.5" SSD/HDD + 1 x internal SATA (LP models)

1 x M.2 2280 (PCIe Gen4 x4) for NVMe SSD (up to ~7000 MB/s)

Patented cassette for expansion with PCIe/PCI cards:

Version 1: 1 x PCIe x16 Gen3

Version 2: 2 x PCIe x16 Gen3

Version 3: 1 x PCI slot

1 x mini PCIe (full size)

1 x M.2 2242/3052 B with nano-SIM for 4G/5G modem

1 x expandable (extra COM, digital I/O, more GigE/PoE, USB, etc.)

8–48 V DC input via 3-pin terminal block

Remote on/watchdog/LED output via separate 3-pin terminal block

Fanless, industrial design – tested to MIL-STD-810G for vibration and shock

Operating temperature (depending on CPU configuration):

-25 ~ 70 °C with 35 W CPU

-25 ~ 50 °C with 65 W CPU (full TDP)

Wall mounting as standard, DIN rail mounting as an option

Certification: CE/FCC Class A

Many versions, contact our sales department

Intel® 12/13/14 th-Gen Core™ 35W/ 65W LGA1700 CPU up to 16 cores/ 24 threads

4x GbE

4x USB3.2 Gen 1 with screw-lock

1x hot-swappable HDD tray

1x M.2 2280 Gen4 x4 NVMe

RAM non-ECC DDR4 3200 SDRAM (one SODIMM slot) MAX. 32GB

2x full-size mPCIe sockets

4-CH isolated DI and 4-CH isolated DO

VGA + DP

TPM 2.0 Support

Rugged, -25°C to 60°C fanless operation

212 x 165 x 63 mm low-profile design

1x 3-pin pluggable terminal block for 8-48V DC input with optional ignition power contro

Industrial Fanless Celeron, i3/i5,i7 CPU support (LGA 1151)
Gen. 8/9
Chipset Q370
1x RS232/422/485. OPTIONAL! ISOLATED RS232/422/485, Must be ordered separately!
4 USB 3.1 Gen. 2
2 x USB2.0
1 x USB (internal, 180D type A for License Key, up to 30mm)
2 x ETH Intel i211-AT & i219-LM (Option! more can be ordered)
VGA, HDMI output
19~30Vdc
OPTION: wall mount or DIN mount
83.4x192x230mm (WxHxD)
Working temperature -10°C to +60°C, NOTE REQUIRES RAM AND SSD also specified for -10°C to +60°C Order separately!
OS support Windows 10 and Linix

Industrial Fanless Celeron, i3/i5,i7 CPU support (LGA 1151)
Gen. 8/9
1x RS232/422/485. OPTIONAL! ISOLATED RS232/422/485, Must be ordered separately!
4 USB 3.1 Gen. 1
2 x USB2.0
1 x USB (internal, 180D type A for License Key, up to 30mm)
2 x ETH Intel i211-AT & i219-LM (Option! more can be ordered)
VGA, HDMI output
19~30Vdc
OPTION: wall mount or DIN mount
83.4x192x230mm (WxHxD)
Working temperature -10°C to +60°C, NOTE REQUIRES RAM AND SSD also specified for -10°C to +60°C Order separately!
OS support Windows 10 and Linix

10" Industrial Panel PC
OS: Android 10
Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
Resolution: 1280 x 800 (16:10)
Viewing angle: 170°/170°
Light sensor (automatic dimming)
10.1" IPS screen with 1000 nits brightness and capacitive touch
1 x RJ45 Gigabit Ethernet
4 x GPIO (2 inputs, 2 outputs)
3 x RS232 (via DB9 octopus cable)
1 x HDMI output
2 x USB-A host
1 x USB-C OTG
3.5mm audio output
Memory: 2GB LPDDR3 + 16GB eMMC, Option: 4GB + 64GB
Supply voltage: 9~36VDC (mains adapter not included)
Operating temperature: -10° ~ +60°C
Dimensions: 249 × 166 × 32mm
Weight: 980g

Core i7-9700E 2.6Ghz
16GB Ram (optional up to 64GB)
DP x 1, VGA x 1, HDMI x 2
1x PCIe 16x to GPU 250W max
2x COM,2x LAN, 10x USB
Windows® 10 , Linux

Intel Atom D510 1.66GHz

2GB RAM onboard

2x ethernet

254x59x152mm

6x USB 2.0 (not all cabled out)

8x RS232 (not all cabled out)

Input Voltage DC: 9 ... 36 V, 16 W

OS Support: Windows CE 6.0, Windows XP, Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 2009, Linux OS, QNX, WIN10 iot

2 x PCIE X16 Slots for full length GPU cards
1 x PCIE X4 Slot and 1 x PCIE X1 Slot for add-on cards
Intelligent cooling Design for high-performance GPU cards
Military Standard Shock Vibration Resistant

Supports 9th/8th Gen Intel® Xeon®/Core ™ processor (35W/65W/80W)
Nvidia / AMD GPU Support up to 328mm
Intel Gen. 8/9, C246 Chipset
2 x DDR4 SO-DIMM, supports ECC/non ECC type up to 2666 MHz, 64GB
4 X 2.5" Hot Swappable SATA III HDD/SSD BAYS (MAX HEIGHT 15 mm)
1 x M.2 m Key operation (NVME), 1 x M.2 E key (CNVI)
VGA, HDMI, DP
6x USB, 1x UBS internal
2 x RS232/422/485
2 x Front Available SIM card slot for signal redundancy
Power 9~48Vdc, 220W
Dimensions 105x190x360mm (wxDxH)
Operating temperature -40°C to 70°C depending on CPU
9~48VDC via 3-pin Terminal Block
​Optional AC/DC or DC/DC 24V 480W Power Supply
Optional AC/DC or DC/DC 24V 1000W Power Supply

Complete industril 4 unit PC to older OS
4GB RAM 120GB SSD
Celeron CPU
ATX format
Intel G41 Chipset
775 Socket two Core 2 Duo / Pentium / Celeron D / Pentium D
2 X DDR3 Slots
3 X ISA, 4 X PCI
1 x LPT, 6 X-COM to 8 X USB 2.0 to 4 X SATA, 1x IDE
2 x 1Gbit LAN Ports
1 X VGA
support Windows 2000 / XP / Vista / 7

EN 50155 certificate (Railway) and E-brand Embedded PC
Supports Intel® 8th / 9th Gen Core ™ I7 / I5 / I3 LGA1151 Socket-type CPU
Up to 64 GB DDR4 2666/2400 SDRAM (Two Sodimm slots)
4 x 802.3at Gigabit PoE + ports Via RJ45 connector (must be specified by order)
Isolated CAN bus for vehicle communication
4 CH isolated di and 4-CH isolated do
2 x SATA ports with a hot-swapbar HDD hill supports RAID 0/1
2 x M.2 Slot
3 x Mini PCIe in full size
8 ~ 35VDC input, ignition control

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x 802.3at Gigabit PoE + ports via RJ45 connectors
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE + ports via M12 or RJ45 connectors (To be specified when ordering)
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control

Fanless
Support Intel® i3/i5/i7/Celeron Processor
Intel® H61 Chipset
1 x VGA
2 x  USB 1.0
1 x RS232
IP67 Fanless operation design
RAM Max. up to 16 GB
One 2.5" SATA HDD drive bay
Option (WiFi / 3G / Bluetooth Optional)
OS Support Windows XP, 7, CE6.0, Linux
