Industrial grade PC's

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x 802.3at Gigabit PoE + ports via RJ45 connectors
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control

EN 50155 certificate (Railway) and E-brand Embedded PC
Supports Intel® 8th / 9th Gen Core ™ I7 / I5 / I3 LGA1151 Socket-type CPU
Up to 64 GB DDR4 2666/2400 SDRAM (Two Sodimm slots)
4 x 802.3at Gigabit PoE + ports Via RJ45 connector (must be specified by order)
Isolated CAN bus for vehicle communication
4 CH isolated di and 4-CH isolated do
2 x SATA ports with a hot-swapbar HDD hill supports RAID 0/1
2 x M.2 Slot
3 x Mini PCIe in full size
8 ~ 35VDC input, ignition control

Complete industril 4 unit PC to older OS
4GB RAM 120GB SSD
Celeron CPU
ATX format
Intel G41 Chipset
775 Socket two Core 2 Duo / Pentium / Celeron D / Pentium D
2 X DDR3 Slots
3 X ISA, 4 X PCI
1 x LPT, 6 X-COM to 8 X USB 2.0 to 4 X SATA, 1x IDE
2 x 1Gbit LAN Ports
1 X VGA
support Windows 2000 / XP / Vista / 7

Supports 9th/8th Gen Intel® Xeon®/Core ™ processor (35W/65W/80W)
Nvidia / AMD GPU Support up to 328mm
Intel Gen. 8/9, C246 Chipset
2 x DDR4 SO-DIMM, supports ECC/non ECC type up to 2666 MHz, 64GB
4 X 2.5" Hot Swappable SATA III HDD/SSD BAYS (MAX HEIGHT 15 mm)
1 x M.2 m Key operation (NVME), 1 x M.2 E key (CNVI)
VGA, HDMI, DP
6x USB, 1x UBS internal
2 x RS232/422/485
2 x Front Available SIM card slot for signal redundancy
Power 9~48Vdc, 220W
Dimensions 105x190x360mm (wxDxH)
Operating temperature -40°C to 70°C depending on CPU
9~48VDC via 3-pin Terminal Block
​Optional AC/DC or DC/DC 24V 480W Power Supply
Optional AC/DC or DC/DC 24V 1000W Power Supply

2 x PCIE X16 Slots for full length GPU cards
1 x PCIE X4 Slot and 1 x PCIE X1 Slot for add-on cards
Intelligent cooling Design for high-performance GPU cards
Military Standard Shock Vibration Resistant

Supports 9/8th Gen Intel® Xeon® and Core™ Octa/Hexa-core CPU
1x HDMI /1x DP /1x DVI-I (4K/2K UHD Resolution)
2x 2.5" Hot Swap SATA HDD/SSD Tray, 3x mSATA Socket
2x USB 3.1 (Type-A), 6x USB 3.0(Type-A)
1x M.2 E Key Socket (CNVi), 3x Full-size Mini-PCIe Socket, 1x SIM Card Socket
2x RJ45 GbE LAN Intel® I219-LM and Intel® I210
Wide Operating Temperature -40°C to 70°C
E-Mark: E13 No.10R-0515210), LVD EN62368-1, EN50121-3-2
9~48VDC via 3-pin Terminal Block

Supports 9/8. Gen Intel® Core / Pentium® / Celeron® 8 Core 35W / 65W LGA 1151 CPUs
2x DDR4 SO-DIMM, supports up to 2666MHz, max 64GB
1x DVI-I and 2X DP (4K resolution)
1x M.2 2280 M Key Socket, auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
2x Front available SIM slot
2X PCIe slots (standard) / 2X PCI (option) for add-on cards (maximum length: 235 mm)
Operating temperature -40 ° C to 70 ° C
EN50121-3-2 Certified / LVD EN62368-1
9 ~ 48VDC via 3-pin Terminal Block

Intel® Core ™ I5-7300U 2.6 GHz / i3-7100U 2.4 GHz Celeron® 3965U 2.2 GHz
2x Com
2x GBE LAN
4x USB 3.0
One Swappable 2.5 "HDD Drive Bay
2 HDMI med dual-view støttet
Ultra-kompakt kabinet design
12VDC
-10 ° C til + 50 ° C

Supports NVIDIA RTX 30 Series GPU card
1 x PCIE X16 slot for full length GPU card. Max 328mm
1 x PCie X4 Slot
2 x 8-pin GPU power plug. Max 350W
1 x USB-A 2.0
Intelligent cooling Design for high performance GPU card
Military Standard shock Vibration-proof

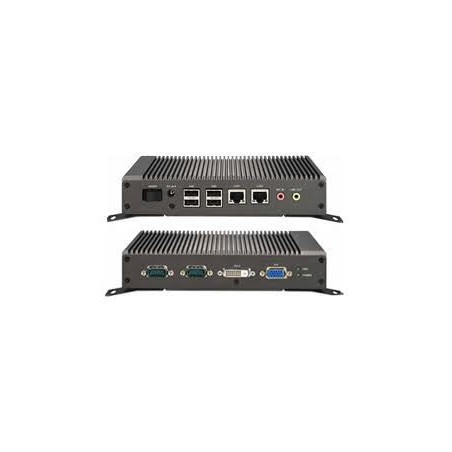

Intel Atom D510 1.66GHz
2GB RAM onboard
2x ethernet
254x59x152mm
6x USB 2.0 (not all cabled out)
8x RS232 (not all cabled out)

Input Voltage DC: 9 ... 36 V, 16 W
OS Support:  Windows CE 6.0, Windows XP, Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 2009, Linux OS, QNX, WIN10 iot

Core i7-9700E 2.6Ghz
16GB Ram (optional up to 64GB)
DP x 1, VGA x 1, HDMI x 2
1x PCIe 16x to GPU 250W max
2x COM,2x LAN, 10x USB
Windows® 10 , Linux

10" Industrial Panel PC
OS: Android 10
Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
Resolution: 1280 x 800 (16:10)
Viewing angle: 170°/170°
Light sensor (automatic dimming)
10.1" IPS screen with 1000 nits brightness and capacitive touch
1 x RJ45 Gigabit Ethernet
4 x GPIO (2 inputs, 2 outputs)
3 x RS232 (via DB9 octopus cable)
1 x HDMI output
2 x USB-A host
1 x USB-C OTG
3.5mm audio output
Memory: 2GB LPDDR3 + 16GB eMMC, Option: 4GB + 64GB
Supply voltage: 9~36VDC (mains adapter not included)
Operating temperature: -10° ~ +60°C
Dimensions: 249 × 166 × 32mm
Weight: 980g

Industrial Fanless Celeron, i3/i5,i7 CPU support (LGA 1151)
Gen. 8/9
1x RS232/422/485. OPTIONAL! ISOLATED RS232/422/485, Must be ordered separately!
4 USB 3.1 Gen. 1
2 x USB2.0
1 x USB (internal, 180D type A for License Key, up to 30mm)
2 x ETH Intel i211-AT & i219-LM (Option! more can be ordered)
VGA, HDMI output
19~30Vdc
OPTION: wall mount or DIN mount
83.4x192x230mm (WxHxD)
Working temperature -10°C to +60°C, NOTE REQUIRES RAM AND SSD also specified for -10°C to +60°C Order separately!
OS support Windows 10 and Linix

Industrial Fanless Celeron, i3/i5,i7 CPU support (LGA 1151)
Gen. 8/9
Chipset Q370
1x RS232/422/485. OPTIONAL! ISOLATED RS232/422/485, Must be ordered separately!
4 USB 3.1 Gen. 2
2 x USB2.0
1 x USB (internal, 180D type A for License Key, up to 30mm)
2 x ETH Intel i211-AT & i219-LM (Option! more can be ordered)
VGA, HDMI output
19~30Vdc
OPTION: wall mount or DIN mount
83.4x192x230mm (WxHxD)
Working temperature -10°C to +60°C, NOTE REQUIRES RAM AND SSD also specified for -10°C to +60°C Order separately!
OS support Windows 10 and Linix

Intel® 12/13 th-Gen Core™ 35W/ 65W LGA1700 CPU up to 16 cores/ 24 threads
4x GbE and 4x USB3.2 Gen 1 with screw-lock
1x hot-swappable HDD tray
1x M.2 2280 Gen4 x4 NVMe
2x full-size mPCIe sockets
4-CH isolated DI and 4-CH isolated DO
VGA + DP
TPM Support
Rugged, -25°C to 60°C fanless operation
212 x 165 x 63 mm low-profile design
1x 3-pin pluggable terminal block for 8-48V DC input with optional ignition power contro

Supports Intel® 12th Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Patented cassette for PCI/PCIe add-on cards
2 x DDR5 4800 SO-DIMM slot (up to 64 GB RAM)
Robust, -25°C to 70°C fanless operation
Up to 5x 2.5 GbE and 1x GigE ports with optional PoE+ supporting 9.5 KB jumbo frame
1 x USB 3.2 Gen 2x2 Type-C and 6 x USB 3.2 Gen 2x1 Type-A ports
Supports M.2 Gen4 x4 NVMe and 2x SATA ports
Extension interface for easy feature extension
VGA/DVI/DP triple independent display that supports 4K2K resolution
Lots of versions, contact our sales department

IP67-rated design, specifically for outdoor environments
NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
High AI computing performance for GPU accelerated processing
8GB RAM
1 x C3 USB 2.0
1 x M12 Ethernet
1 x C3 HDMI
4 N-jack antenna openings with water-proof design
Features M12 lockable I/Os
1 IEEE 802.3at GbE PoE (30W)
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
OS support Linux Ubuntu 18.04

IP67 waterproof GPU computer with NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Patented waterproof 2U 19" chassis for rack or wall-mount*
Guaranteed non-throttling GPU performance up to 62°C ambient
Up to eight 802.3at Gigabit PoE+ ports via M12 X-coded connectors
VGA, USB 2.0 and COM ports via M12 A-coded connectors
8~48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 certified
*R.O.C Patent No. I697759, *CN Patent Pending

CPU Xeon, i9,i7,i5,i3 Gen.10
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI 4096x2160 at 30Hz
2x DisplayPort 4096x2304@60Hz (according to CPU specifications)
1 x VGA
3 x full-size Mini-PCIe connectors
2 x SIM slots
4 x CMI interface: different I/O moduls see picture
1 x CFM IGN Interface need to be ordere separately
2 x PCI/PCIe slots
Vibration/Shock MIL-STD-810G
CE, UKCA, FCC, ICES-003 Class A, EN50121-3-2 (Rail), IEC/EN 62368-1
REQUEST about additional information with details

9"

Resistive Capacitive ARM/NXP i.MX8MMini 1.6GHz

1GB 2GB 4GB

RS-232 RS-485

USB

GLAN

Mini PCIe

eMMC

microSD
