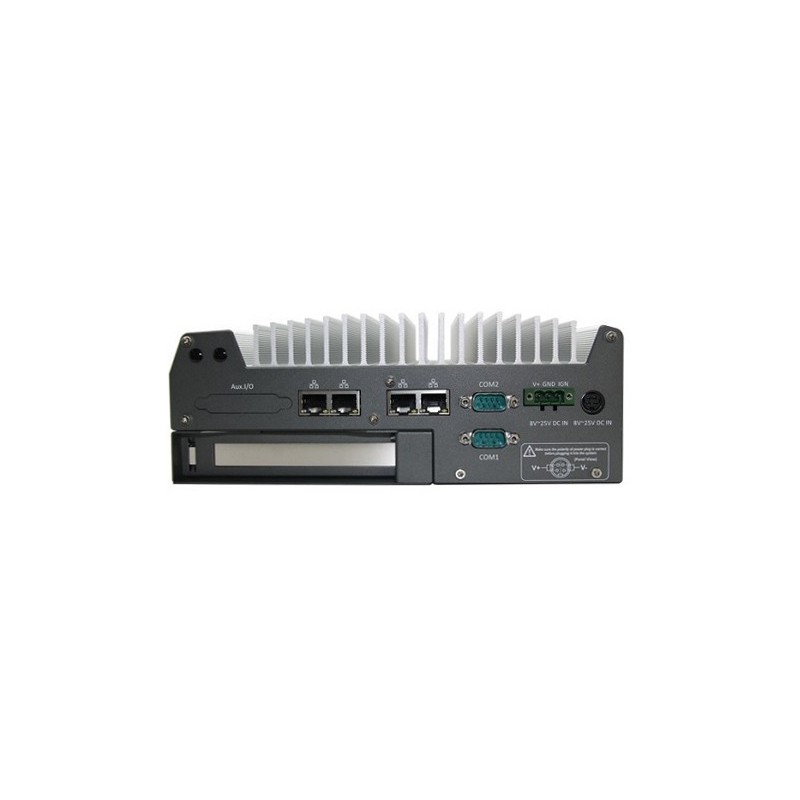

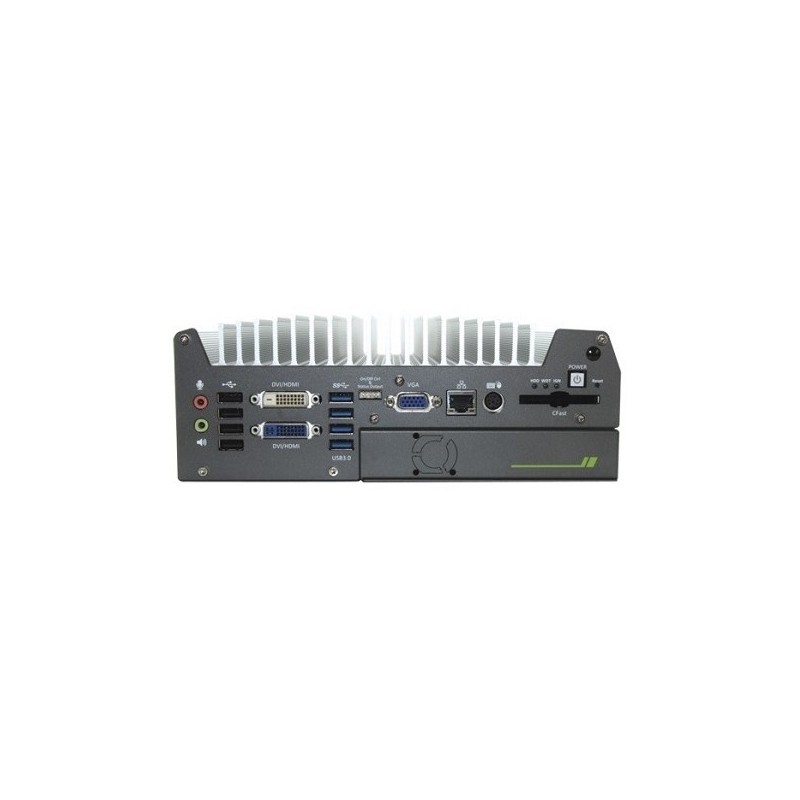

Industri PC 5 x Gigabit netværk

Fuldt bestykket industri PC, 5 x gigabit netværk, u/OS.

IPC-GIGA5
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Embedded blæserløs PC.

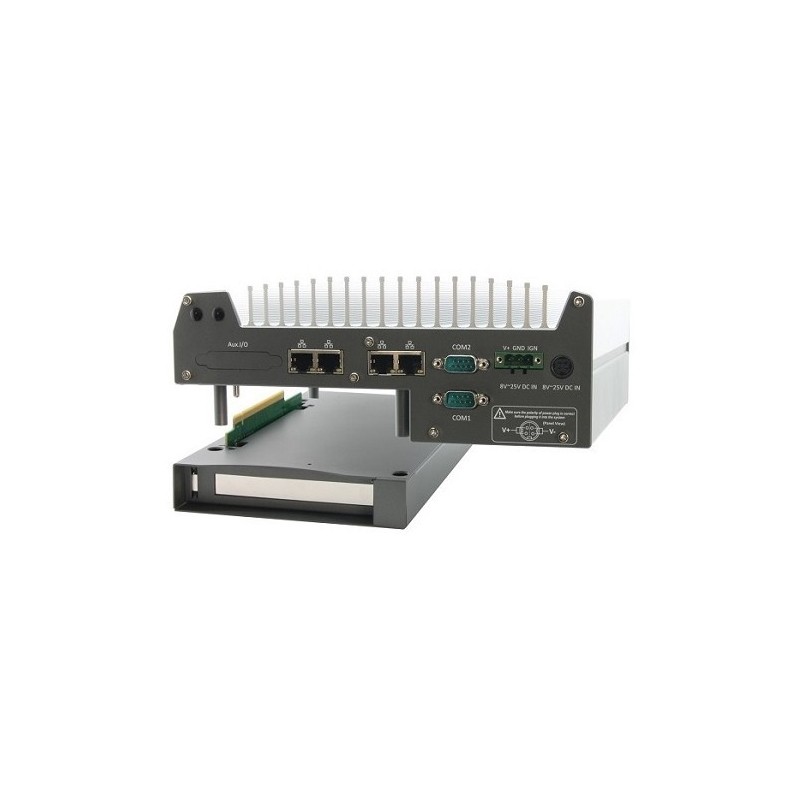

Med 5 x Gigabit netværk samt aftagelig kassette til harddisk/SSD.

CPU
Intel Core i7-3610QE (2.3/3.3 GHz, 6 MB cache). Intel Core i5-3610ME (2.7/3.3 GHz, 3 MB cache). Intel Celeron 1020E (2.2 GHZ, 2 MB cache)
Digital I/O
8 x isolerede digitale indgange med COS. 8 x Isolerede digitale udgangs kanaler
Dimensioner
88 x 240 x 225 mm (H x B x D)
Drev
1 x PCI i cassette (P). 1 x PCIe x 16 slot, 8 spor i cassette (E/SE)
Drev
1 x SATA til 2½” SSD/harddisk. 1 x CF sokkel
Driftstemperatur
-25°C - 60°C (kan udvides til -25°C - 70°C) (10-90% ikke-kondenserende)
Grafik
Intel® HD Grafik kontroller: Maks. 2 x video udgang. 1 x DB15HDF analog RGB, maks. opløsning 2048 x 1536. 2 x DVI-I for DP/HDMI/DVI. Opløsning: 2560 x 1600 (DP) eller 1920 x 1080 (HDMI/DVI)
Hukommelse
2 x 204 pin SO-DIMM sokkel. Maks. 16 GB DDR3 1333/1600 MHz SDRAM
Køling
Blæserfri
Ledige Slots
1 x mini PCI-Express med USIM sokkel. 1 x mini PCI-Express sokkel
Lyd
1 x mikrofon indgang. 1 x lyd udgang
Netværk
5 x RJ45, 10/100/1000 Mbit Ethernet (Intel I210)
Porte
2 x RS-232/422/485 (COM1 & COM2) Programmer bare via software
Strømforsyning
8 ~ 25 VDC. 1 x 4 pin for AC/DC indgang. 1 x 3 pin terminalblok til direkte DC tilslutning. 1 x 10-pin (2x5) wafer stik til remote on/off styring og status, LED udgang
Tastatur/mus
1 x 6 pin mini-DIN for mus og tastatur
USB
4 x USB 3.0. 4 x USB 2.0 (Hi-Speed)
