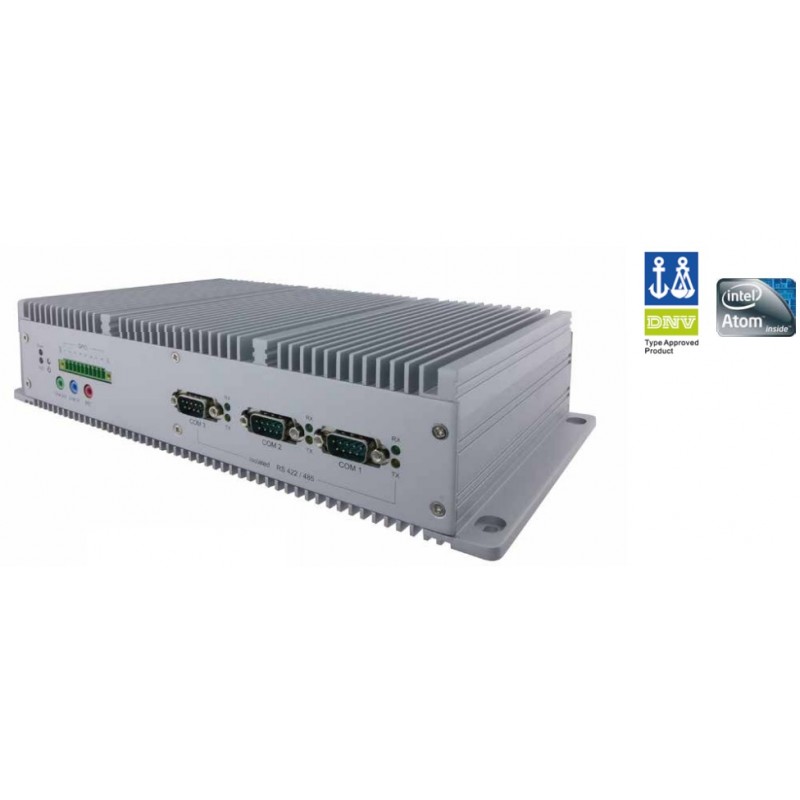

Embedded DNV Marine approved PC, 3 x RS422/485 Isolated, D2550 1.86GHz, 2 x Gbit

Design for Industrial Automation, M2M solutions

Onboard Atom Dual Core D2550 1.86 GHz processor

1 x DDR3 SODIMM, max. 4GB

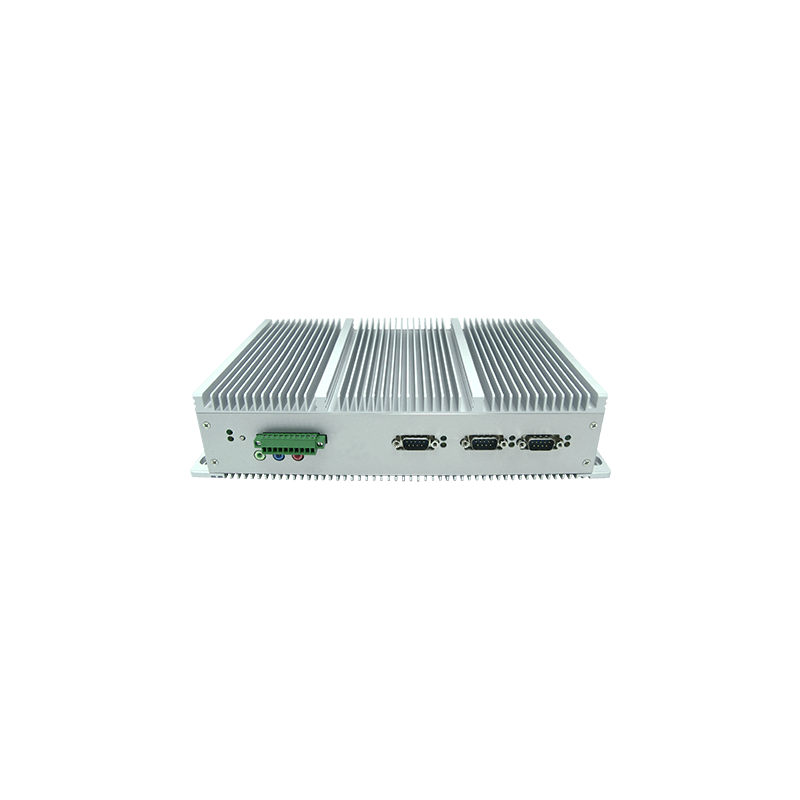

3 x RS422/485 communication with isolation protection

Support 8 GPIO of Phoenix type Terminal Block

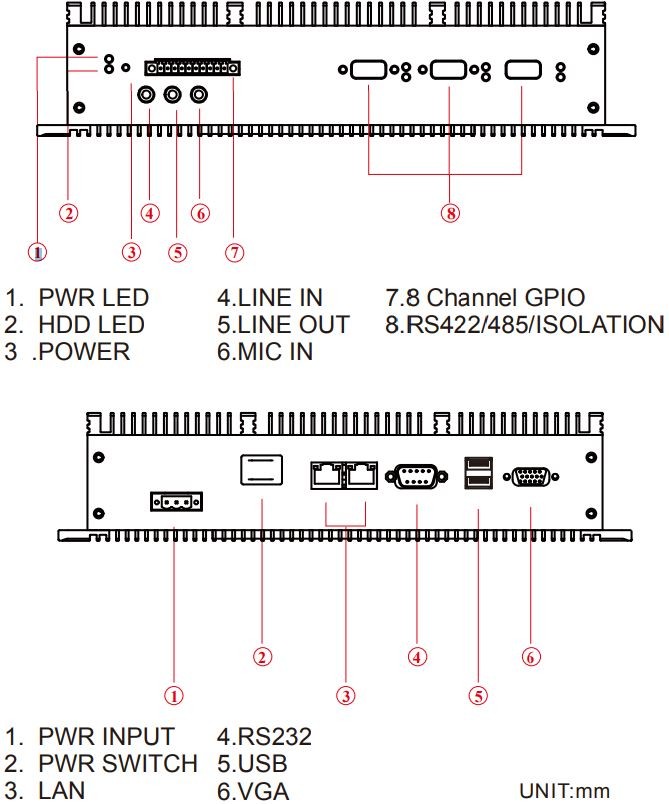

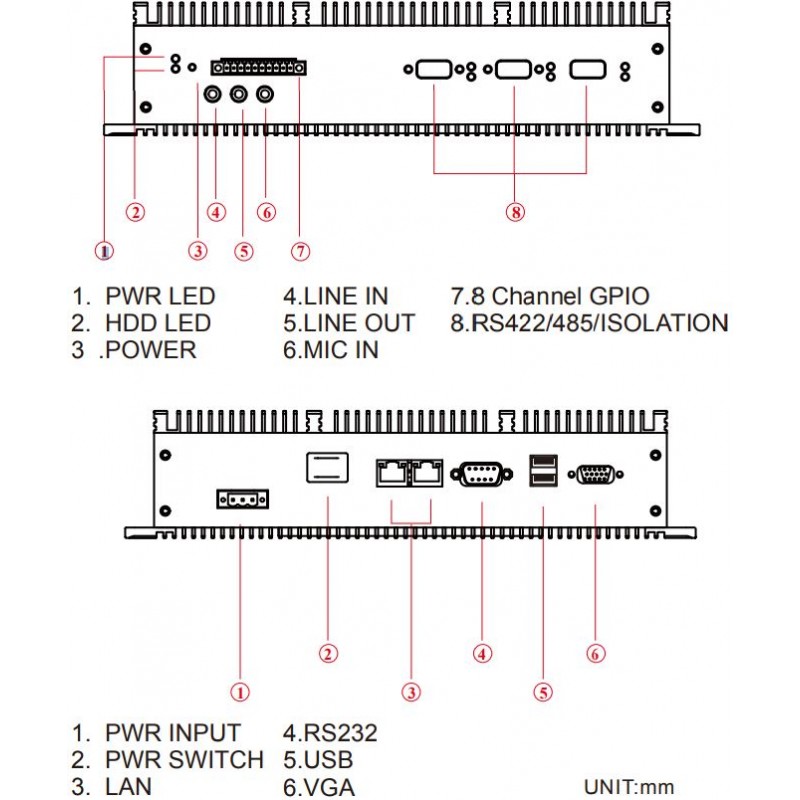

2x Giga LAN, 2x USB, 1x VGA, 1x Line in, Line out, Micro I

Fanless, High-efficiency thermal design weight/sealed construction

OS support: Windows7 32bit

1.5kV DC insulation resistance DNVGL-CG-0339, IEC 60945 4th Egdtion, CE/FCC

IPC-ATOM-D2550M
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

An example of what we can offer marine / DNV approved embedded PC. Other models and solutions offered. Contact the sales department for further information.

CPU
Intel® Atom Dual Core D2550 1.86 GHz
Chipset
Intel NM10
Approval
DNVGL-CG-0339, IEC 60945 4th Edition, CE / FCC
Chok/Vibration
Anti-Vibration 5Hz~500Hz /1Grms /3 Axis Anti Shock 15G, 11ms duration

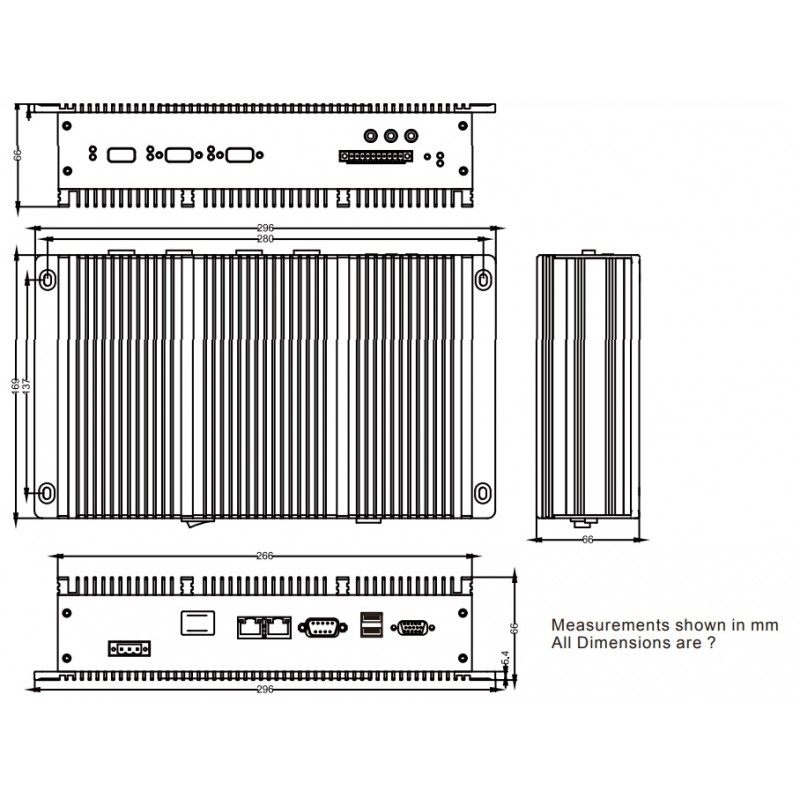

Dimensioner
(L x W) 296mm x 169mm x 66mm
Driftstemperatur
-15 to 55 deg.C
Ethernet
2 x RJ45 Broadcom BCM57780 GbE controller
Forsyning
+24Vdc in with 1.5KV DC isolation, Resistance (+9~36V DC input acceptable)
GPIO
8 x GPIO by Phoenix type Terminal Block
Grafik
Integrated in Intel NM10, LVDS/CRT
Hukommelse
1 x SODIMM, Max 4GB DDR3 800(2GB Default)
Luftfugtighed
5% to 95% (non condensing)
Lyd
1 x Micro in , Line out , Line in Jack
Compositions
Aluminum housing
Montering
default wall mount! Option VESA/Desktop
Msata
1 * 64 GB mSATA SSD
Porte
1 x RS232, 3 x Isolated RS422/485 auto-detected with Indicator
Udgange
VGA
USB
4 x USB 2.0 by pin-header(internal) ; 2 x USB 2.0 (external)
