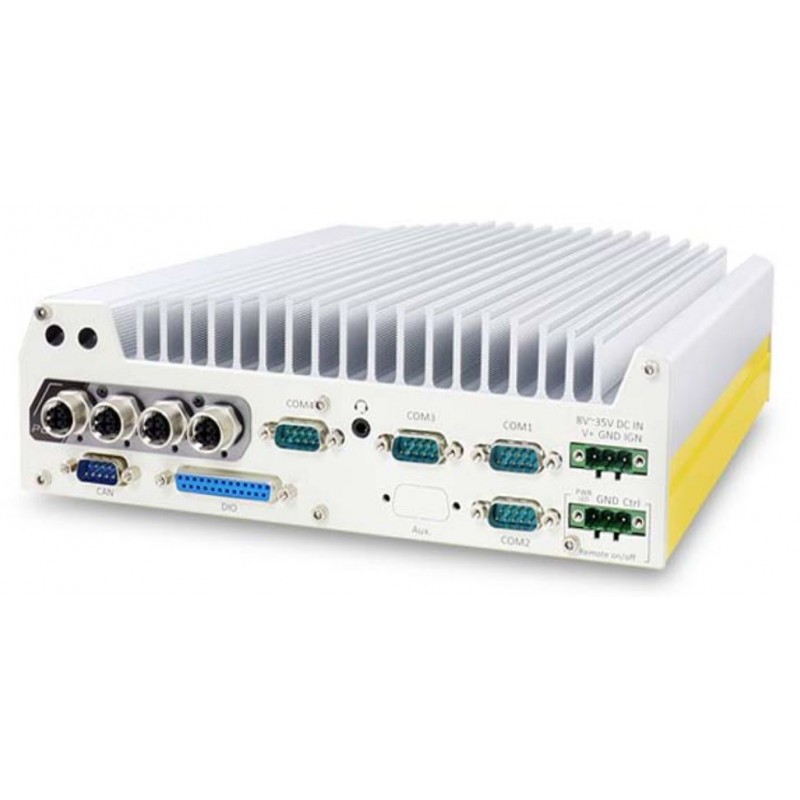

Embedded E-MARK, fanless embedded computer, EN50155 certification with 4x M12 PoE+ ports, DIO, CAN bus and RAID GEN 8/9

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE + ports via M12 or RJ45 connectors (To be specified when ordering)
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control

EPC-CAR-GEN8
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

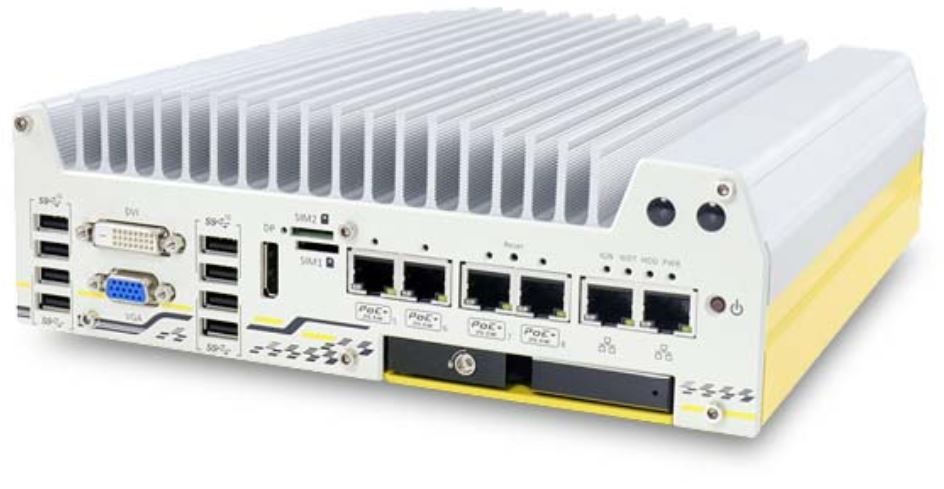

latest rugged in-vehicle controller featuring purpose-built set and effortless connectivity, powered by Intel® 8th / 9th-Gen Core ™ processors with up to 8-core / 16-thread architecture and 64GB DDR4 memory that gets significant performance increase over previous generations for versatile in-vehicle applications.

The PCprovides flexibility to support a range of peripherals and connections. It offers four or eight 802.3at PoE + ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on computer I/Os like Gigabit Ethernet, USB3.0 and USB3.1 to guarantee extreme rugged connectivity in shock / vibration environments. Wireless connectivity is essential for modern day in-vehicle applications and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 3G / 4G, WIFI, GPS, and CAN module for communication. Additionally, there is a 4G cellular module option that is certified to work with renowned US telecommunications company which can save you implementation time and cost.

On top of all that, it also features isolated CAN bus for in-vehicle communication, isolated DIO for sensor / actuator control, 8 ~ 35V wide-range DC input with ignition power control and is in compliance with E-Mark and EN 50155. The AiTEch embedded PC is the perfect solution with extraordinary reliability for various in-vehicle application needs.

CPU
Supporting Intel® 8th/ 9th-Gen CPU (LGA1151 socket, 65W/ 35W TDP) - Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE - Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE - Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE
Chipset
Intel® Q370 Platform Controller Hub
Chok/Vibration
Operating, MIL-STD-810G, Method 514.6, Category 4 Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Digital I/O
4x isolated DI and 4x isolated DO
Dimensioner
240 mm (W) x 225 mm (D) x 84 mm (H)
Driftstemperatur
-40°C ~ 70°C For sub-zero operating temperature, a wide temperature HDD/SSD is required, For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C
Forsyning
1x 3-pin pluggable terminal block for 8~35V DC input (IGN/ GND/ V+) Remote Ctrl. & Status Output 1x 3-pin pluggable terminal block for remote control and PWR LED output
Grafik
Integrated Intel® HD Graphics 630, 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Hukommelse
Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
Interface
1x isolated CAN 2.0 port
Luftfugtighed
10%~90% , non-condensing
Lyd
1x mic-in and 1x speaker-out
M.2
2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
Montering
patented damping bracket (standard) or optional DIN-rail mounting
mPCIe
1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets

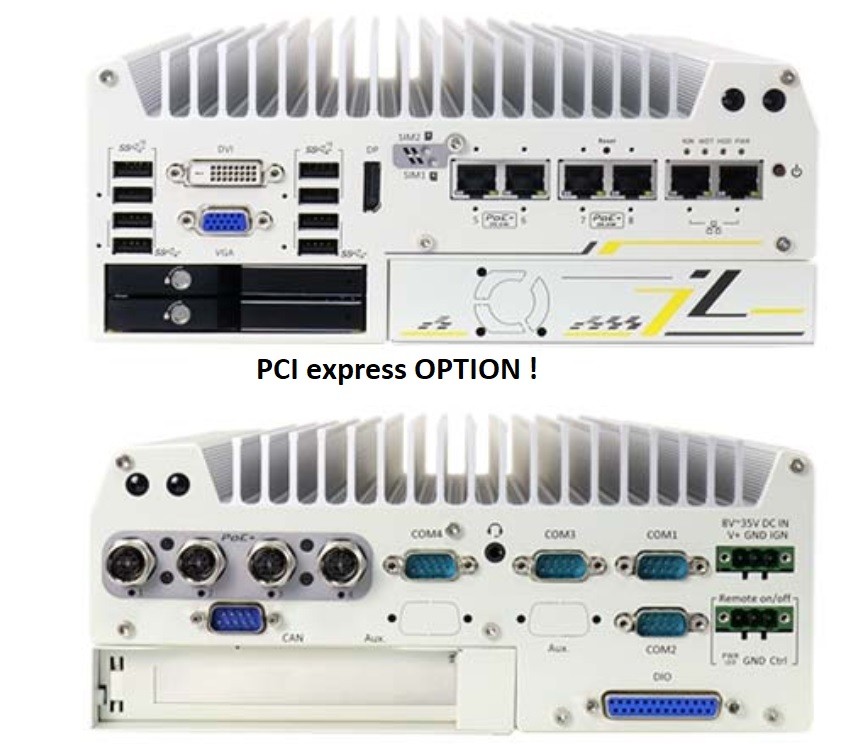

PCI
Option ! NOT INCLUDED!
Porte
2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
Storage
1x hot-swappable tray for 2.5" SSD, 1x Internal SATA port for 2.5" SSD installation, supporting RAID 0/ 1 mSATA, 1x full-size mSATA port (mux with mini-PCIe) M.2, 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
Udgange
1x VGA, supporting 1920 x 1200, 1x DVI-D connector 1920 x 1200 resolution 1x DisplayPort connector 4096 x 2304 resolution
USB
4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports
Weight
3.3 Kg
