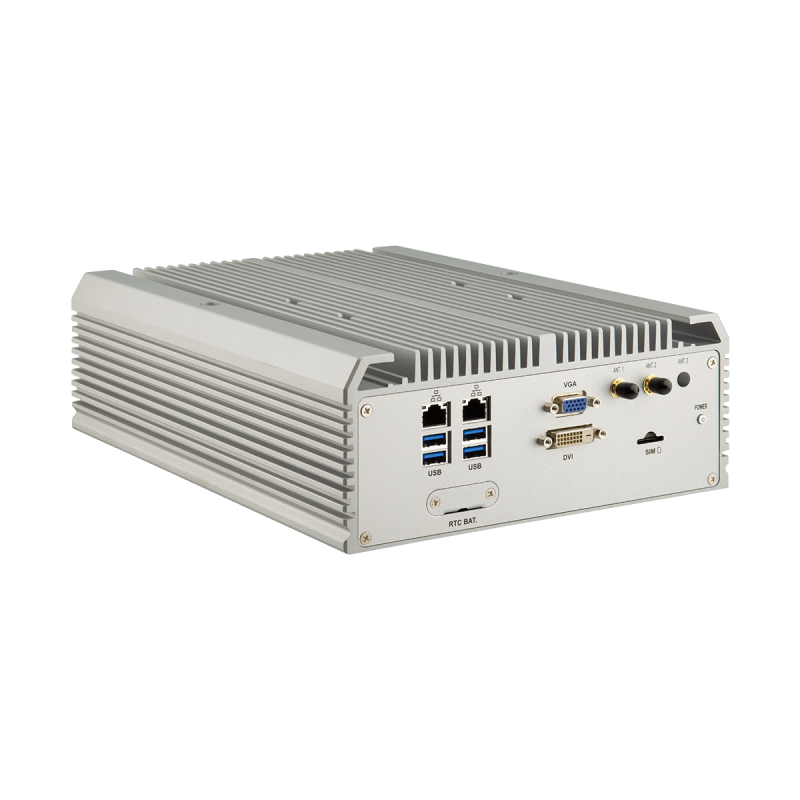

Embedded PC EN-50155 Certified for Railway use, Xeon, I3,I5,I7 CPU sypport, 6xEthernet, 4x USB, VGA, DVI-D

Supports 10th Gen Intel® Core™ Desktop processors
AI solution for Transportation
Max. 128GB RAM
2x Gbit Lan M12
4x USB
2x SIM Slot
2x 2.5" SSD , RAID 0/1/5
1Xmicro SSD
1x HDMI
1x DVI-D
1 x RS-485, 1 x RS232/485 Isolated
M12 connectores
Up to 10x GbE ports (8x with PoE capability)
10G LAN (need to be ordered special)
Supports Intel® Movidus Vision Acceleration M.2 modules
Supports Wi-Fi 6 CNVi, dual WWAN channels
1x USB Type-C with graphics output for quick setting and diagnostics
EN50155 (2021) / EN45545-2 certified

EN50155 certification and IP67 rating
Fanless and ruggedized design
Robust M12 connectors for dual GbE, USB and power input
Dual SIM sockets support WWAN redundancy
Rich I/O interfaces for wireless, SSD, GPS, WWAN
Ignition power control
Wide-range voltage GPIO interface

Supports 9/8th Gen Intel® Xeon® and Core™ Octa/Hexa-core CPU
1x HDMI /1x DP /1x DVI-I (4K/2K UHD Resolution)
2x 2.5" Hot Swap SATA HDD/SSD Tray, 3x mSATA Socket
2x USB 3.1 (Type-A), 6x USB 3.0(Type-A)
1x M.2 E Key Socket (CNVi), 3x Full-size Mini-PCIe Socket, 1x SIM Card Socket
2x RJ45 GbE LAN Intel® I219-LM and Intel® I210
Wide Operating Temperature -40°C to 70°C
E-Mark: E13 No.10R-0515210), LVD EN62368-1, EN50121-3-2
9~48VDC via 3-pin Terminal Block

Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x 802.3at Gigabit PoE + ports via RJ45 connectors
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control
